Code 71 - EGR System Malfunction (Es300 CALIF., SC300 Federal)
Code 71 - EGR System Malfunction (Es300 CALIF., SC300 Federal)

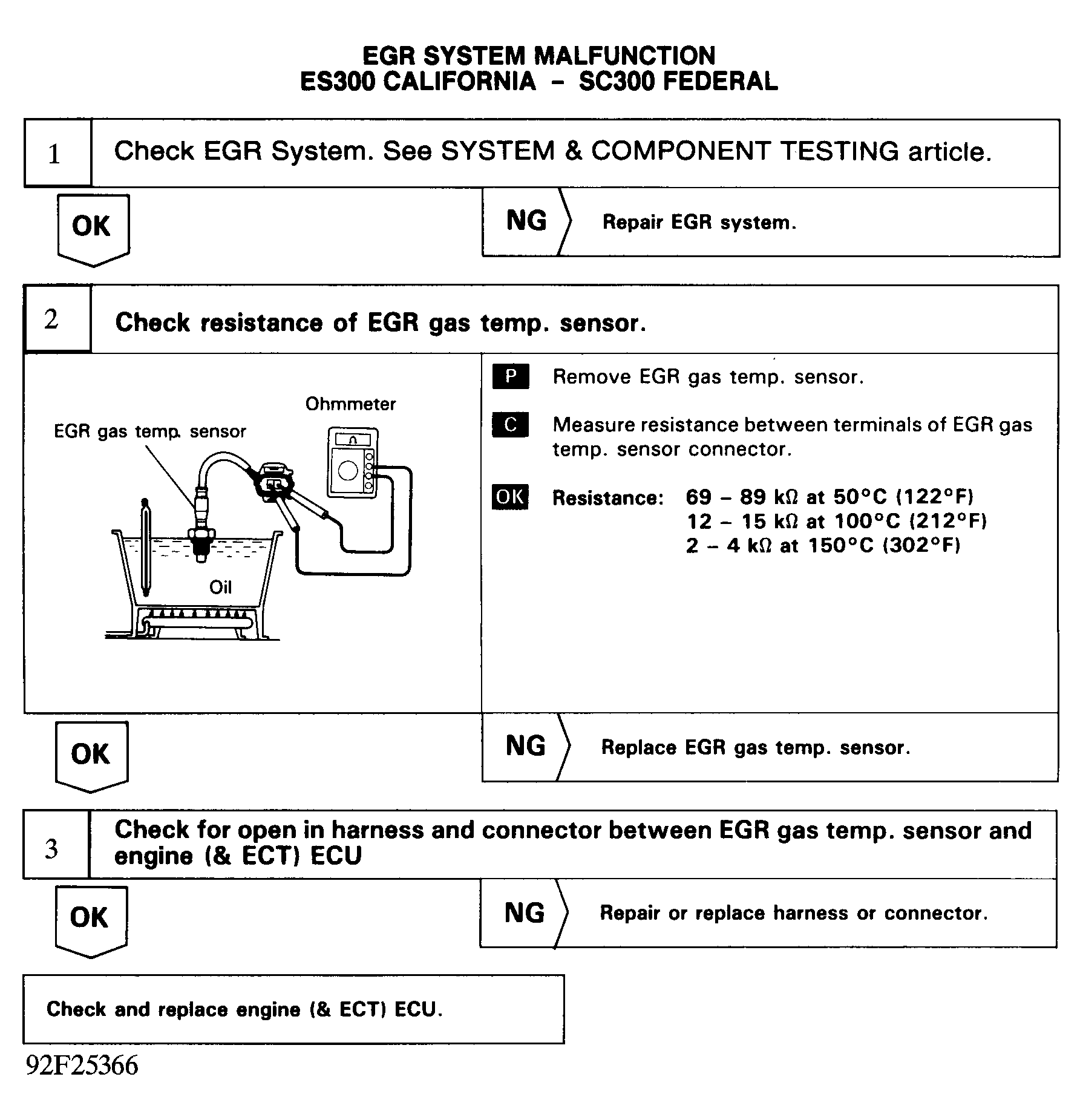

Fig 1: Code 71 Flow Chart - EGR System Malfunction (ES300 Calif., SC300 Federal)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
