Engine Controls - Tests W/Codes
›
Diagnostic Code Charts
›
Code 78 - Fuel Pump Control Circuit (SC300)
Code 78 - Fuel Pump Control Circuit (SC300)

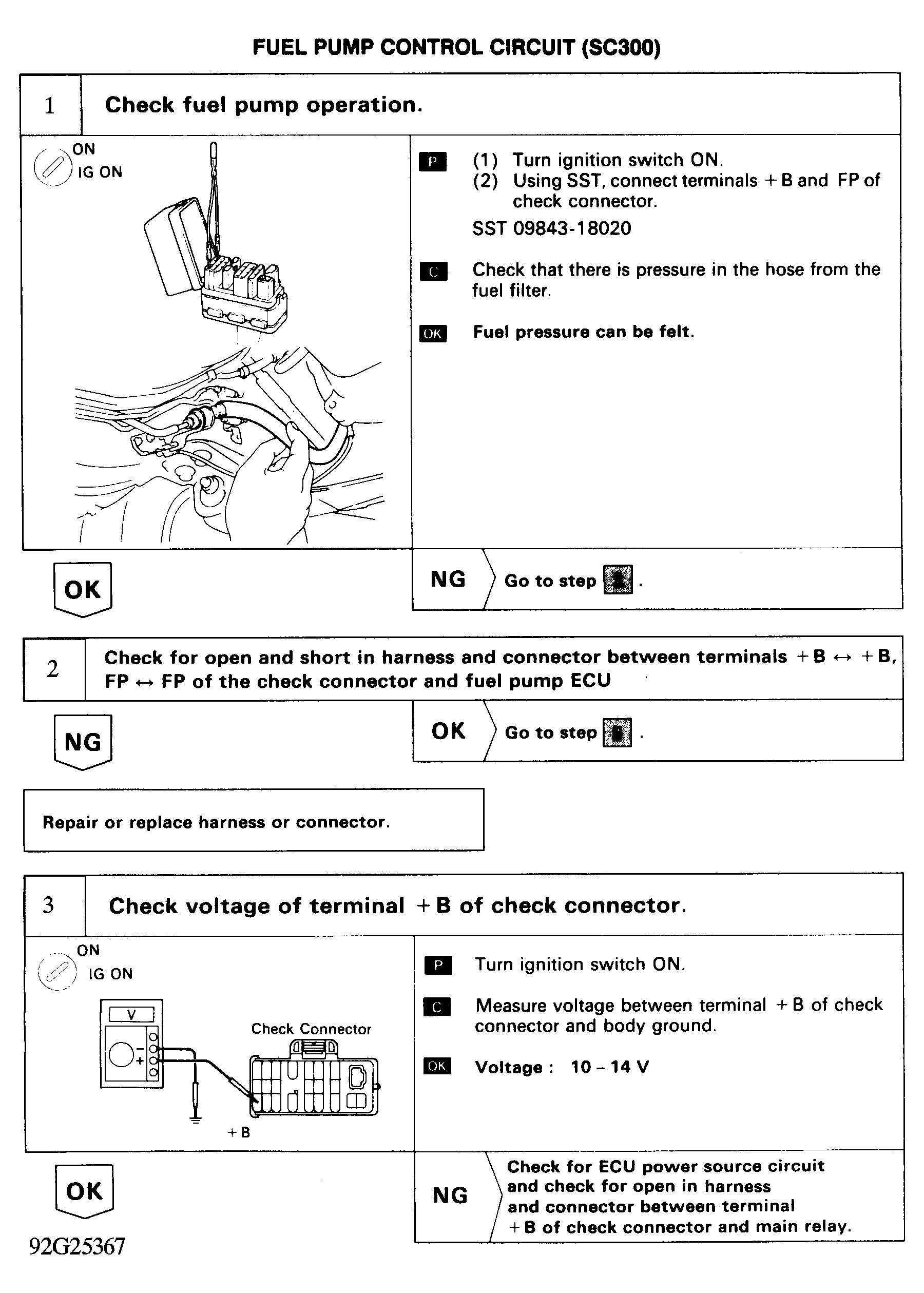

Fig 1: Code 78 Flow Chart (1 of 2) - Fuel Pump Control Ckt. (SC300)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Code 78 Flow Chart (2 of 2) - Fuel Pump Control Ckt. (SC300)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
