Switch Circuit

Disconnect the connector from the switch and inspect the connector on the wire harness side as shown in Fig 1.
If circuit is not as specified, inspect power source or wire harness.

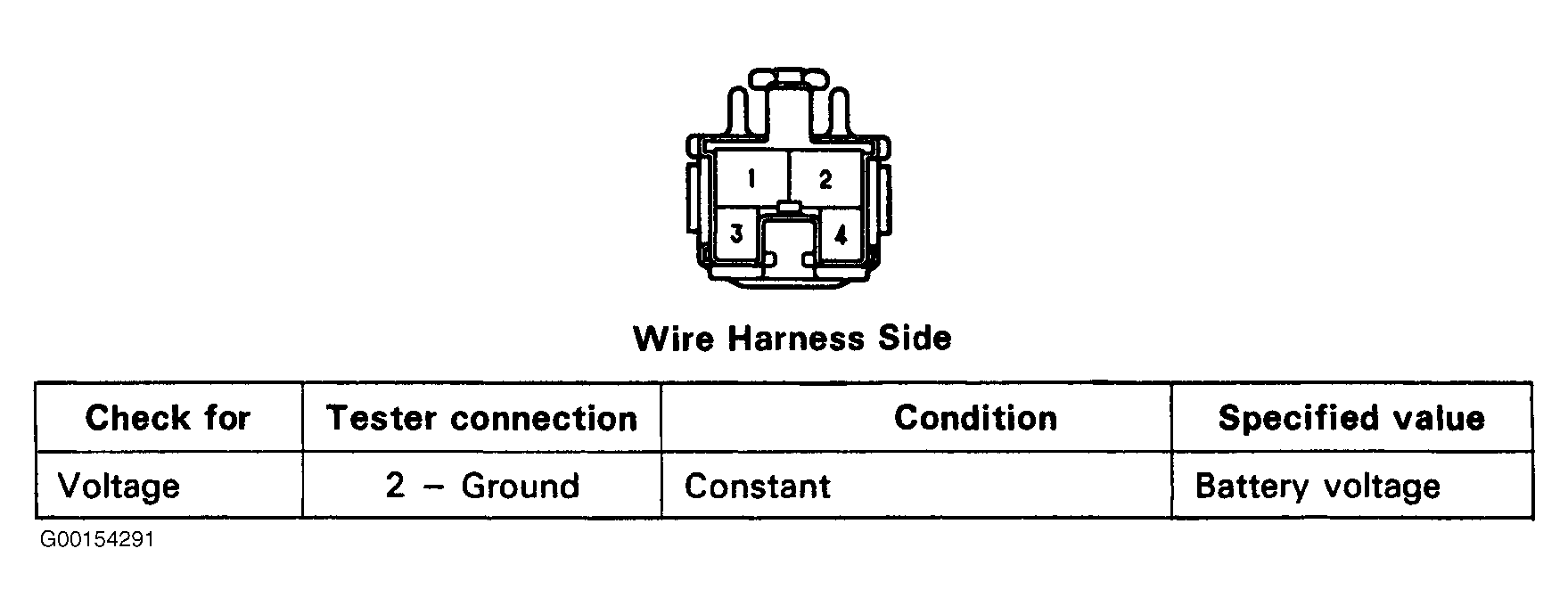

Fig 1: Testing Stop Light Switch Circuit

G00154291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
