Testing Switch Circuit
- Disconnect the switch connector and connect the seat wire harness to the floor wire harness.

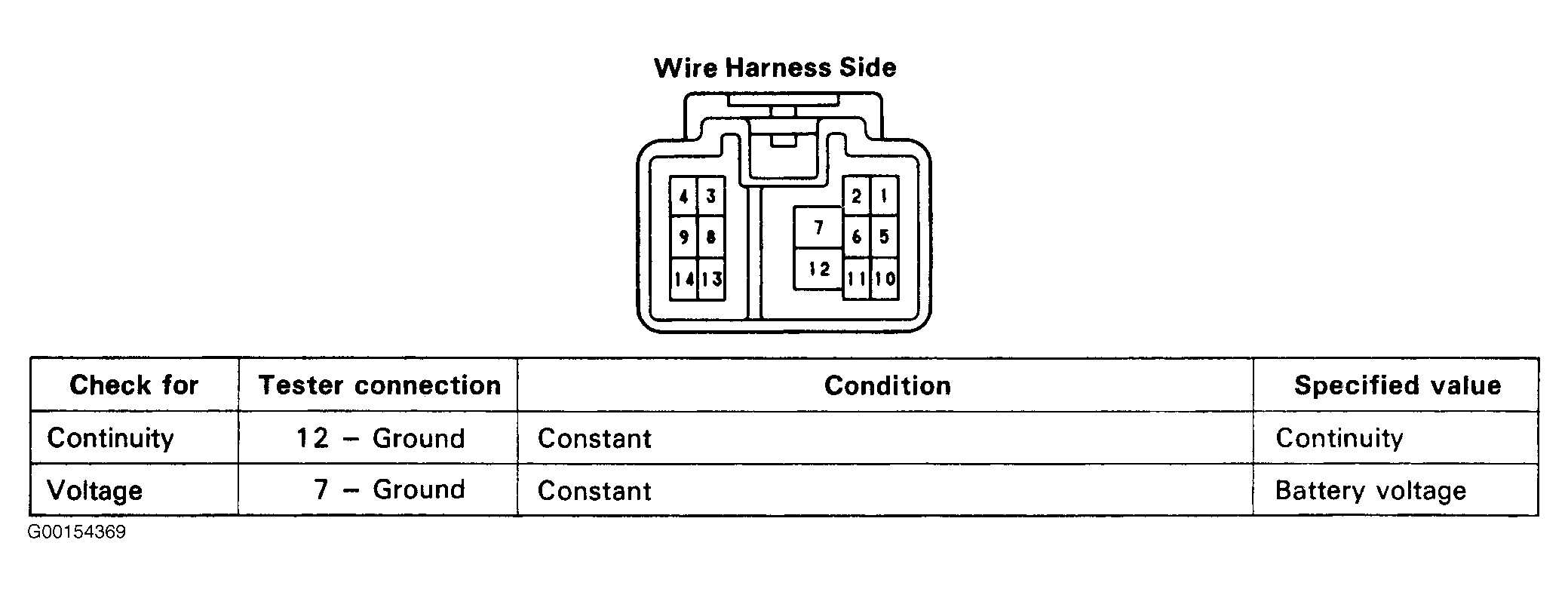

- Inspect the connector on the wire harness side as shown in Fig 1.
- If circuit is not as specified, inspect the circuits connected to other parts. See WIRING DIAGRAMS .
