Power Seat Control System

NOTE: The numbers in Fig 1 indicate the priority of testing procedures.

To trouble shoot power seat control system, see Fig 1.

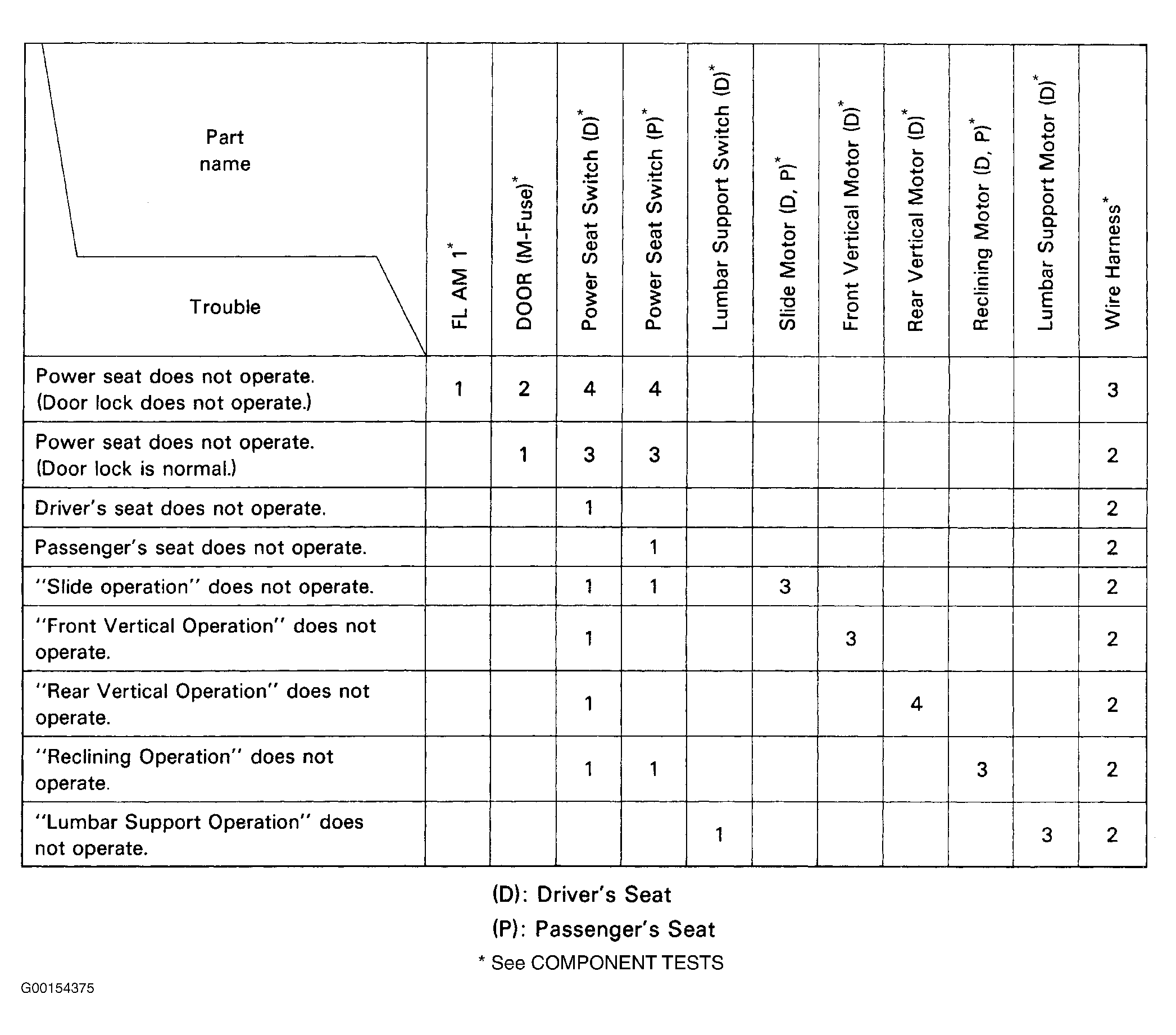

Fig 1: Trouble Shooting Power Seat Control System

G00154375

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
