Power Seats - With Memory
›
Circuit Tests
›
Test G: Position Sensor Circuit
›
Driver's Seat
Driver's Seat

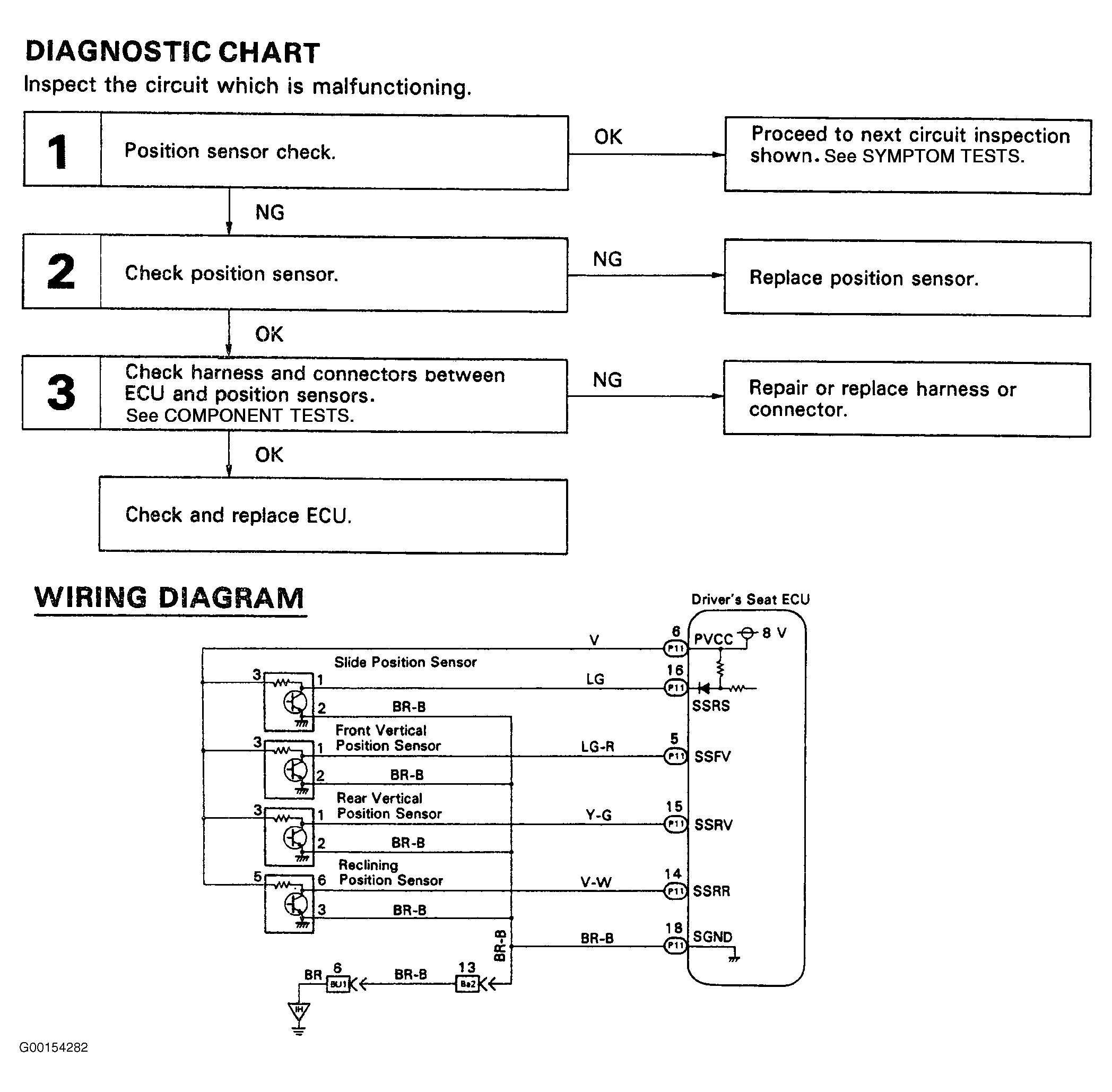

Fig 1: Test G: Position Sensor Circuit (Driver's Seat - 1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

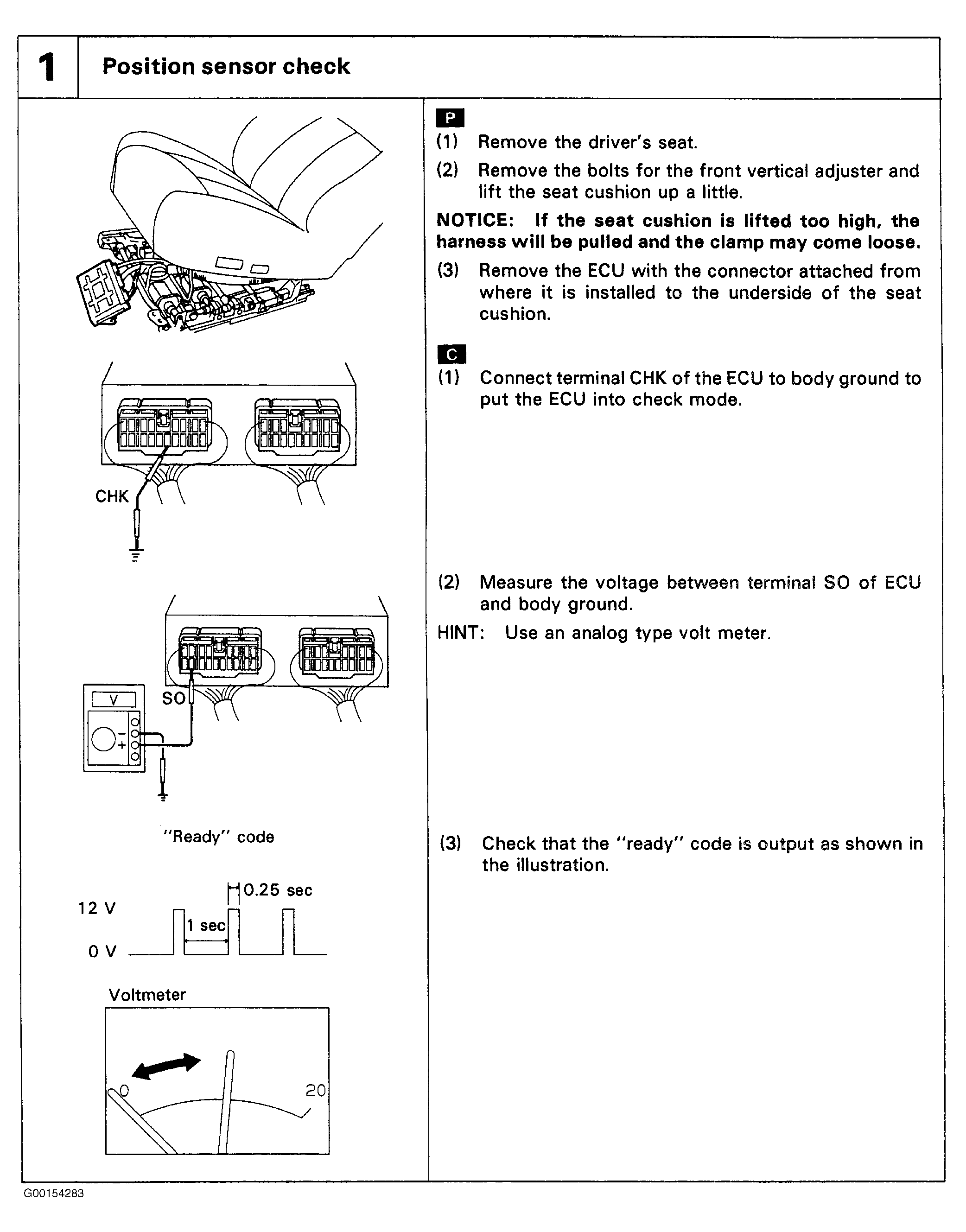

Fig 2: Test G: Position Sensor Circuit (Driver's Seat - 2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

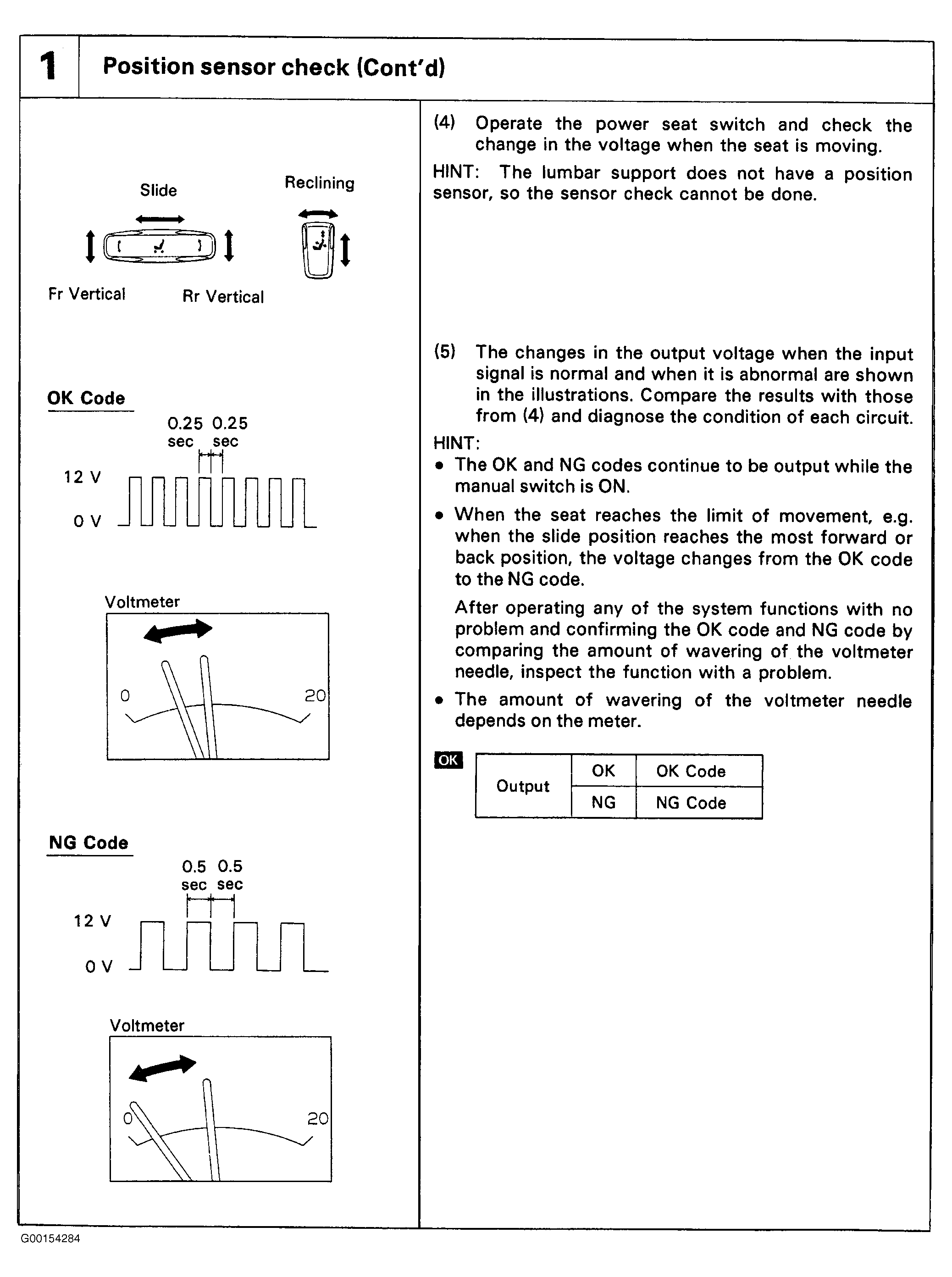

Fig 3: Test G: Position Sensor Circuit (Driver's Seat - 3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

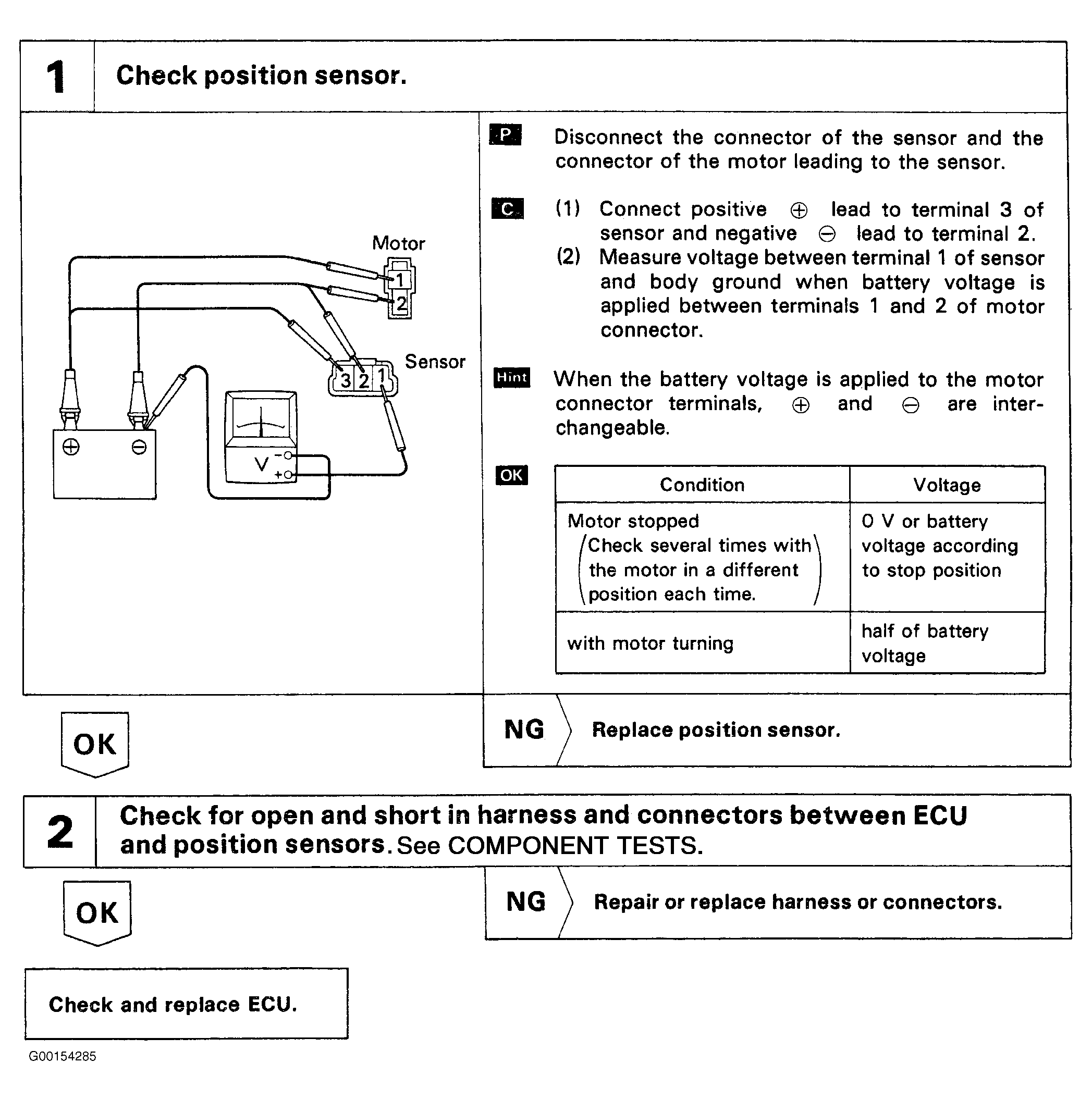

Fig 4: Test G: Position Sensor Circuit (Driver's Seat - 4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
