Seat Heater Switch: Indicator

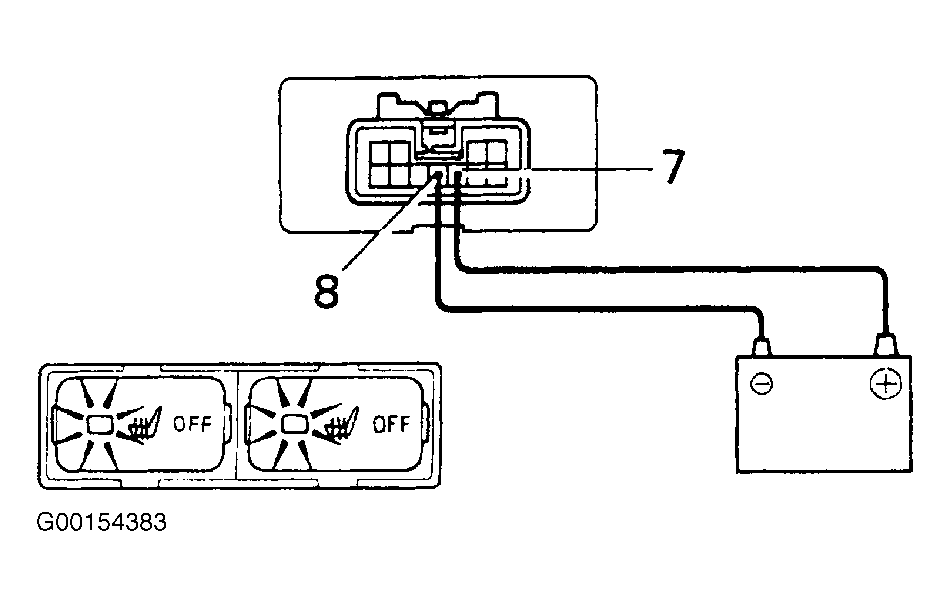

- Connect the positive (+) lead from the battery to terminal 7 and the negative (-) lead to terminal 8. See Fig 1.
- Push the switch, check that the indicator light lights up.
- If operation is not as specified, replace the switch.
