Switch Circuit

Disconnect the switch connector and inspect the connector on the wire harness side as shown in Fig 1.
If circuit is not as specified, see WIRING DIAGRAMS and inspect the circuits connected to other parts.

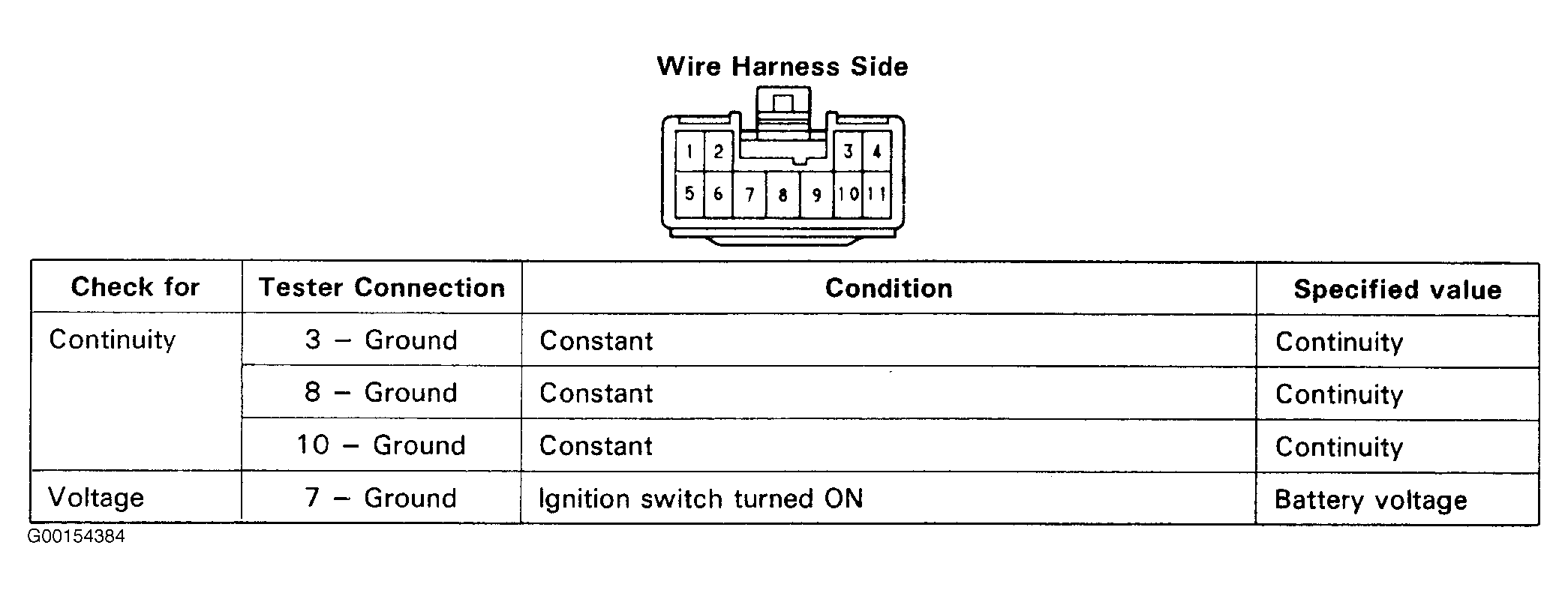

Fig 1: Testing Seat Heater System Switch Circuit

G00154384

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
