Stop Light Switch: Continuity

1. Inspect the switch continuity between terminals. See Fig 1.
2. If continuity is not as specified, replace the switch.

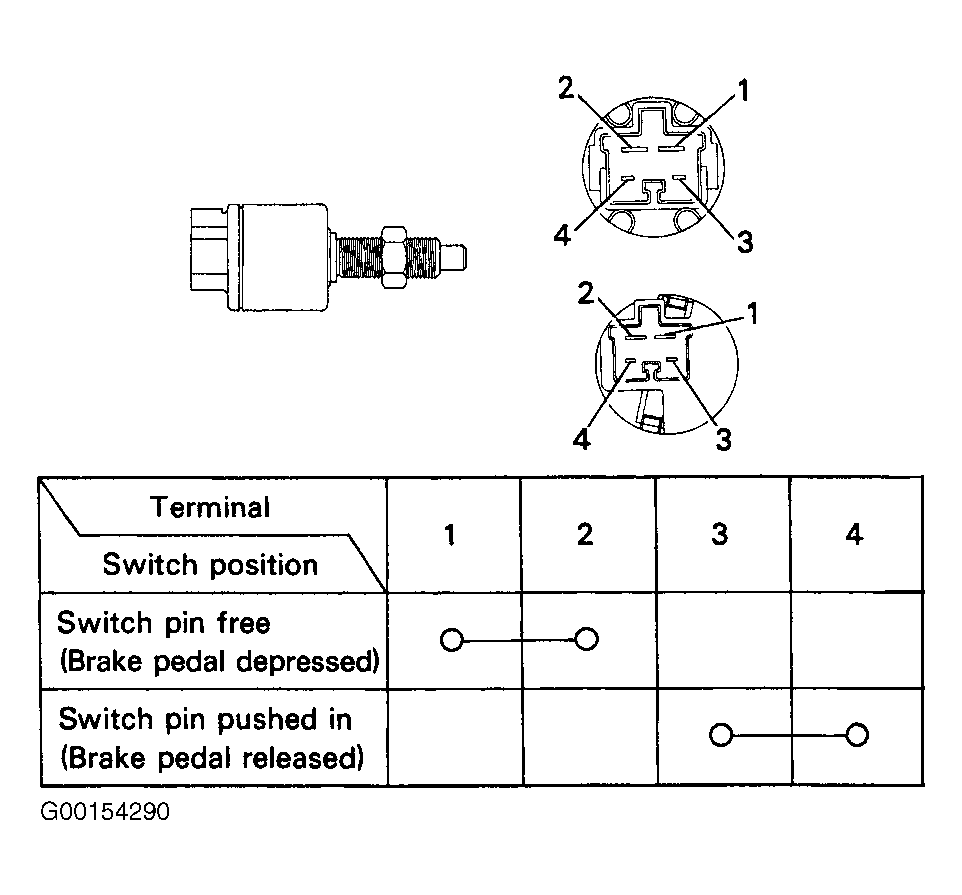

Fig 1: Testing Stop Light Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
