Reclining Front Limit Switch

This switch detects when the seatback is inclined fully forward and informs the ECU. See Fig 1.

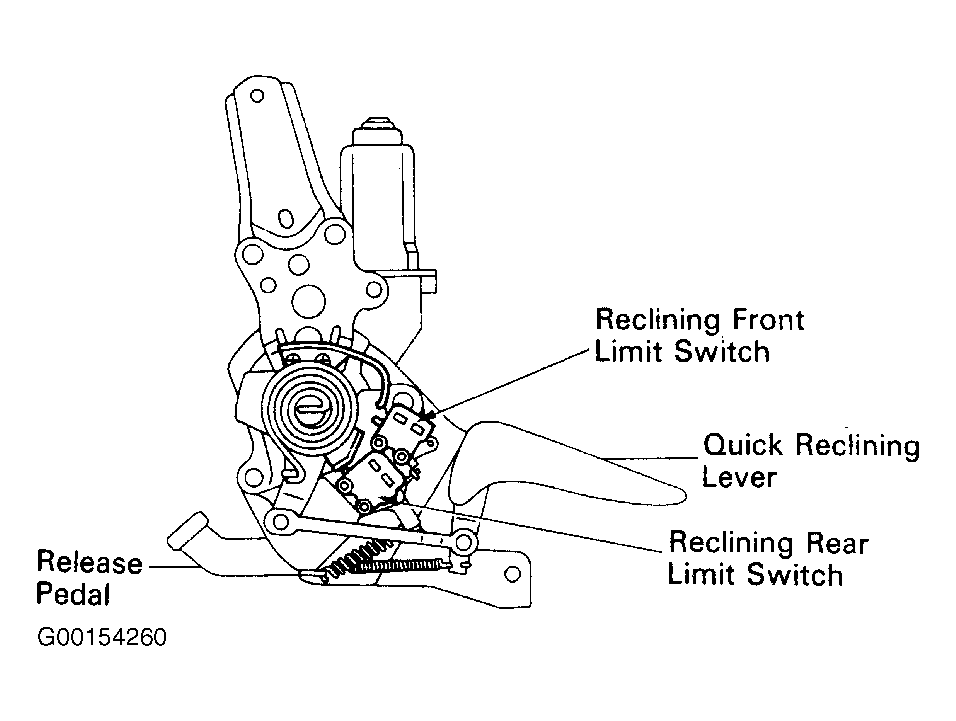

Fig 1: Description & Operation Of Reclining Front Limit Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
