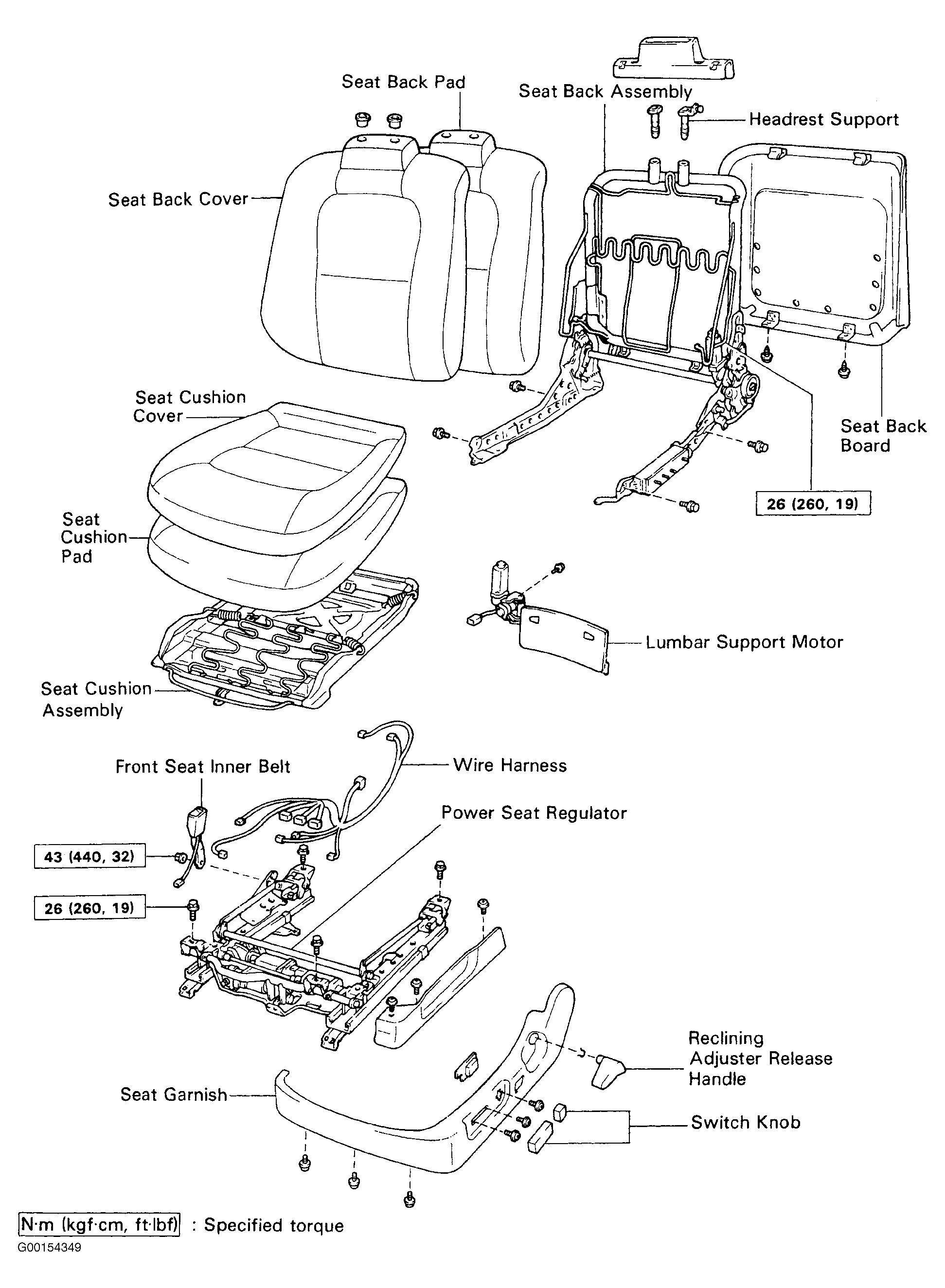

Power Seat: Disassembly
NOTE:
When using a screwdriver, be sure to tape the tip.
- Remove the seat garnish. Using a screwdriver, pull out the snap ring and remove the handle. See Fig 2.

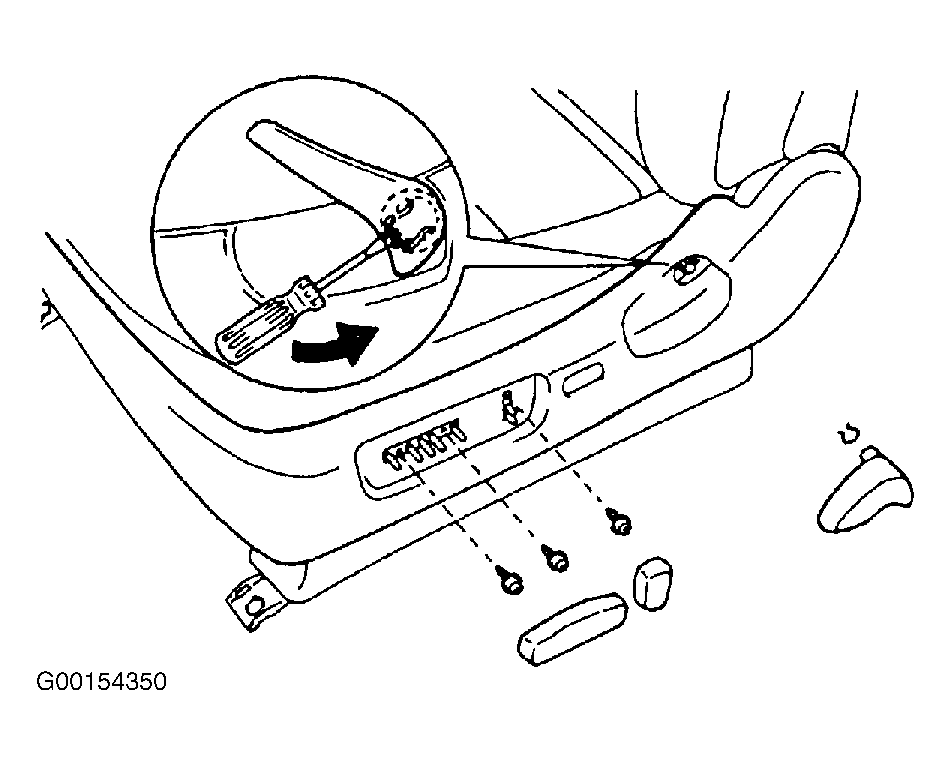

- Using the screwdriver, remove the two switch knobs and the three screws. See Fig 2.
- Remove the three screws from the lower side of the seat. See Fig 3.

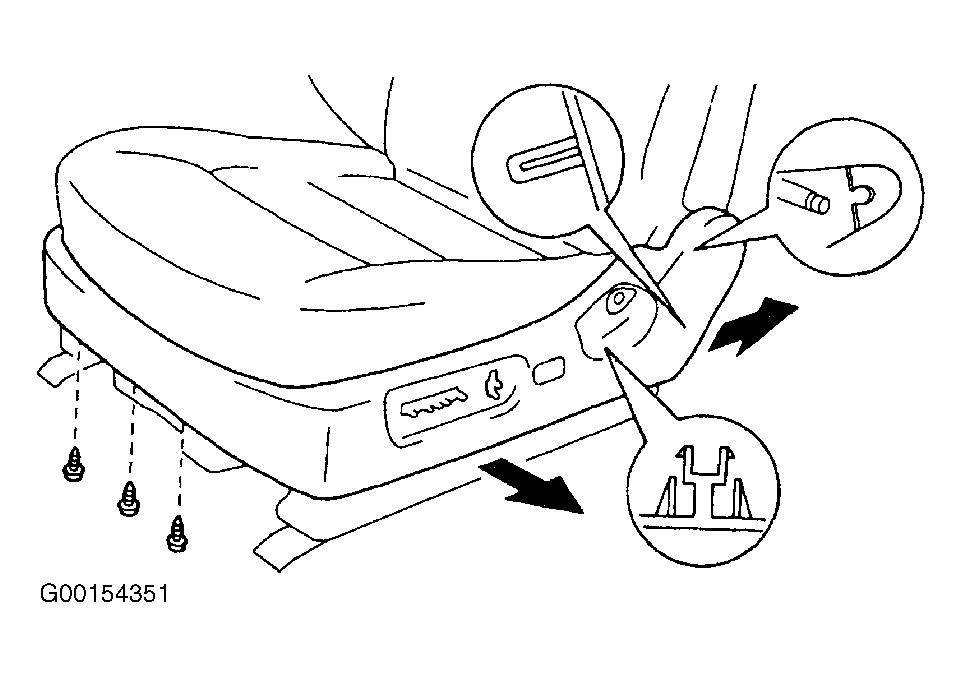

- Remove the garnish as shown in Fig 1 and Fig 3 .
- Disconnect the connector.
- Remove the seat back board. Remove the two screws. See Fig 4.
- Push the board as shown in Fig 4 with you hands.
- Slide the board upwards and remove it. See Fig 4.

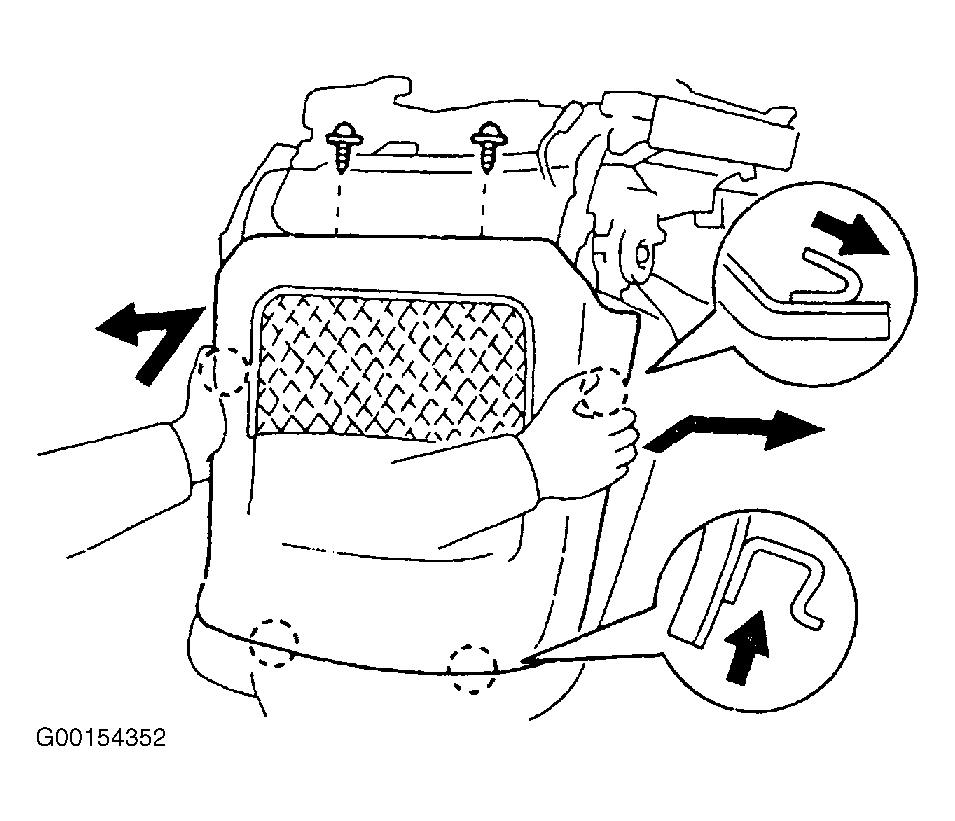

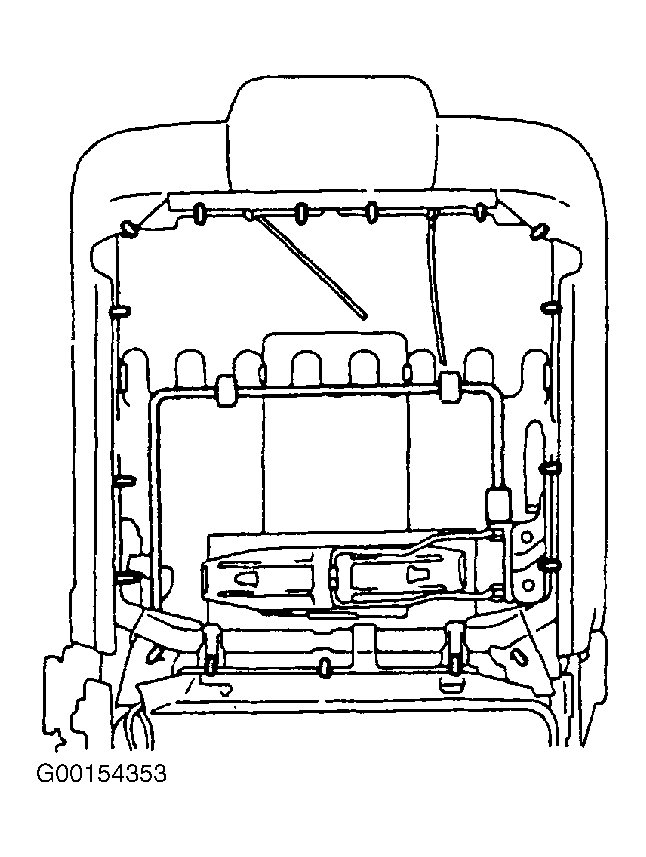

- Remove the seat back assembly. Using the screwdriver, remove the hog rings and disconnect the hooks from the seat back. See Fig 5.
- Disconnect the wire harness clamp.
- Disconnect the connector.

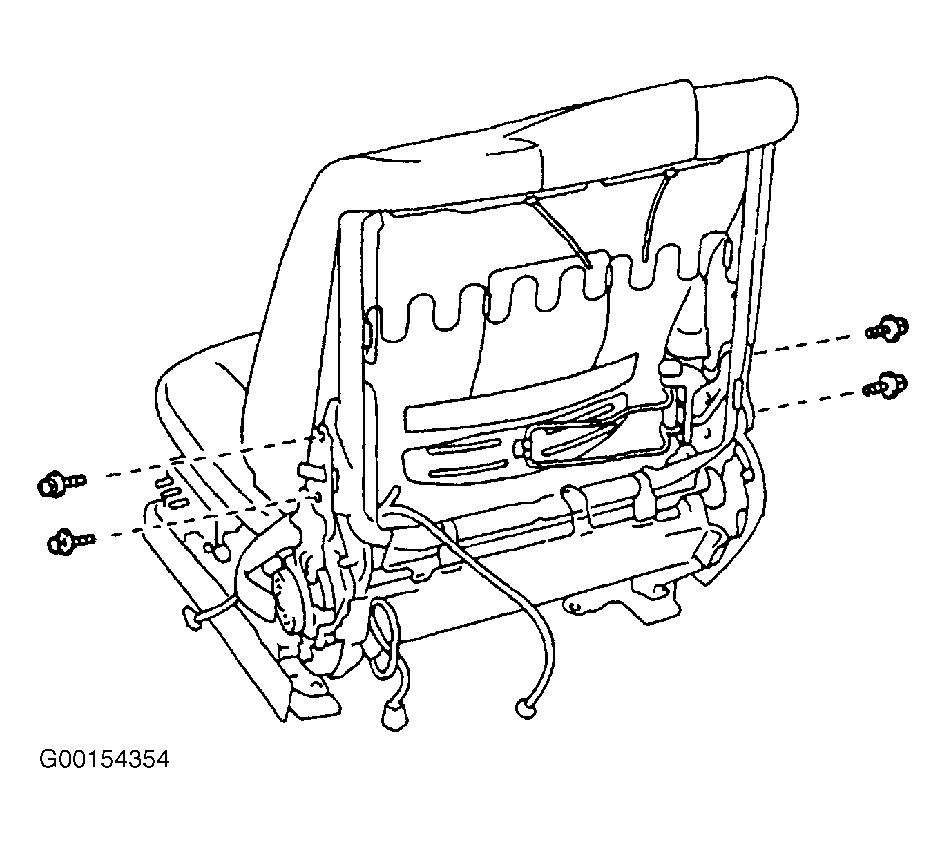

- Remove the four bolts and the seat back assembly. See Fig 6.

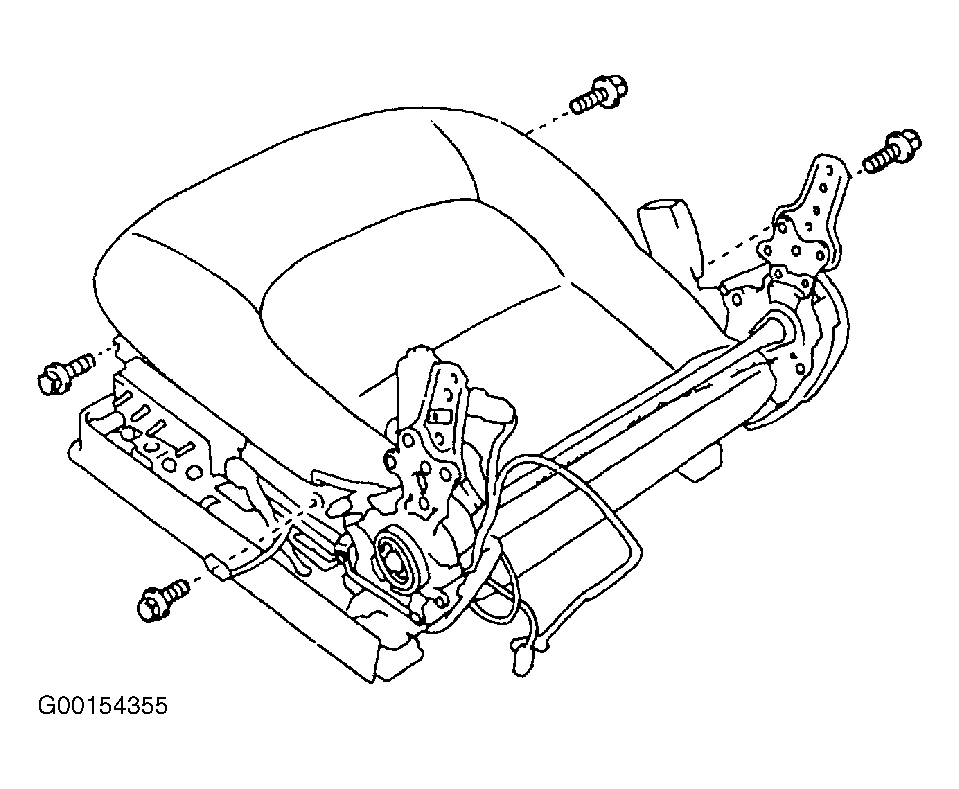

- Remove seat cushion assembly. Remove the four bolts shown in Fig 7.
- Disconnect the connectors.

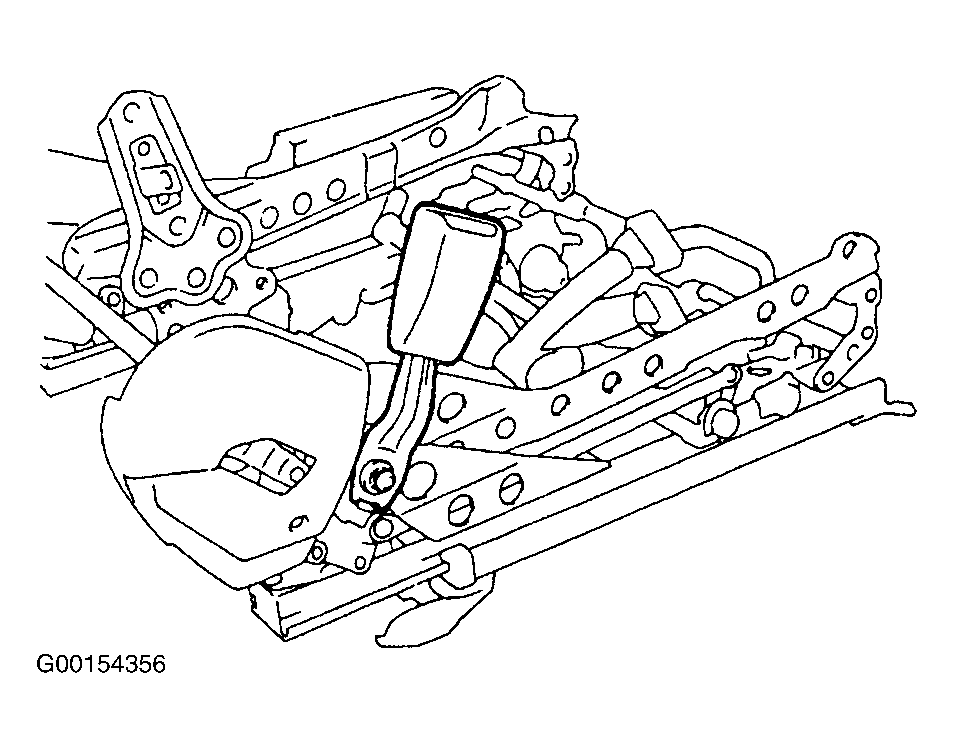

- Remove front seat inner belt. See Fig 8.
- Remove seat back cover. Remove the headrest grommets. See Fig 9.

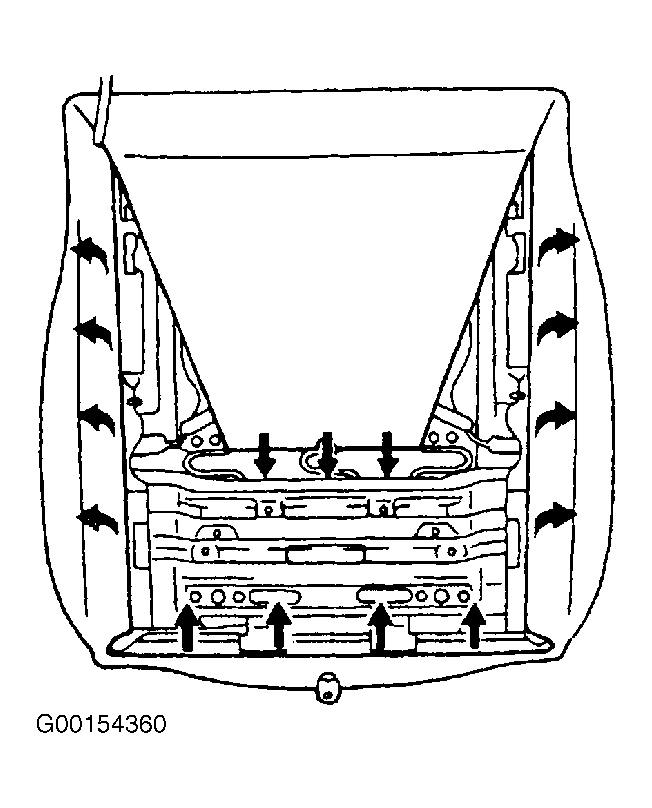

- Peel the seat back cover away from around the seat back cushion. See Fig 9.

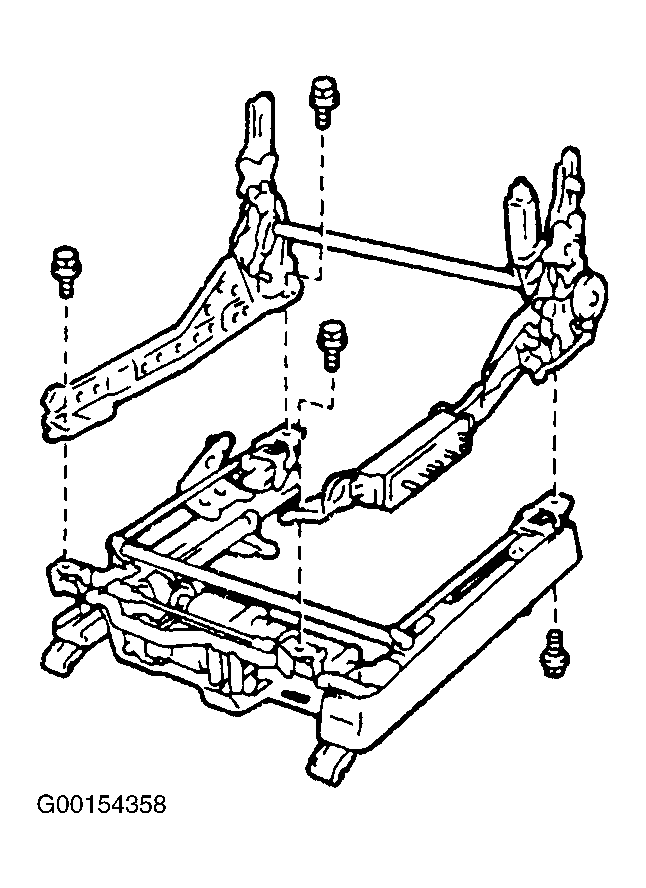

- Remove seat track. Remove the four bolts and the seat track. See Fig 10.

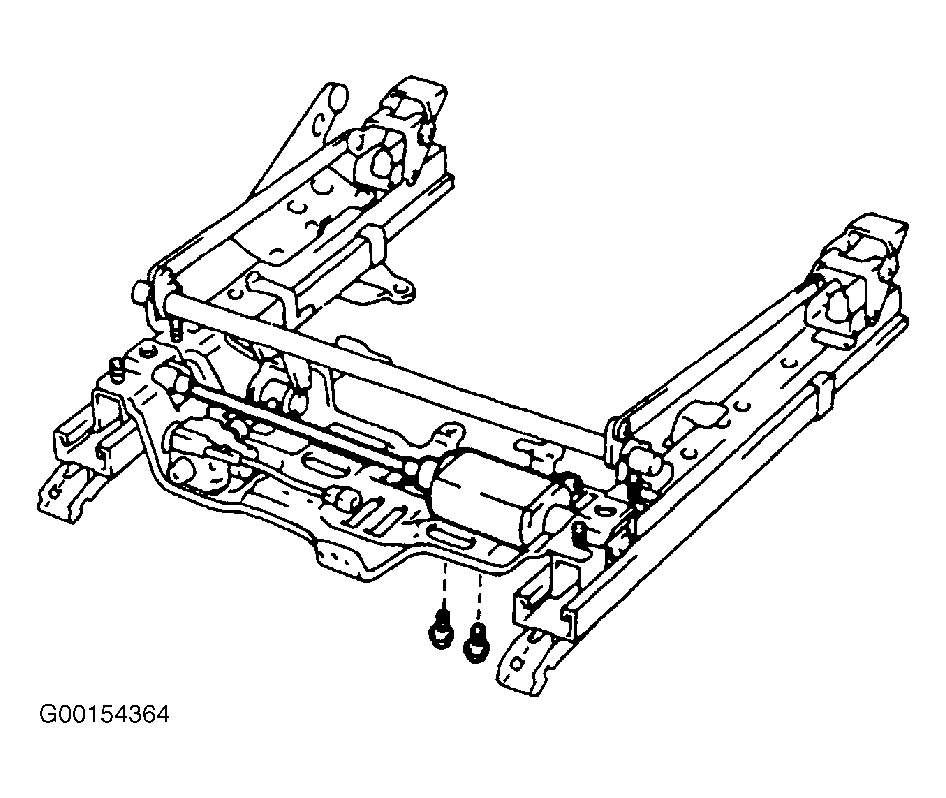

- Remove lumbar support motor. Remove the two bolts and the motor. See Fig 11.
- Remove the seat cushion cover. Peel the seat cushion cover away from around the edge of the seat cushion. See Fig 12.
- Remove the eight screws and vertical motors. See Fig 13 and Fig 14 .

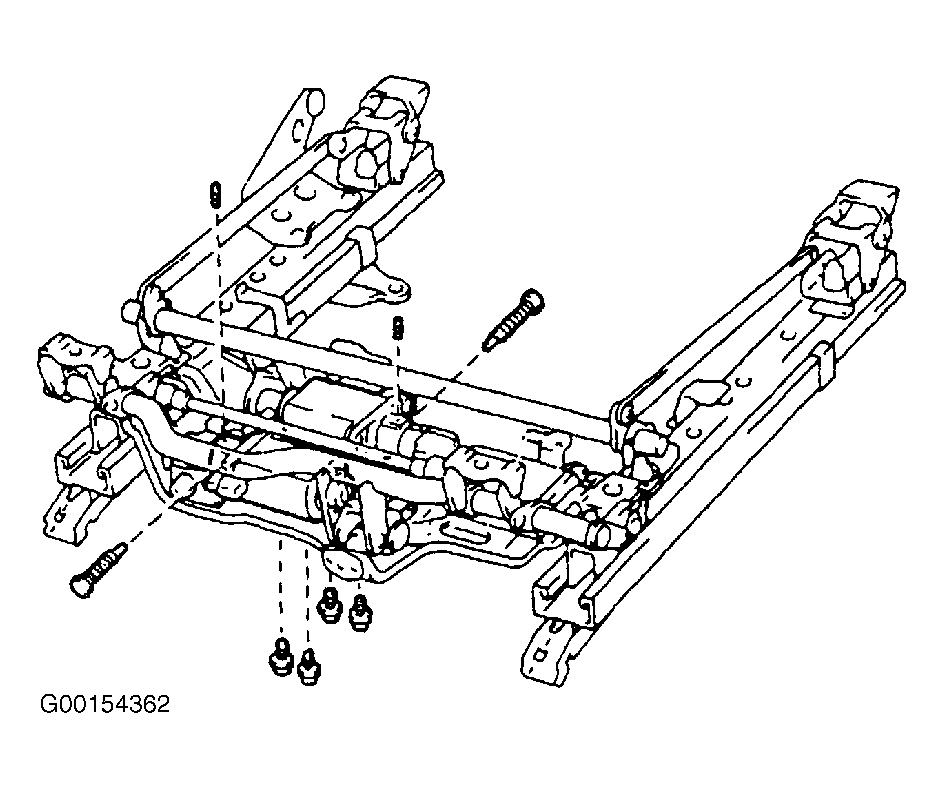

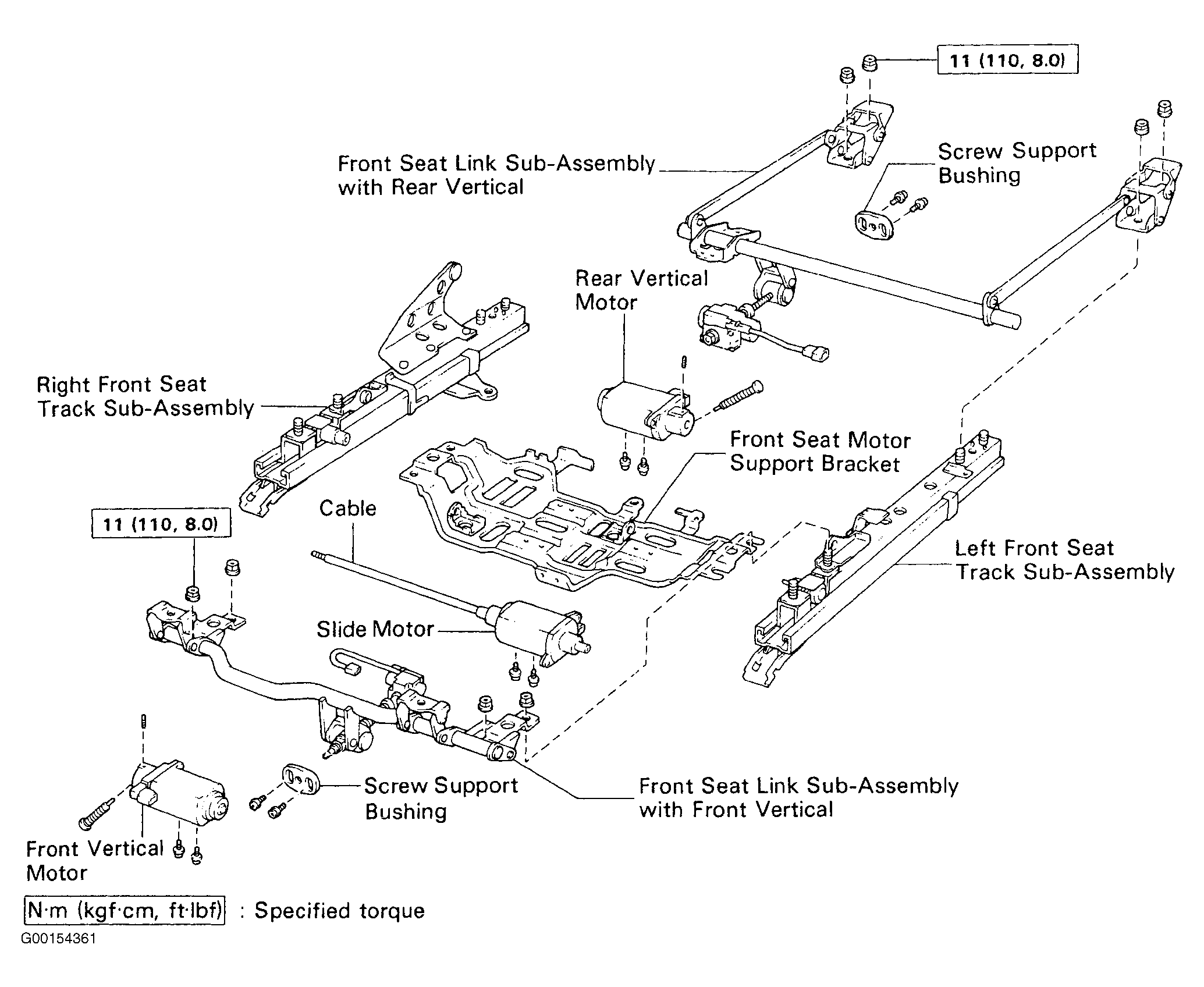

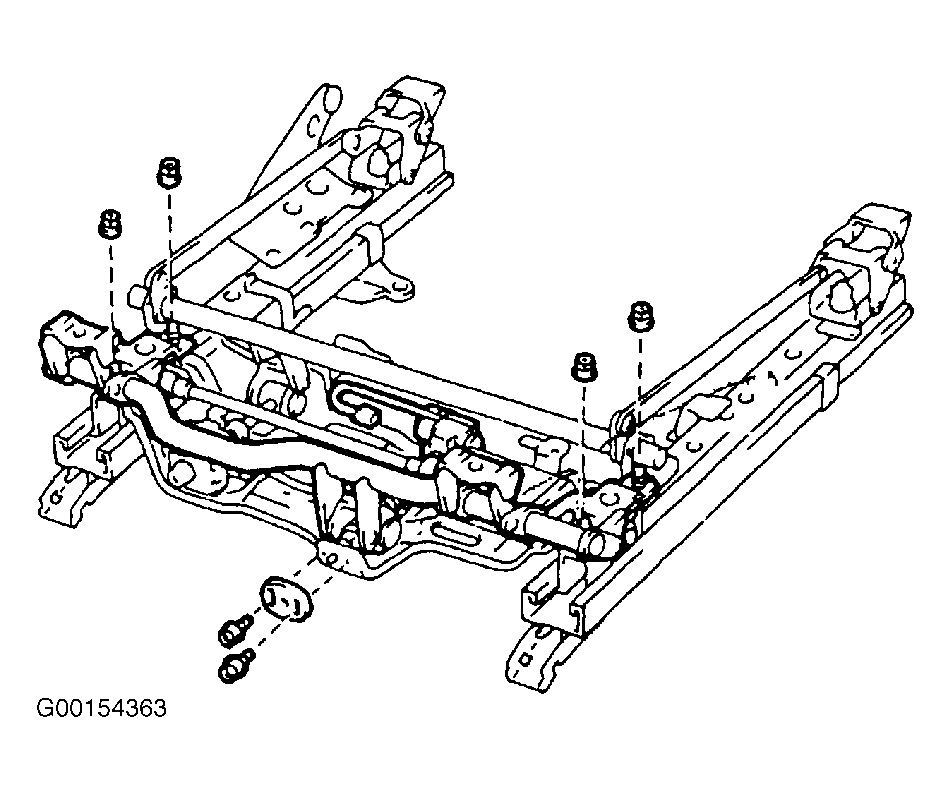

- Remove front seat link with front vertical motor. Remove the two screws and the screw support bushing. See Fig 15.
- Remove the four nuts and the link. See Fig 15.
- Remove slide motor. Remove the two screws and the motor. See Fig 16.
- Remove the cable. See Fig 16 .

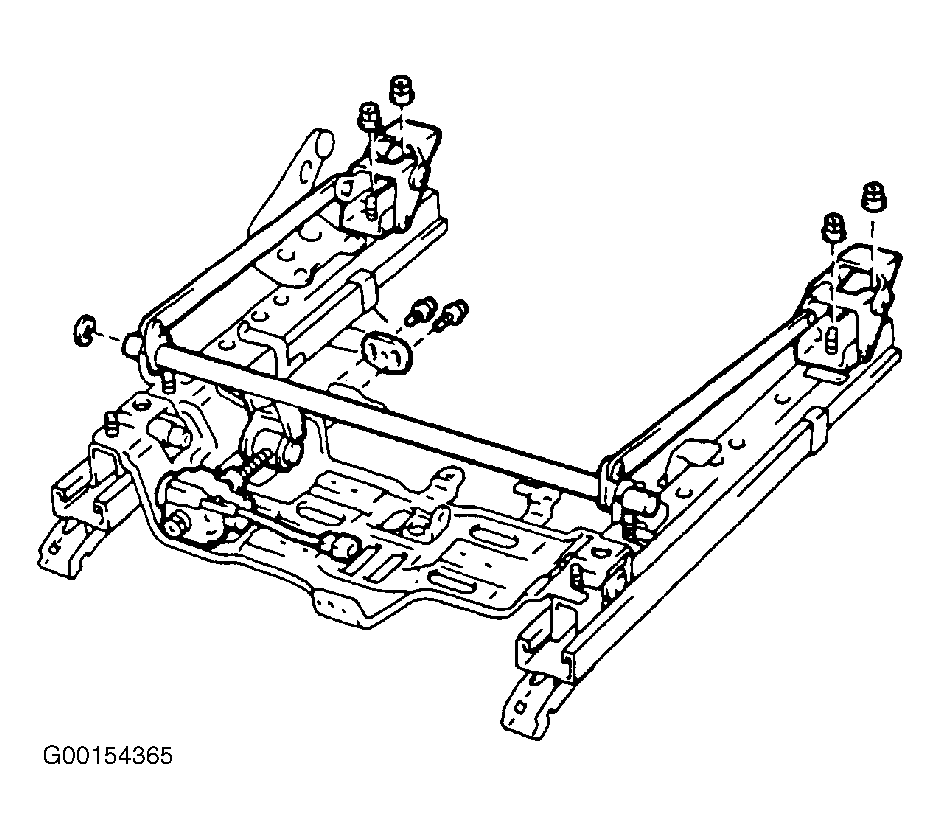

- Remove front seat link with rear vertical motor. Remove the two screws and the screw support bushing. See Fig 17.
- Remove the snap ring from the link. See Fig 17.
- Remove four nuts and the link. See Fig 17.

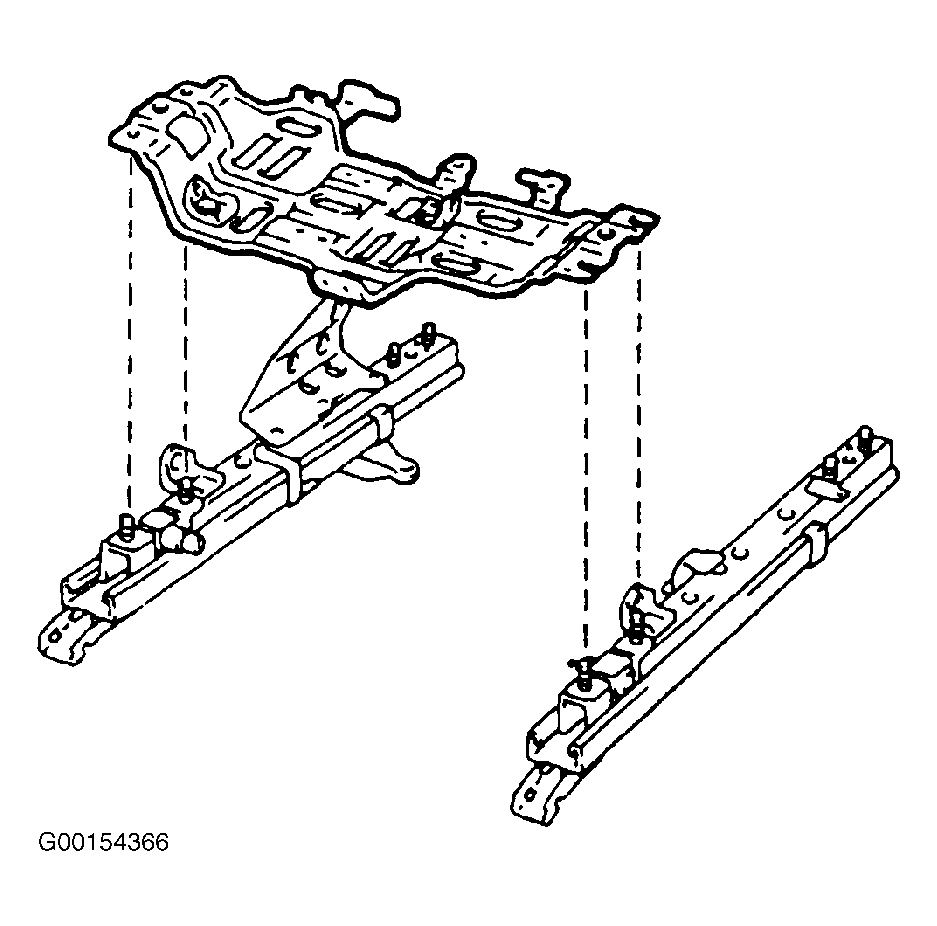

- Remove front seat motor support bracket. Remove the bracket from the front seat track. See Fig 18.
NOTE:
Do not damage the wire harness and connectors in the following steps.
