Code 13 - Rpm Signal Circuit No. 2
Code 13 - Rpm Signal Circuit No. 2

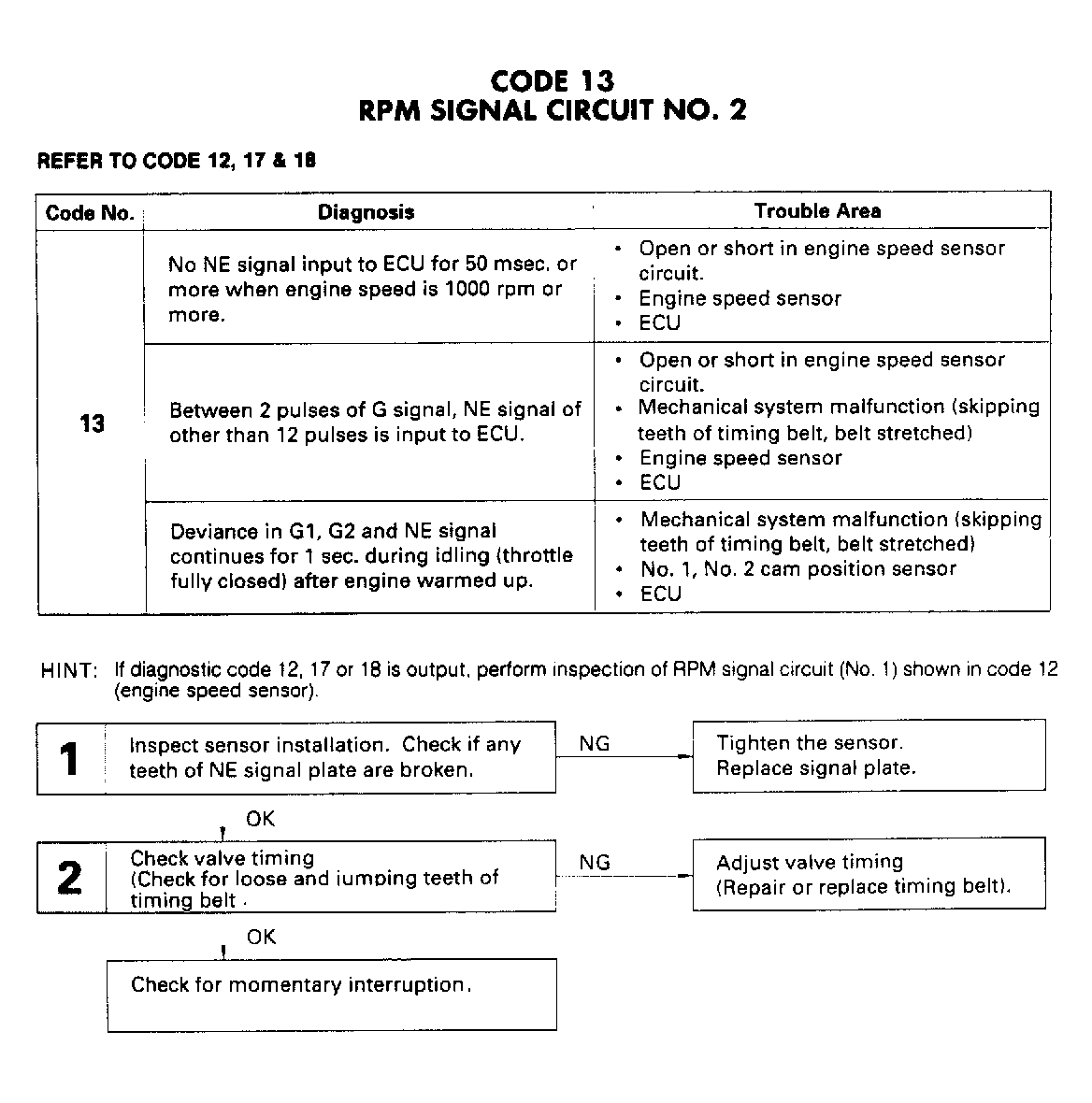

Fig 1: Code 13 Flow Chart - RPM Signal Circuit No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
