Code 51 - Switch Condition Signal (SC400)

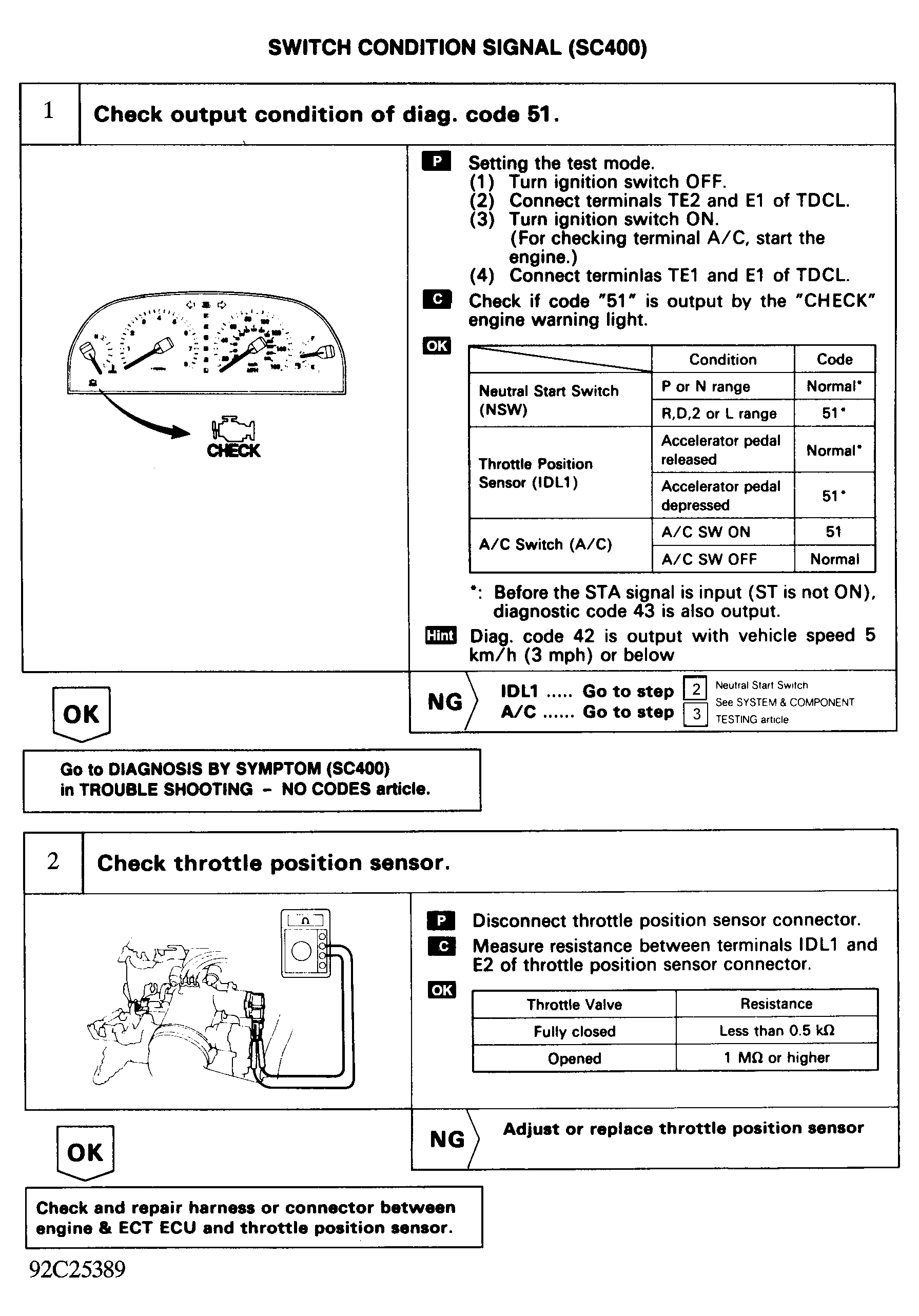

Fig 1: Code 51 Flow Chart (1 of 2) - Sw. Condition Signal (SC400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

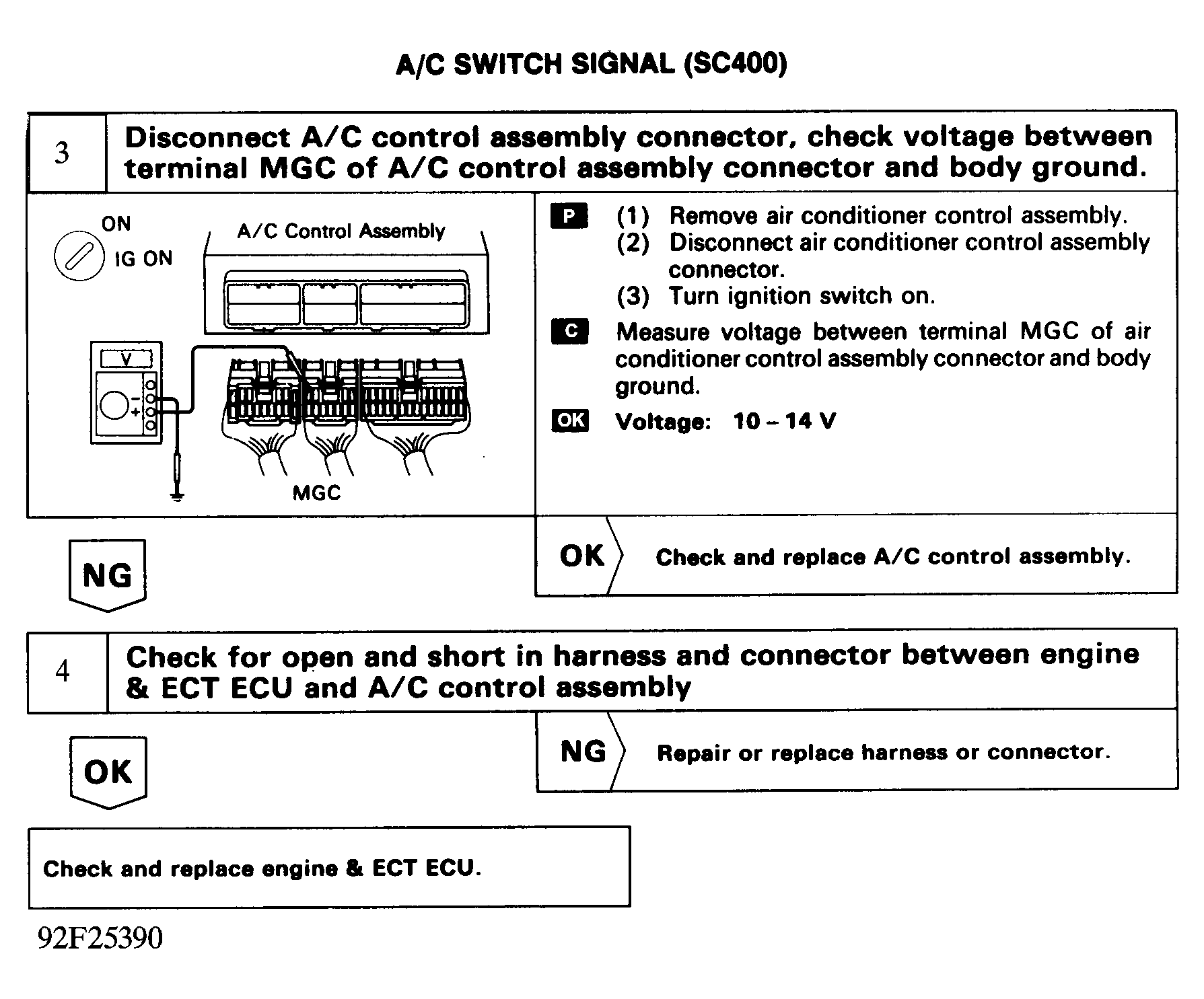

Fig 2: Code 51 Flow Chart (2 of 2) - Sw. Condition Signal (SC400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
