Code 71 - EGR System Malfunction (SC400)

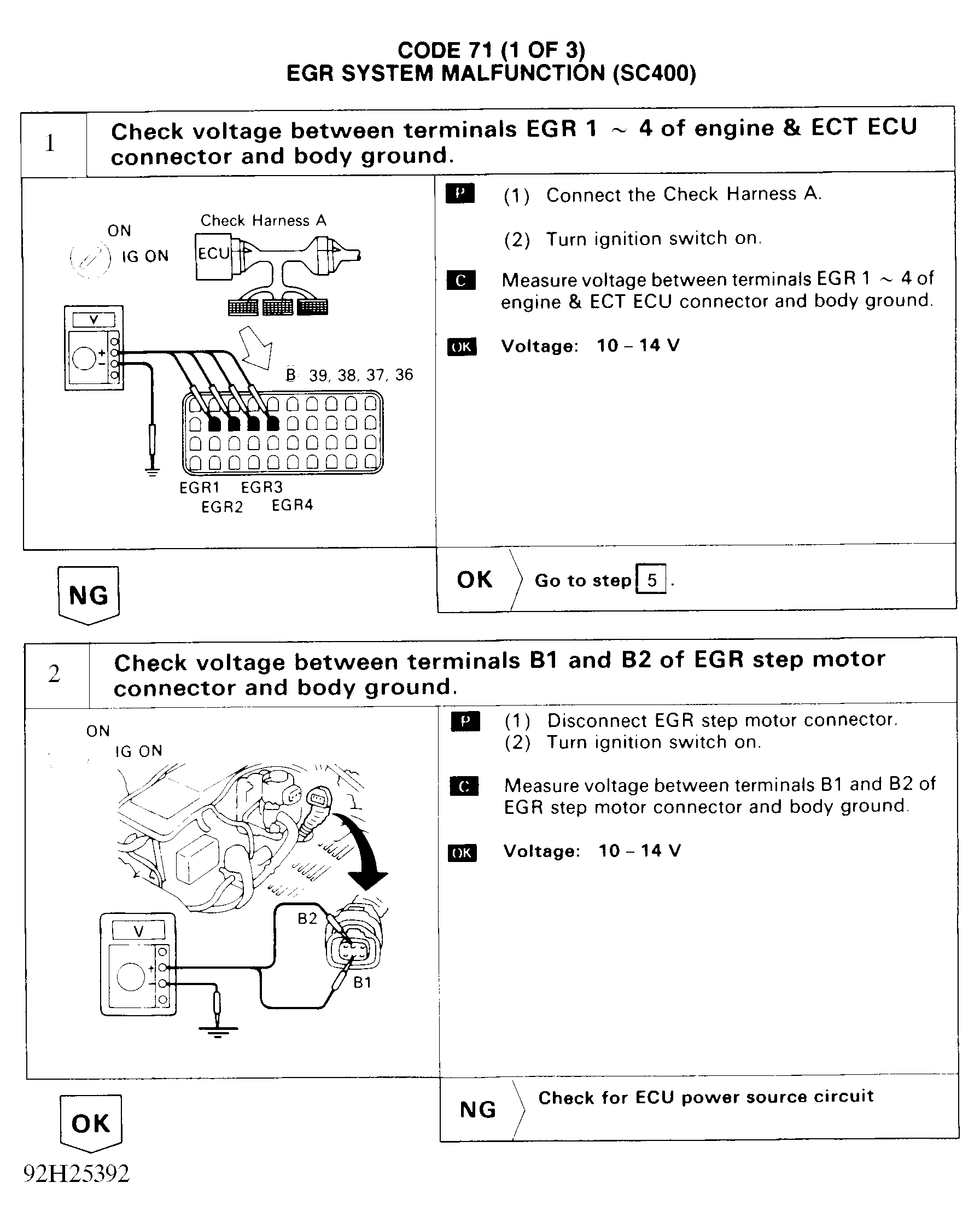

Fig 1: Code 71 Flow Chart (1 of 3) - EGR System Malfunction (SC400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

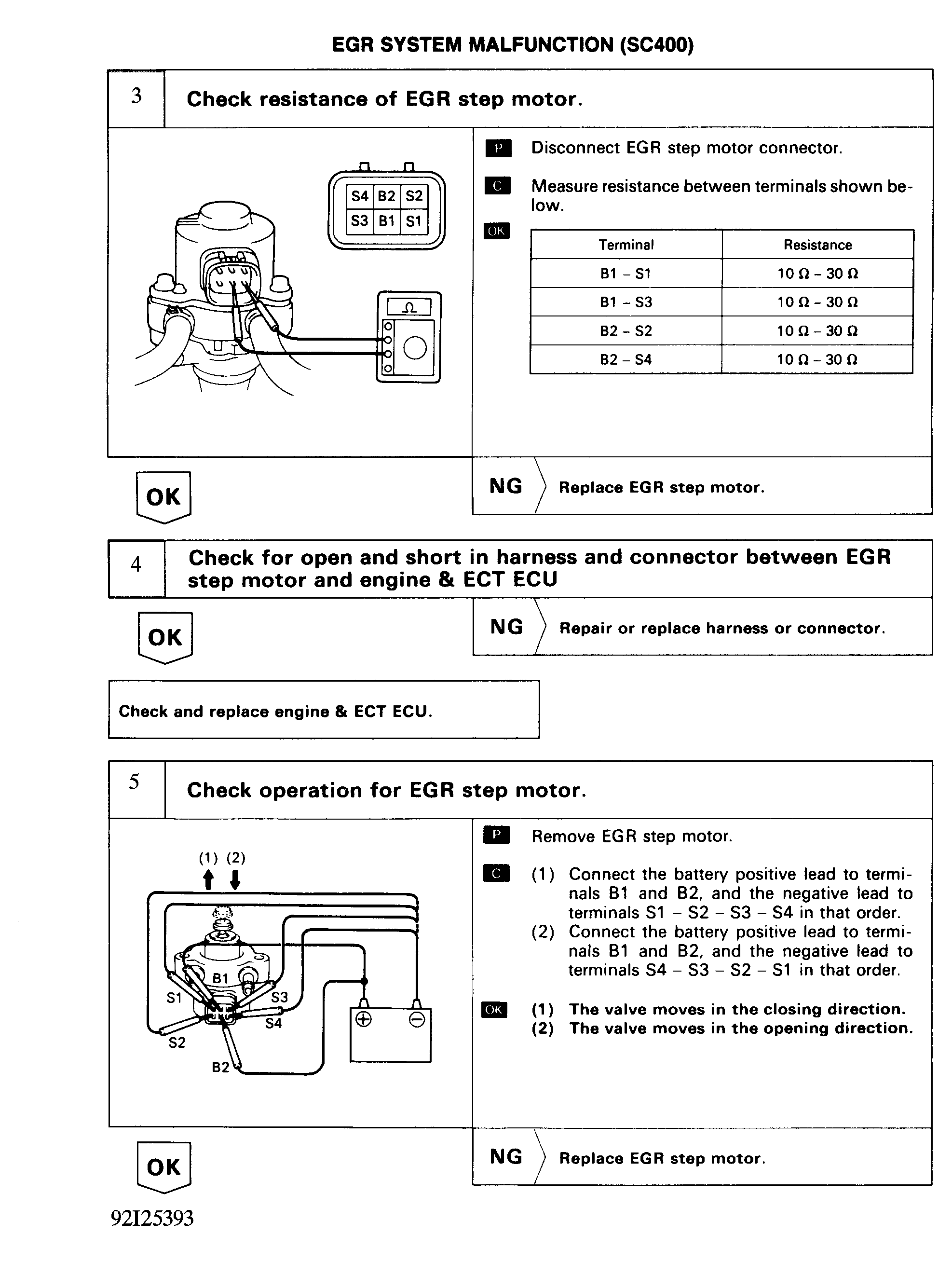

Fig 2: Code 71 Flow Chart (2 of 3) - EGR System Malfunction (SC400)

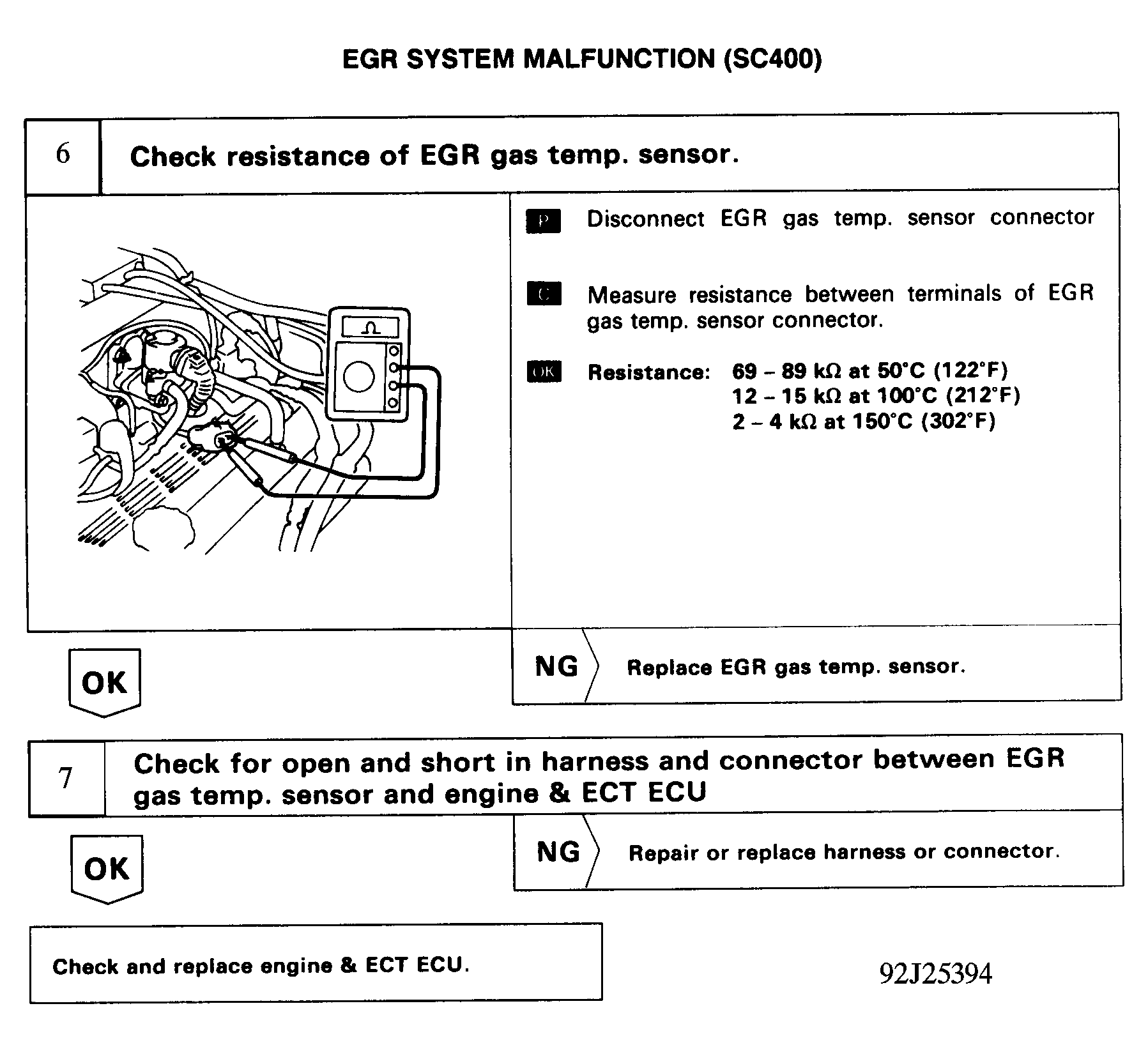

Fig 3: Code 71 Flow Chart (3 of 3) - EGR System Malfunction (SC400)
