Ecu Location

For ECU location, see Fig 1 or Fig 2.

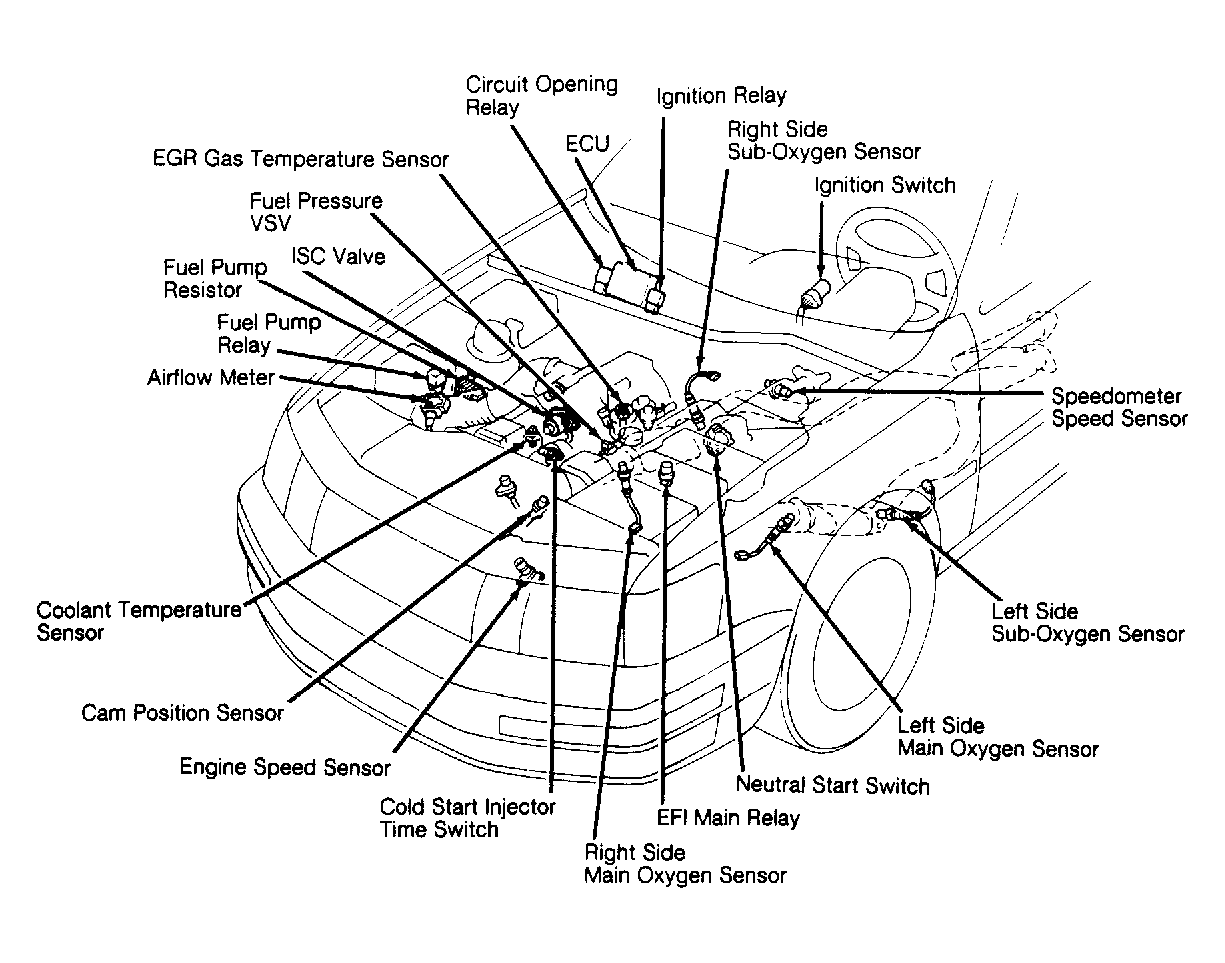

Fig 1: Locating Electronic Fuel Injection (EFI) Components (LS400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Electronic Fuel Injection (EFI) Components (SC400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
