Throttle Valve Cable

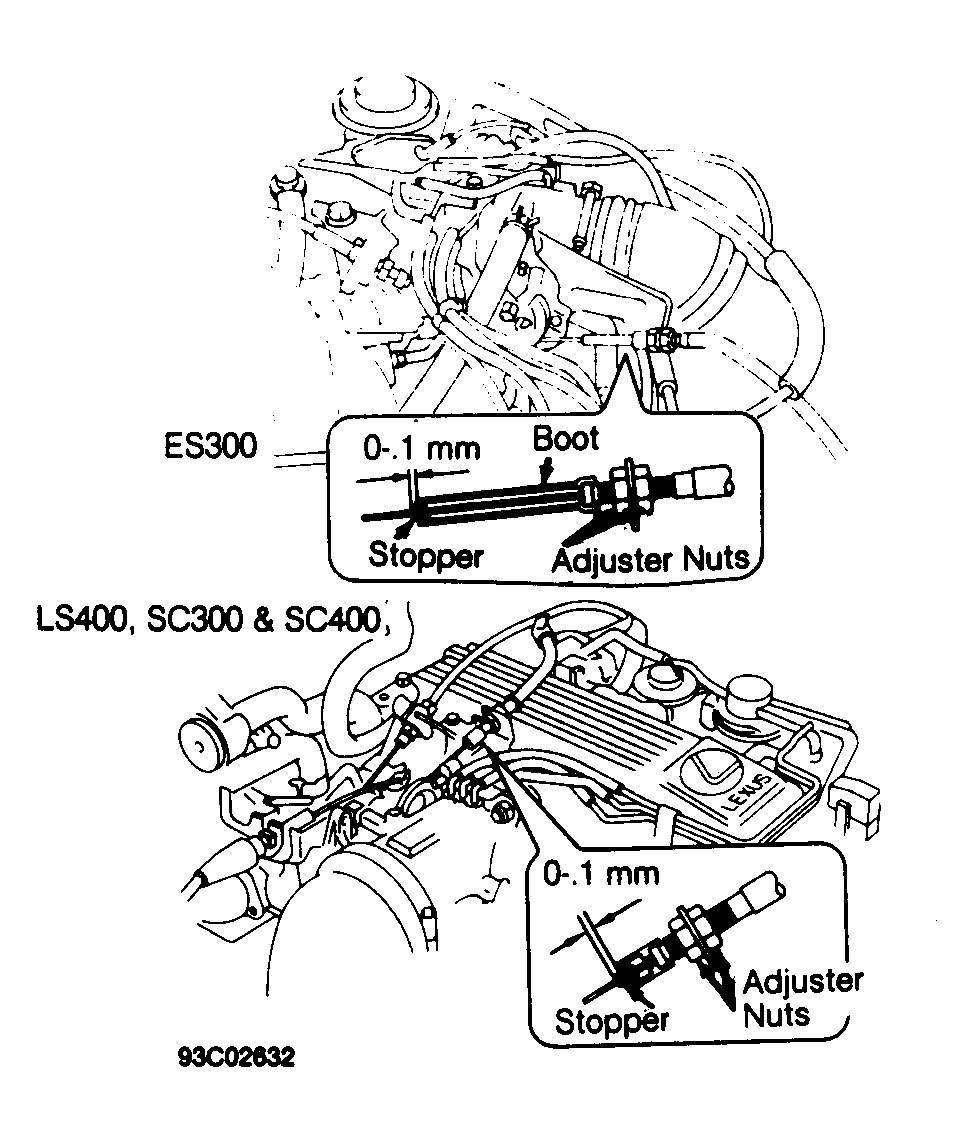

On LS400 and SC400, remove throttle body cover. On all models, measure distance between outer cable and cable stopper, with accel-erator pedal in idle position. Rotate adjuster nuts as required to adjust distance to 0-.04" (0-.1 mm). See Fig 1.
