Cluster Circuit Tests

Remove cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Using a DVOM, test cluster circuit. For testing, see Fig 2 and Fig 3 . For connector identification, see Fig 2.

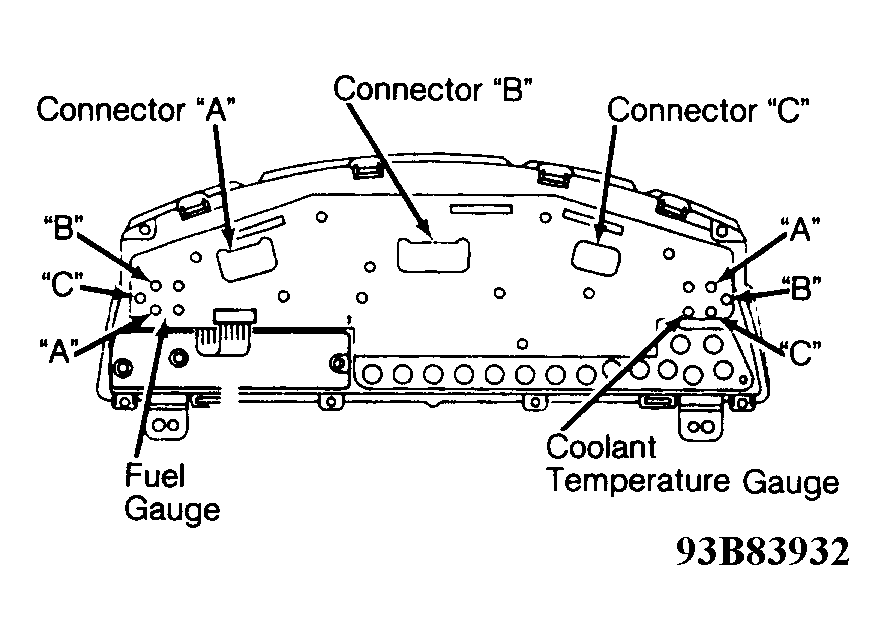

Fig 1: Instrument Panel Harness Connector ID

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

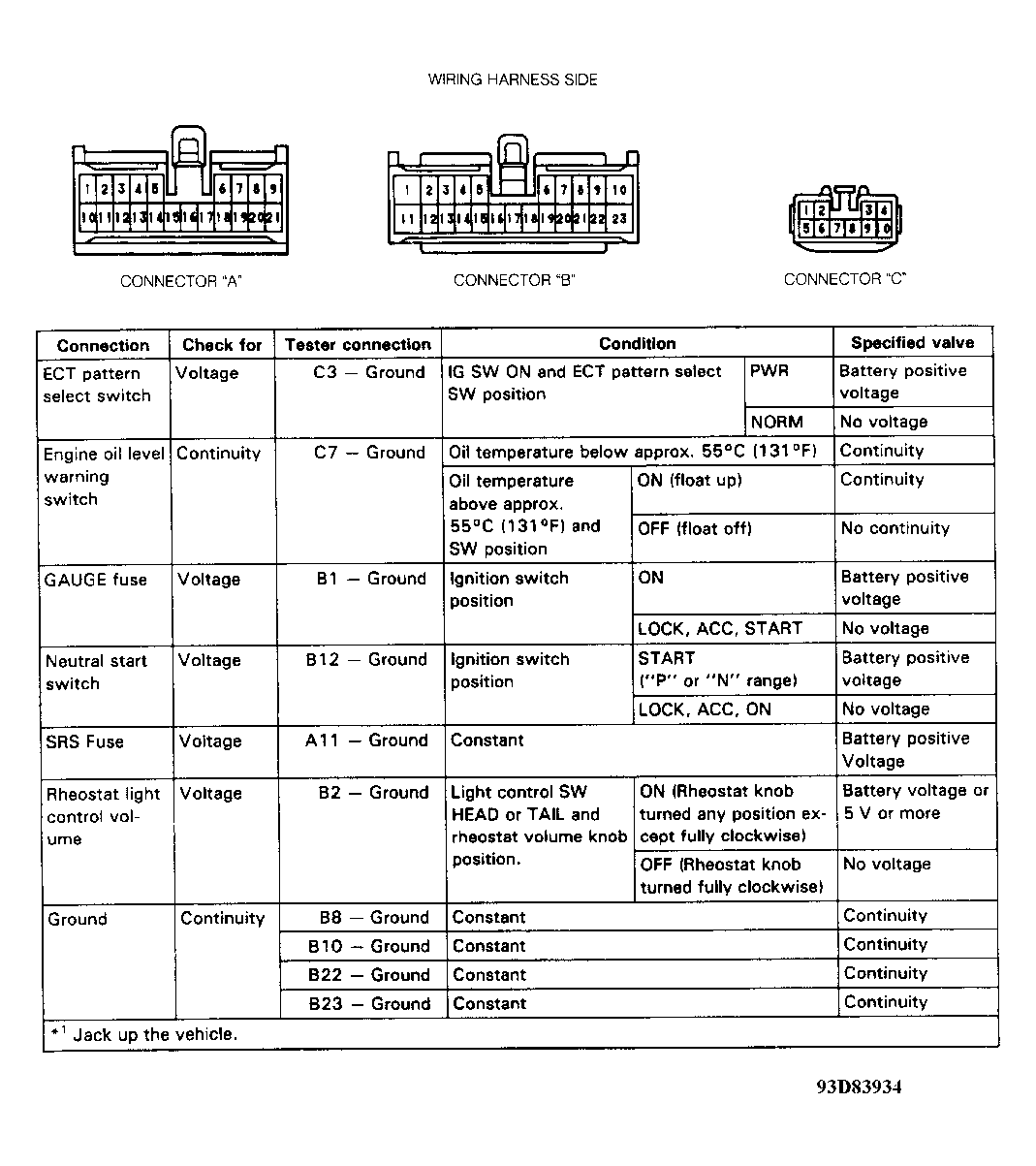

Fig 2: Testing Instrument Panel Harness Connectors (1 Of 2)

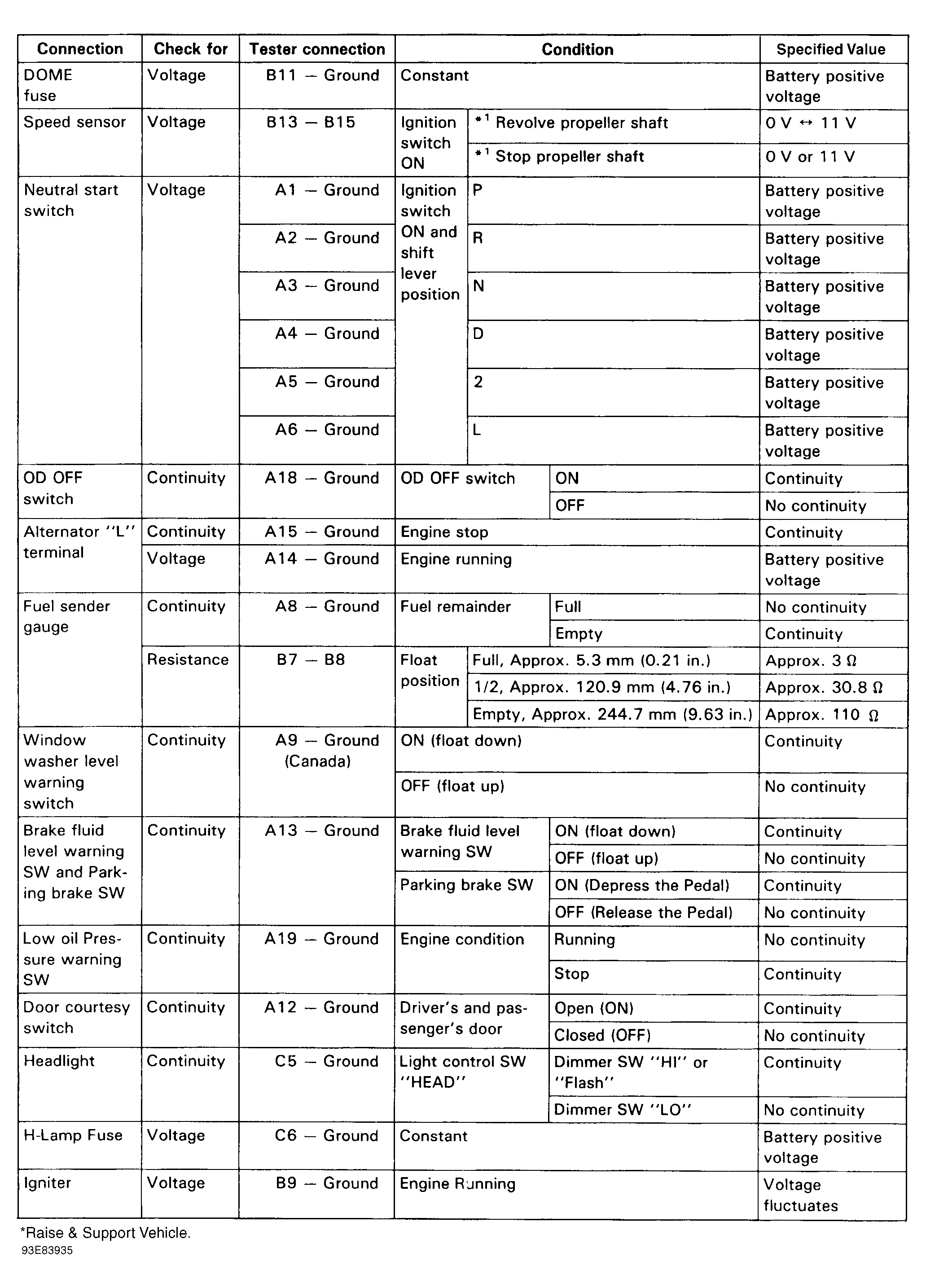

Fig 3: Testing Instrument Panel Harness Connectors (2 Of 2)
