DTC 51 Engine Malfunction Detection Circuit
DTC 51 Engine Malfunction Detection Circuit

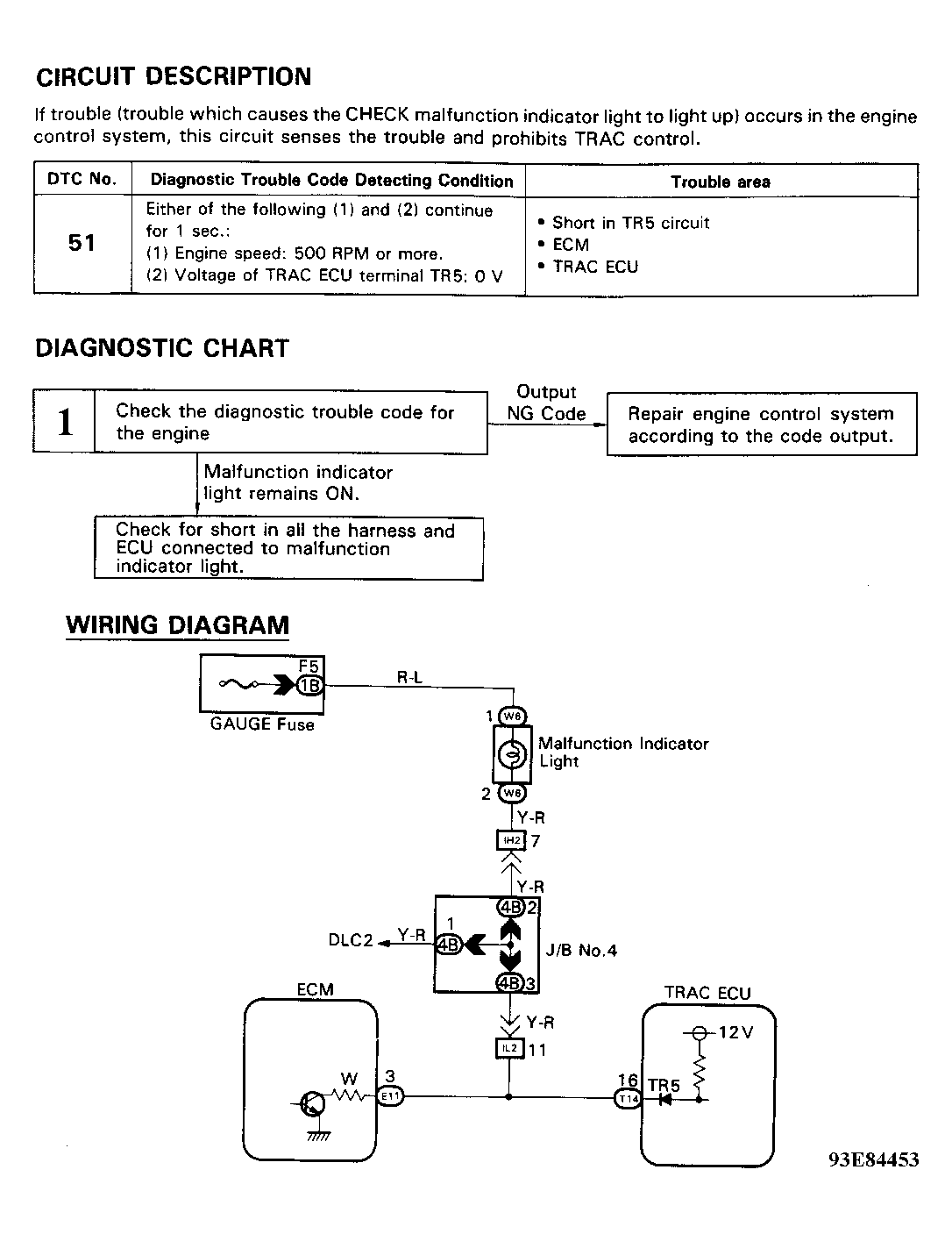

Fig 1: DTC 51 Engine Malfunction Detection Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
