Wiring Diagrams

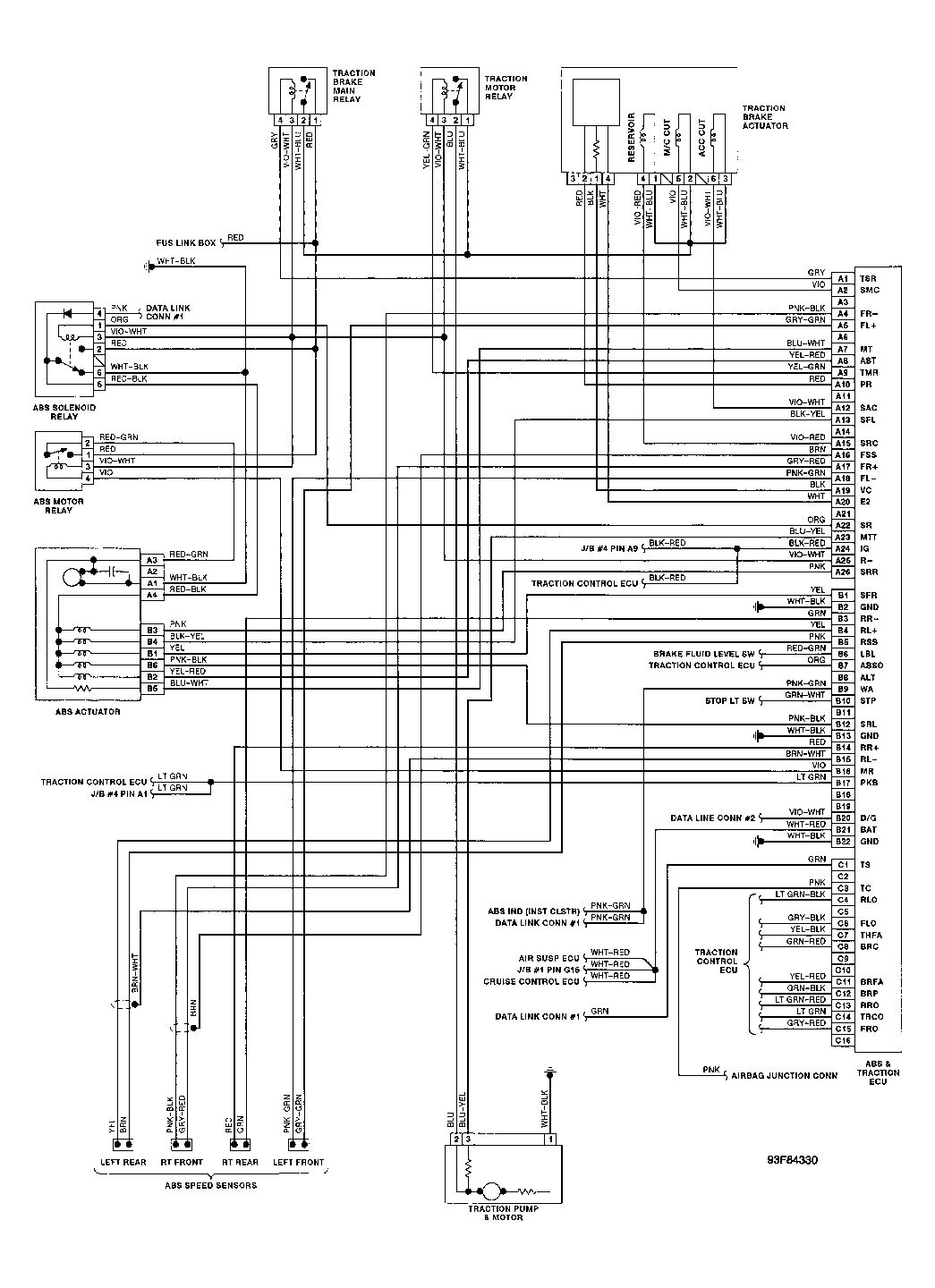

Fig 1: Traction Control (TRAC) System Wiring Diagram (1 Of 2)
G93F84330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

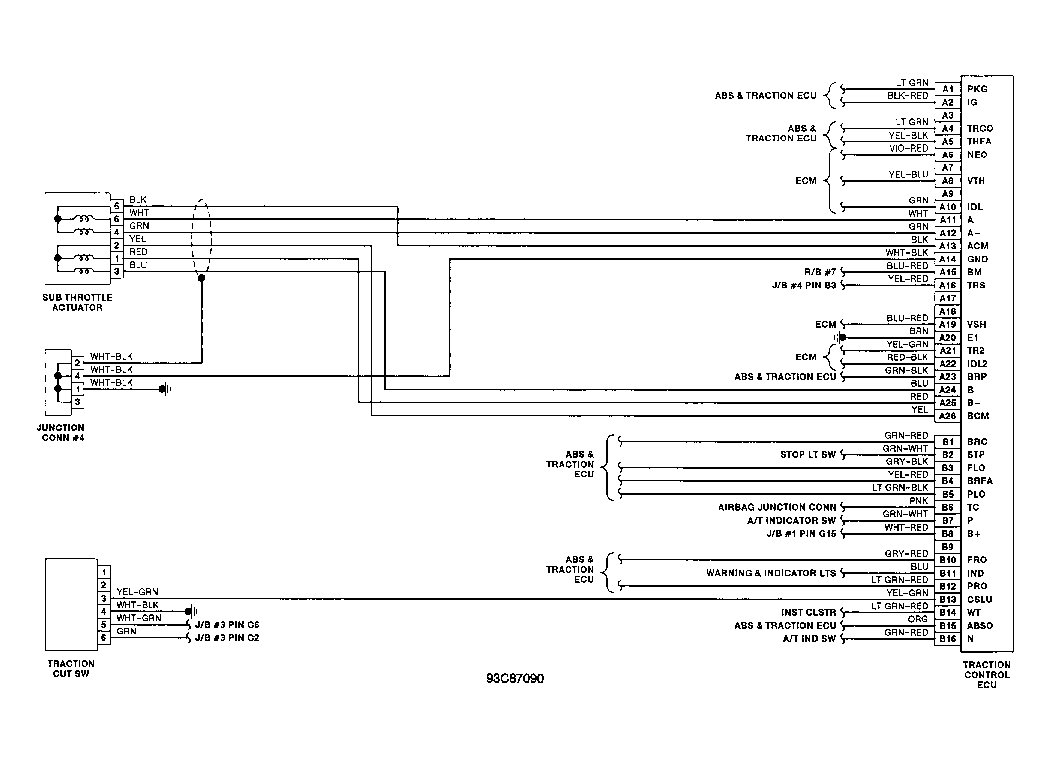

Fig 2: Traction Control (TRAC) System Wiring Diagram (2 Of 2)
G93C87090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
