Cluster Circuit Tests

Remove cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Using a DVOM, test cluster circuit. For testing, see Fig 2- Fig 5 . For connector identification, see Fig 1.

Fig 1: Instrument Panel Harness Connector ID

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Testing Instrument Panel Harness Connectors (Canada - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Testing Instrument Panel Harness Conn. (Canada - 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

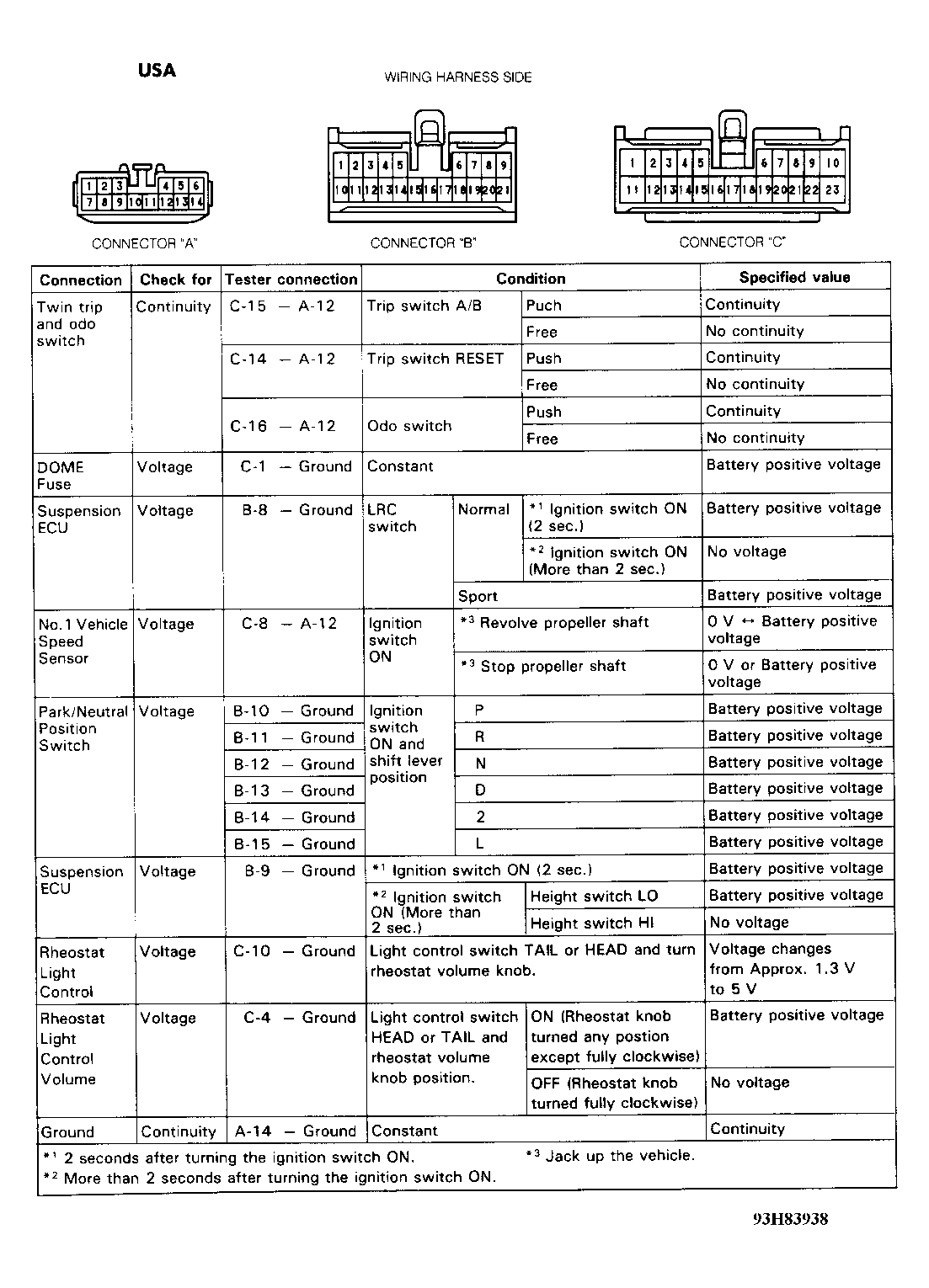

Fig 4: Testing Instrument Panel Harness Connectors (USA - 1 Of 2)

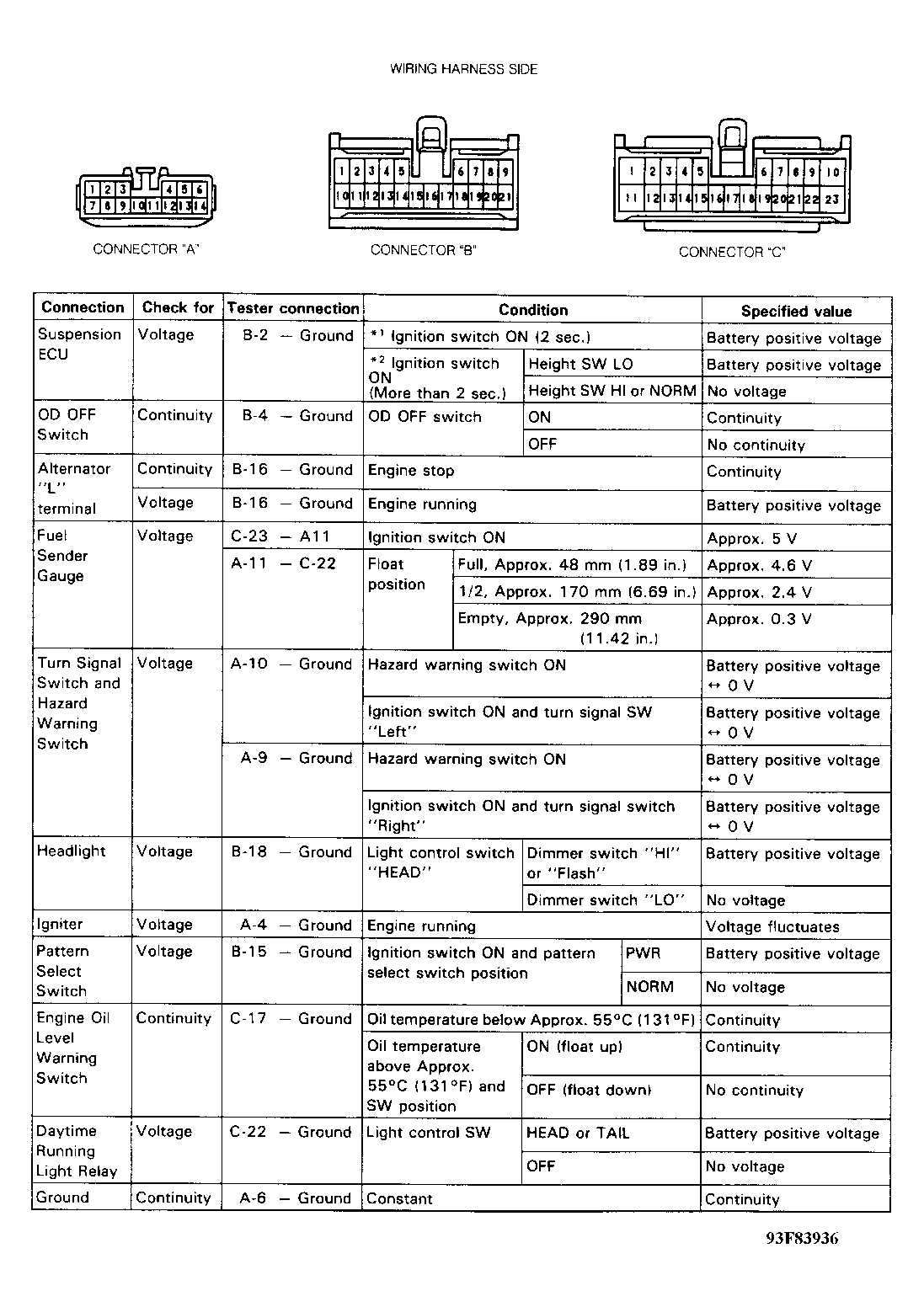

Fig 5: Testing Instrument Panel Harness Connectors (USA - 2 Of 2)
