SC 300 Automatic
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Wiring Diagrams
Wiring Diagrams
NOTE:
For wiring diagrams on models with traction control, see
TRACTION CONTROL SYSTEM
article in the BRAKES section.

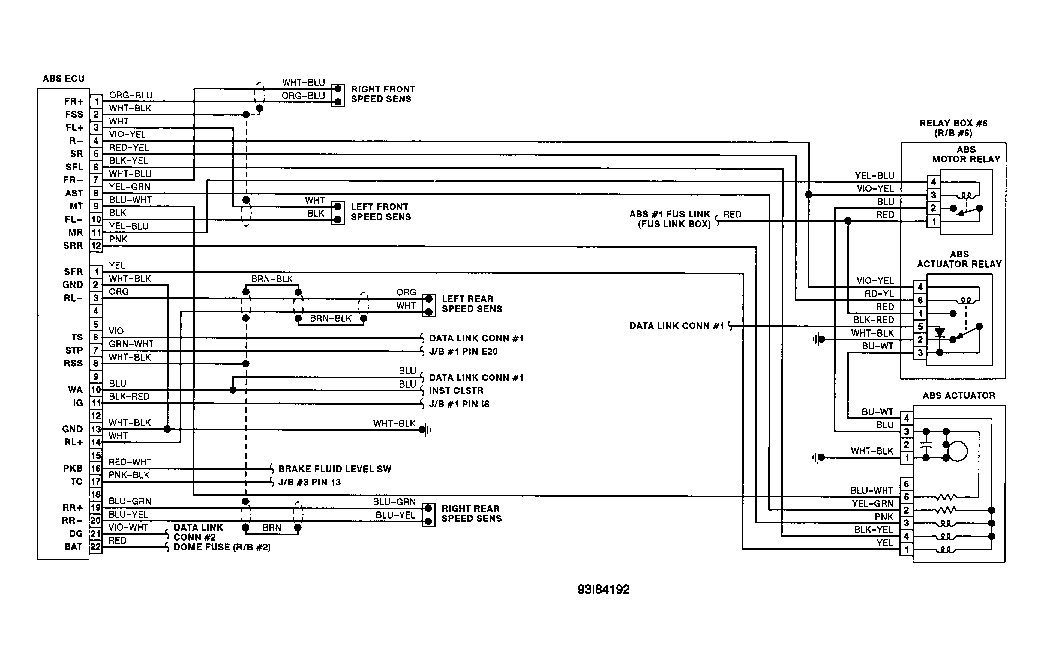

Fig 1: Anti-Lock Brake System (ABS) Wiring Diagram (Without TRAC)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
