Code 22 - Coolant Temperature Sensor Signal Circuit
Code 22 - Coolant Temperature Sensor Signal Circuit

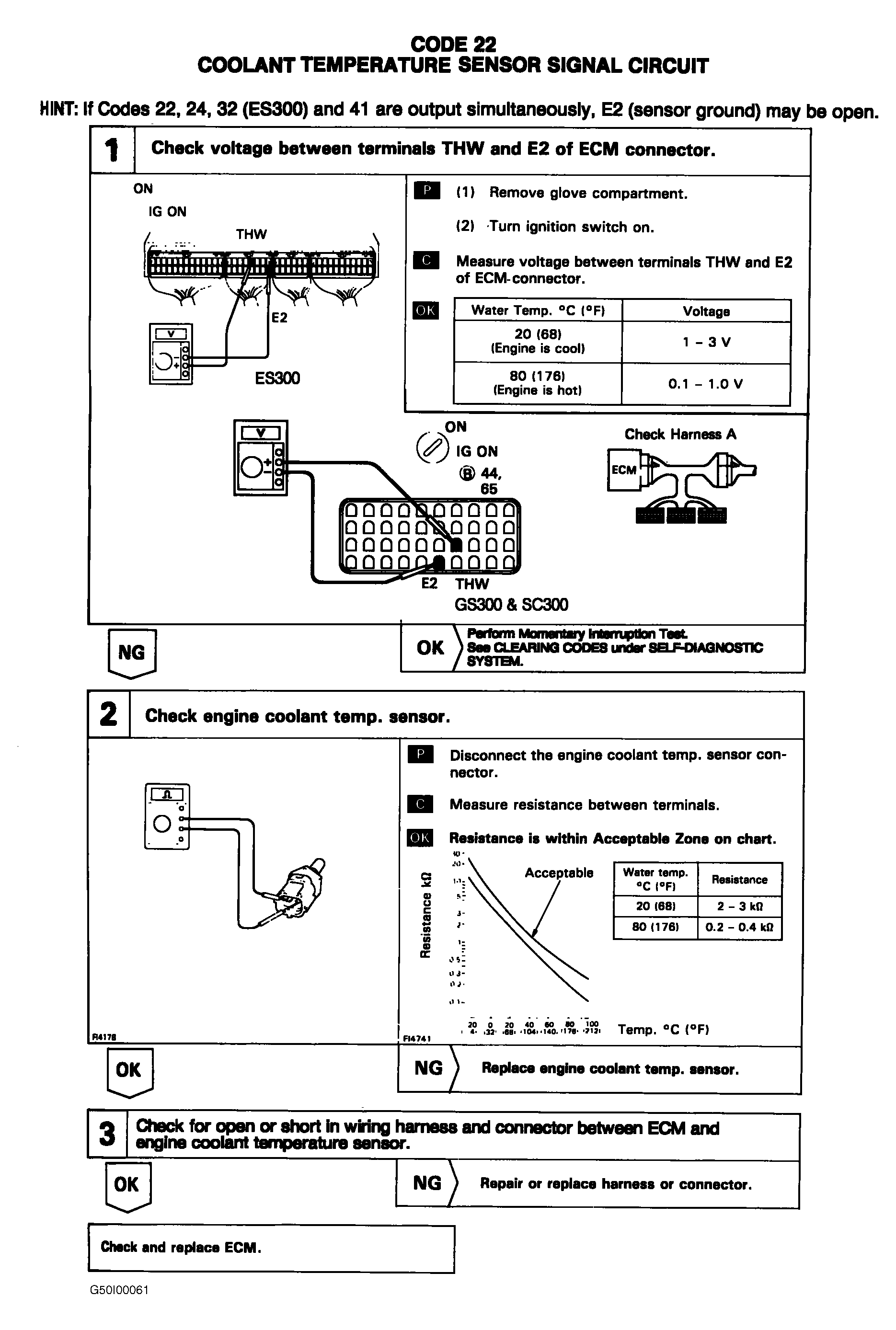

Fig 1: Code 22 - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
