Code 24 - Intake Air Temperature Sensor Signal Circuit
Code 24 - Intake Air Temperature Sensor Signal Circuit

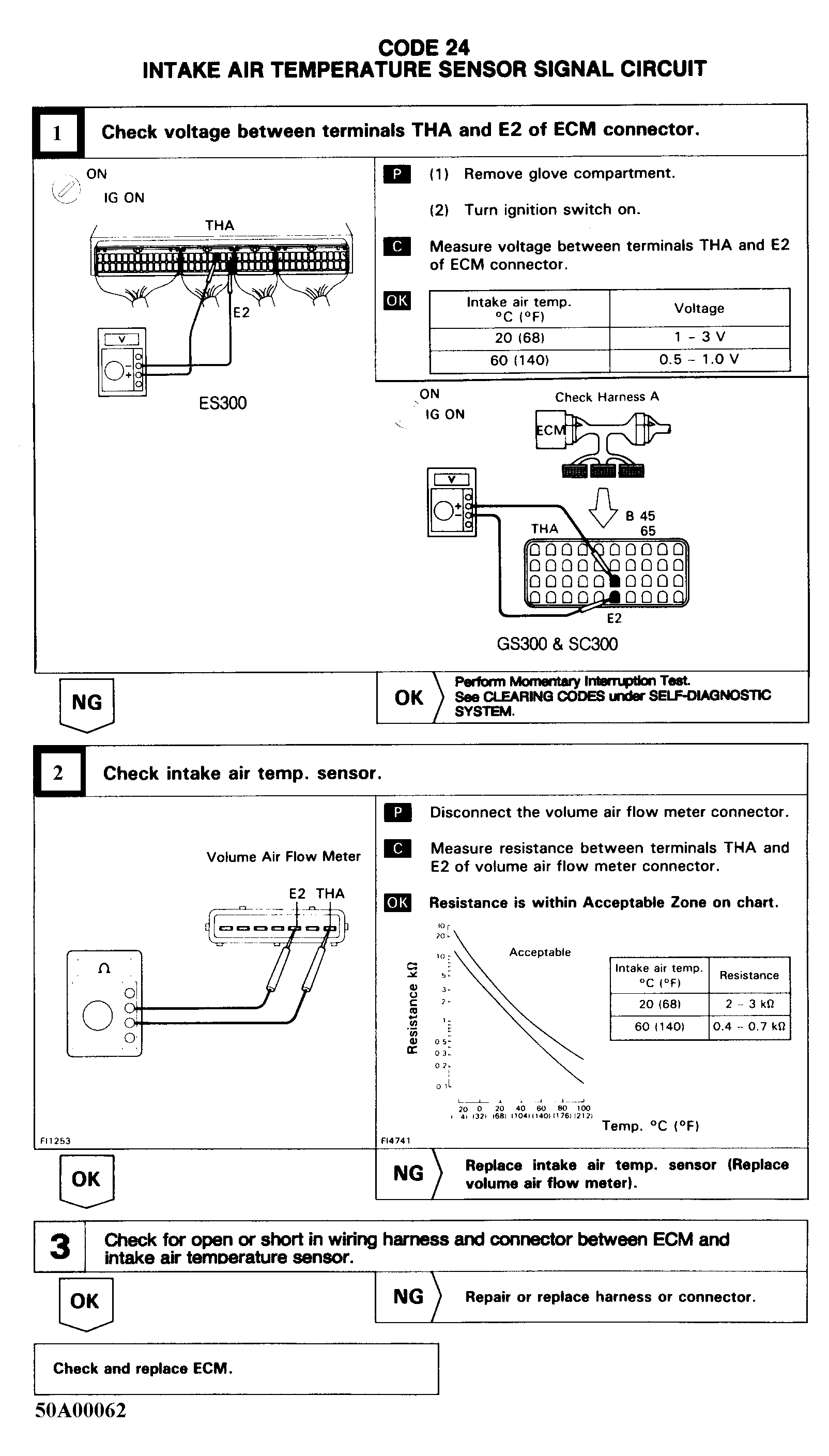

Fig 1: Code 24 - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
