Code 71 - EGR System Malfunction (Es300 Ca)
Code 71 - EGR System Malfunction (Es300 Ca)

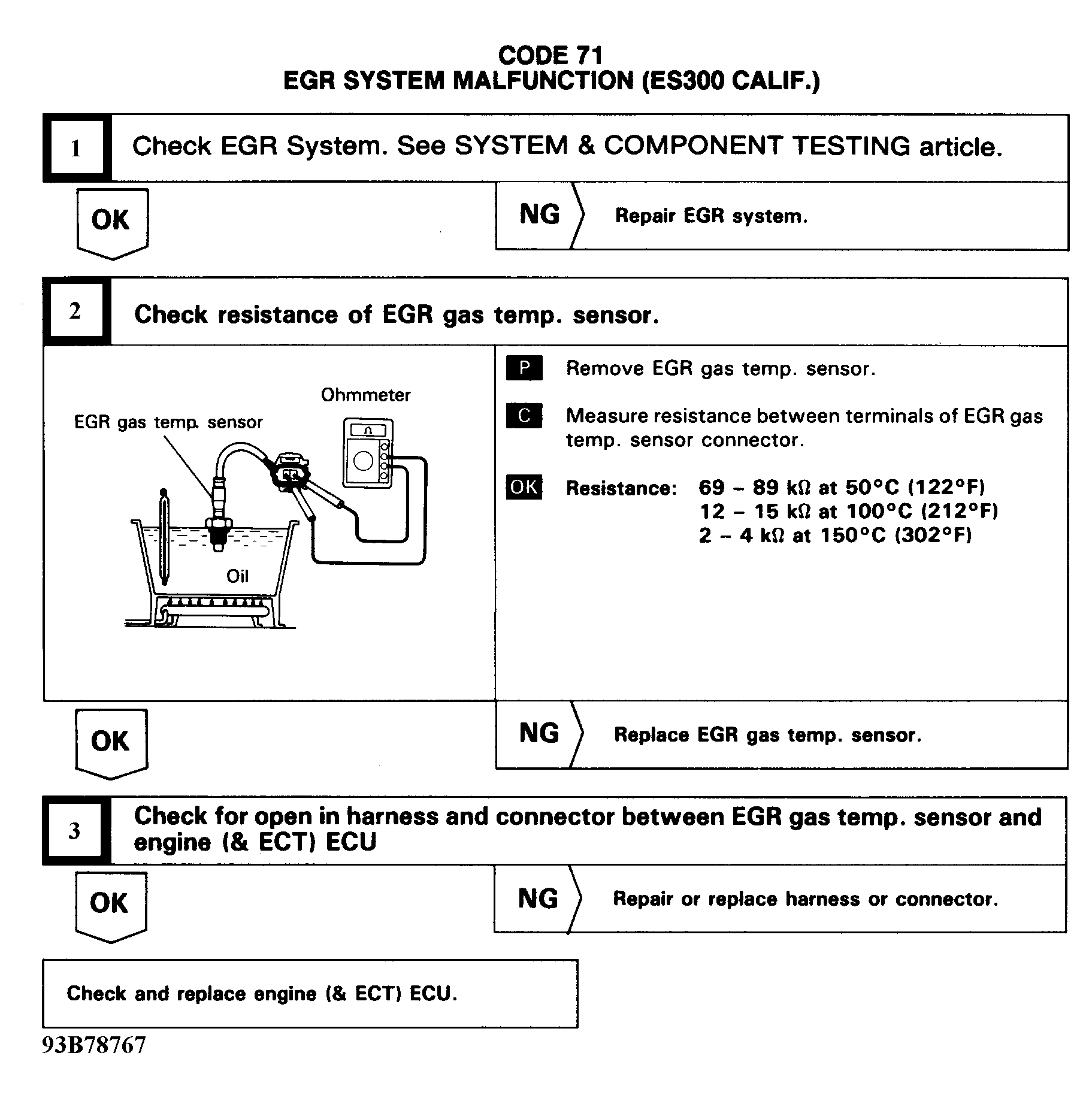

Fig 1: Code 71 - Diagnostic Flowchart (ES300 CA)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
