Code 71 - EGR System Malfunction (GS300 & SC300 Ca)
Code 71 - EGR System Malfunction (GS300 & SC300 Ca)

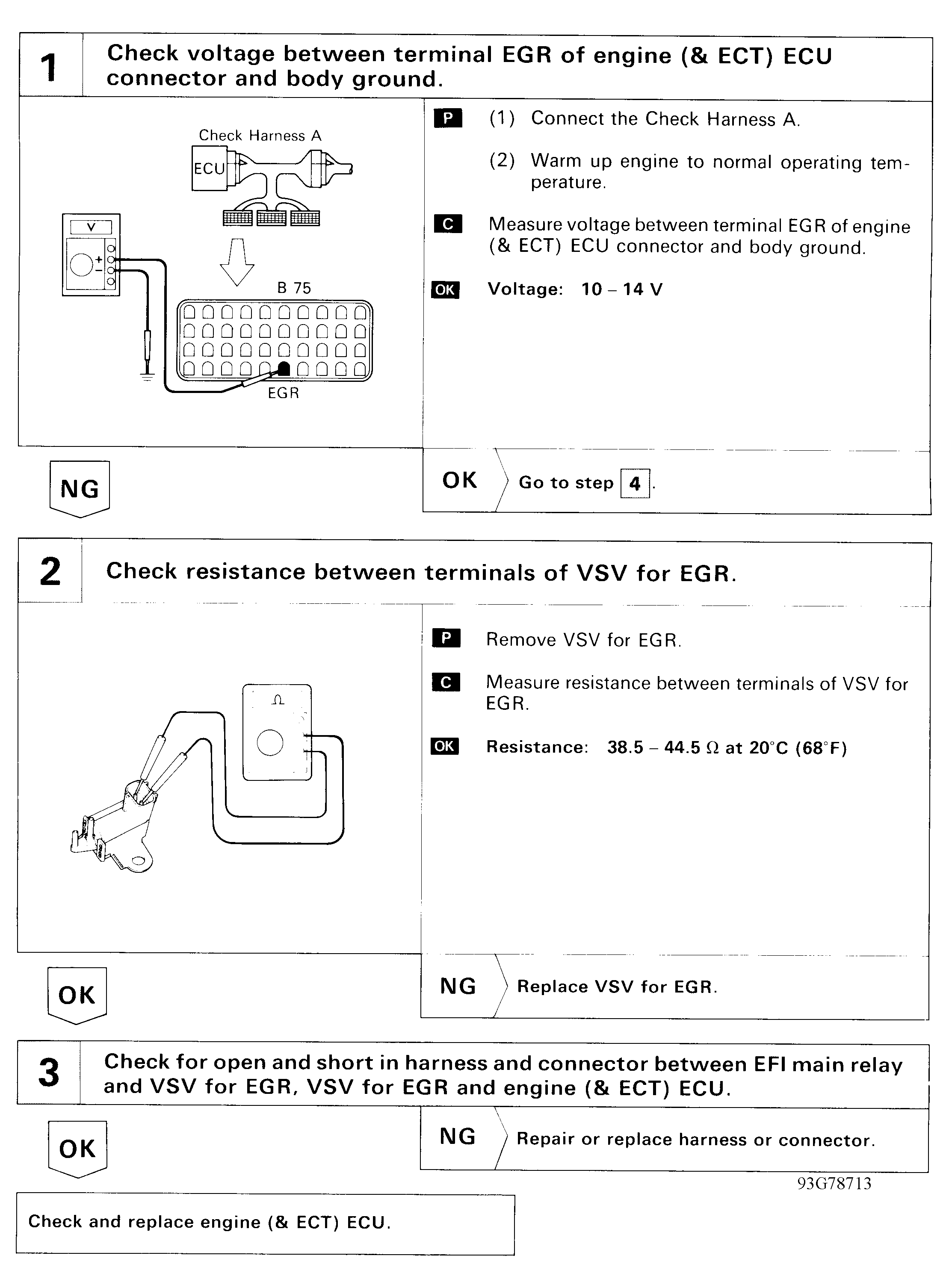

Fig 1: Code 71 - Diagnostic Flowchart (GS300 & SC300, 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

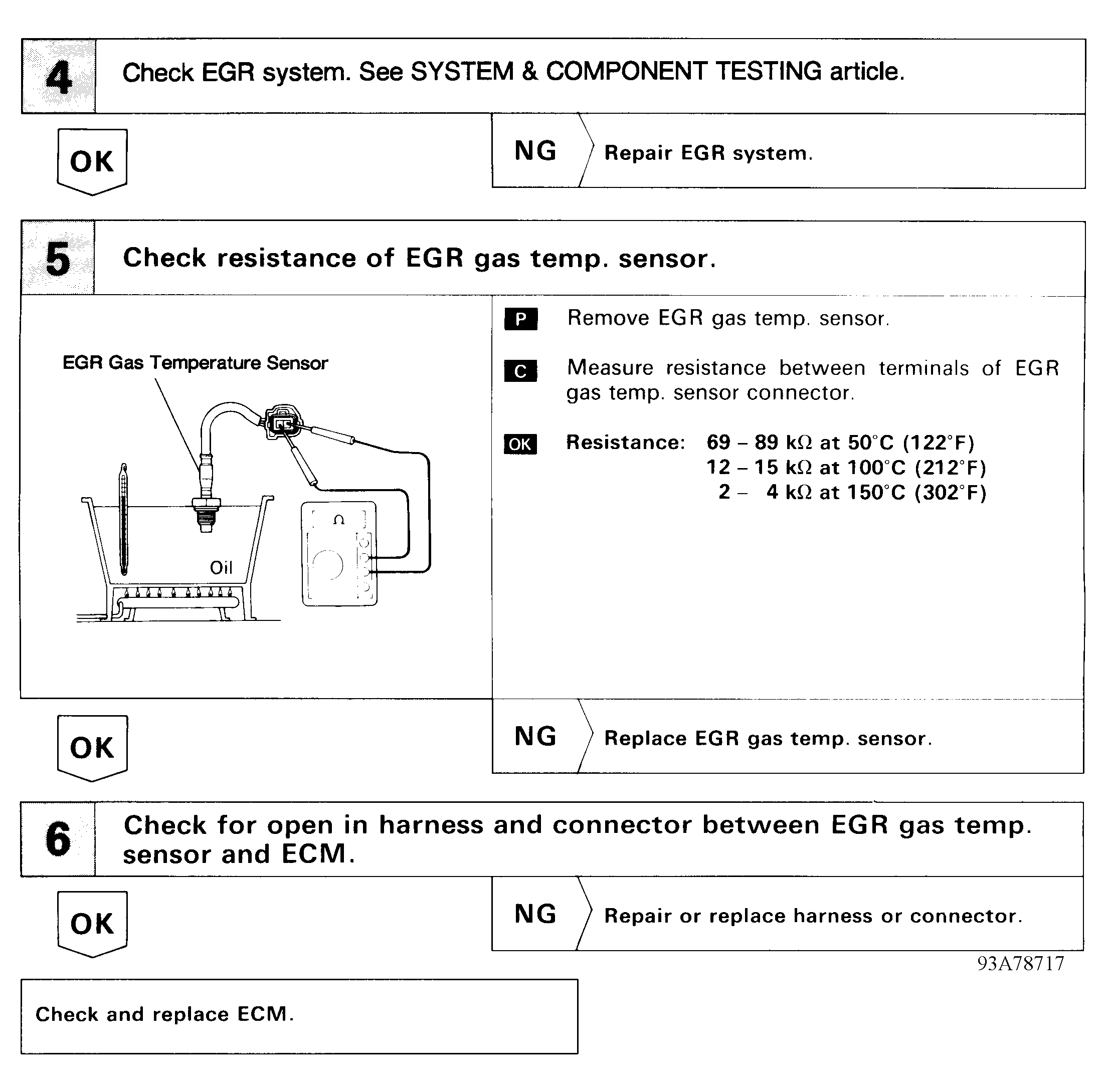

Fig 2: Code 71 - Diagnostic Flowchart (GS300 & SC300, 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
