Code 31 - Airflow Meter Circuit (SC400)

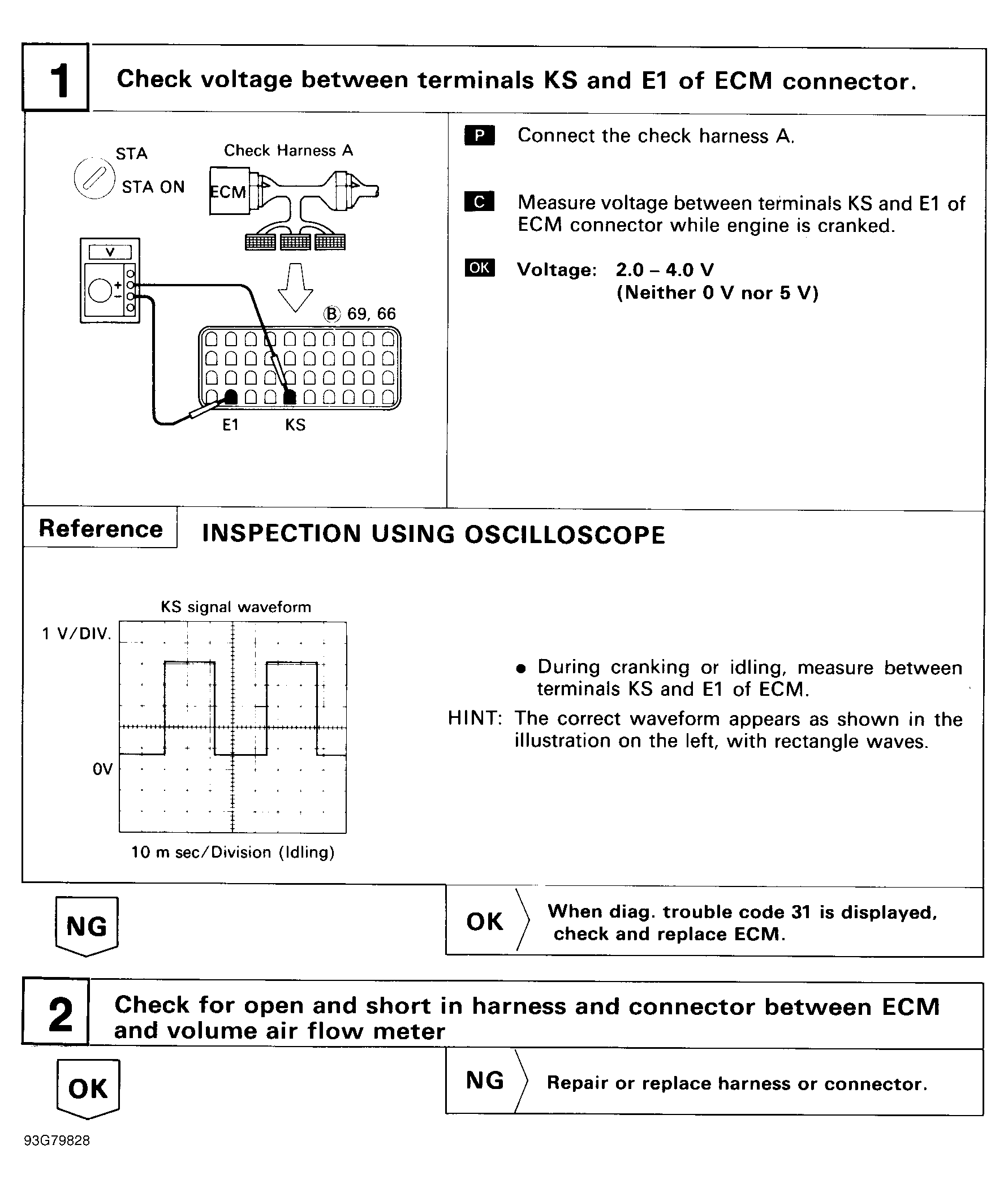

Fig 1: Code 31 - Diagnostic Flowchart (SC400, 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

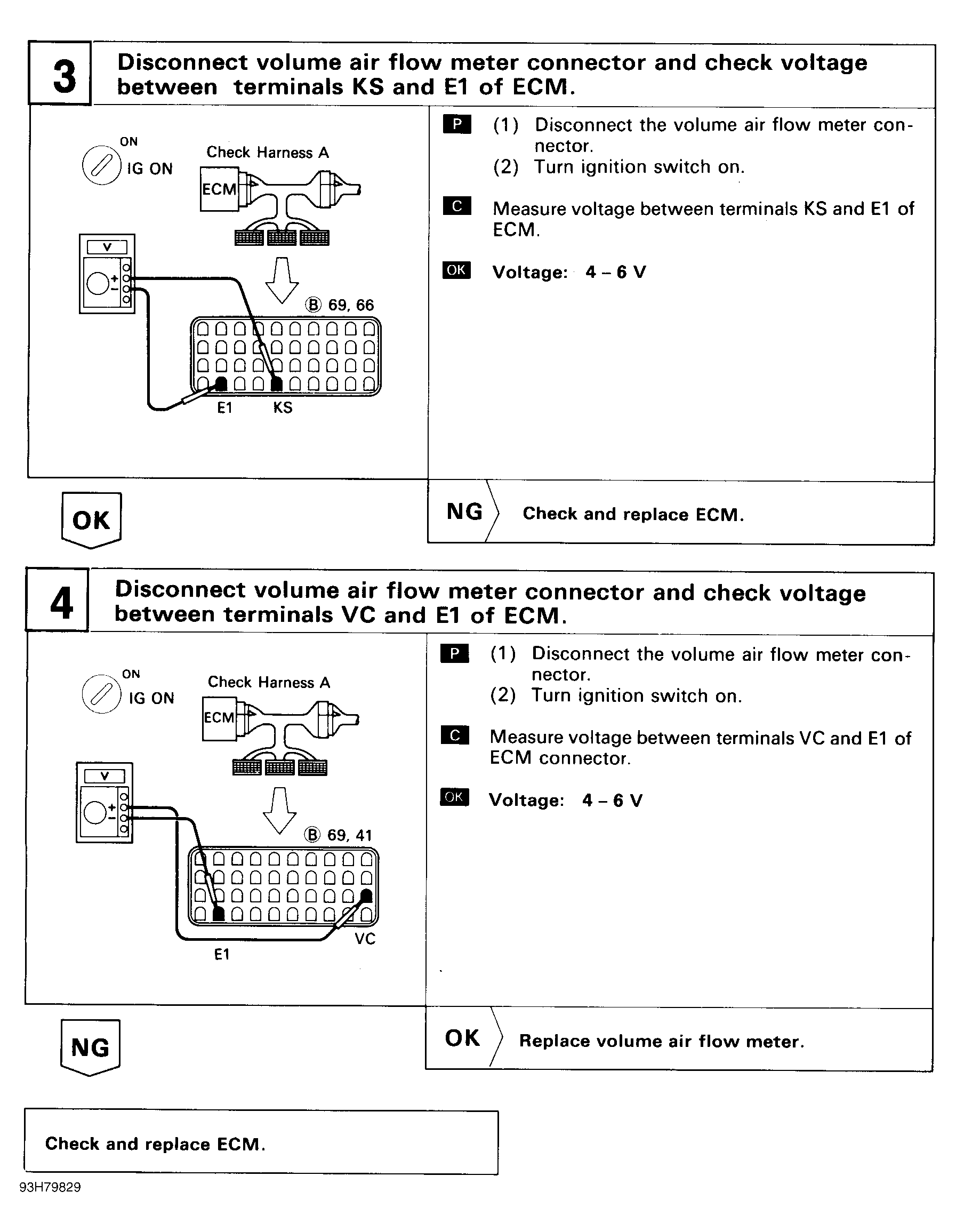

Fig 2: Code 31 - Diagnostic Flowchart (SC400, 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
