Code P0100 - Mass Airflow Meter Circuit Malfunction
Code P0100 - Mass Airflow Meter Circuit Malfunction

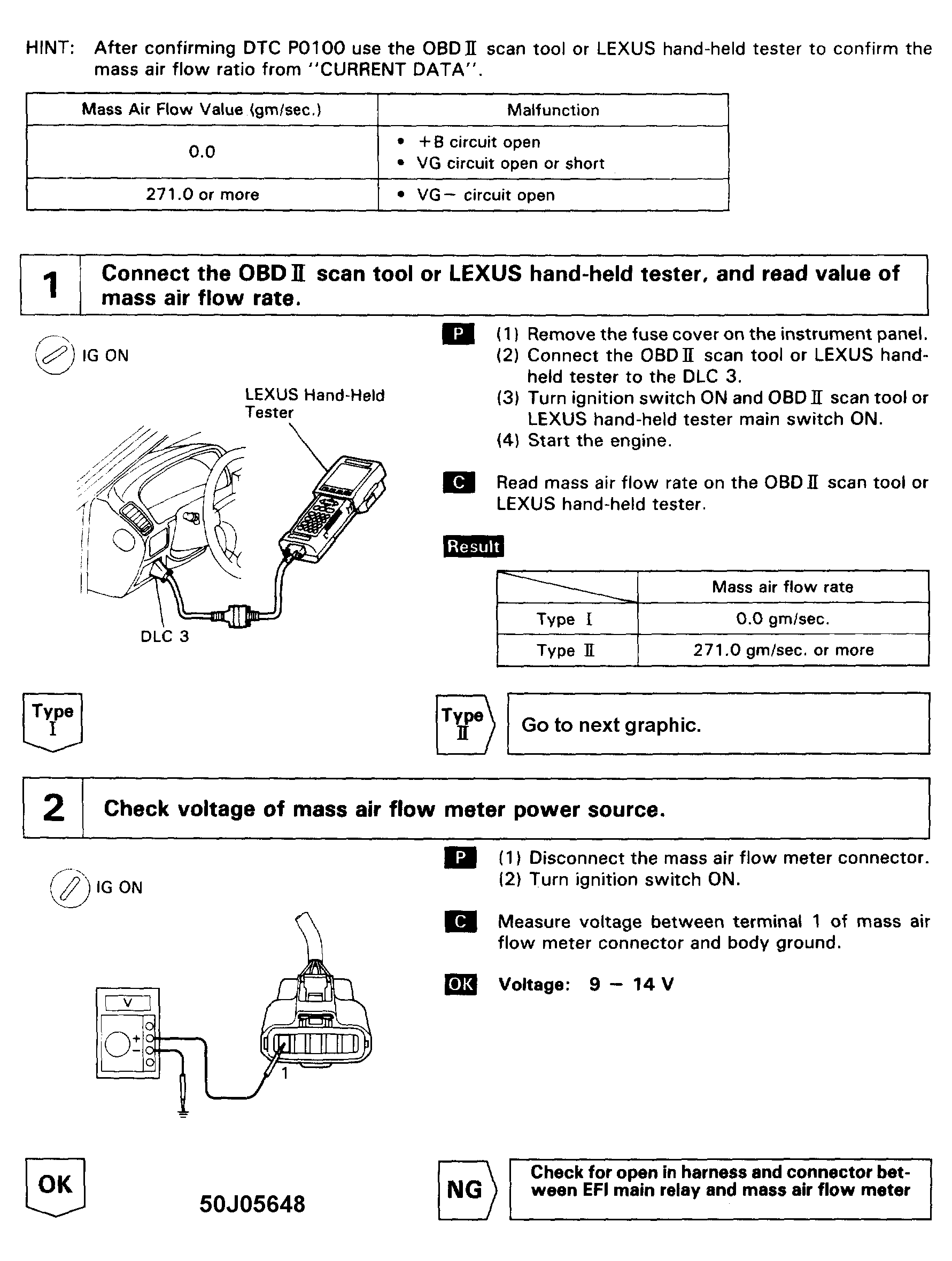

Fig 1: Code P0100 Flow Chart (1 Of 2) Mass Airflow Meter Circuit Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

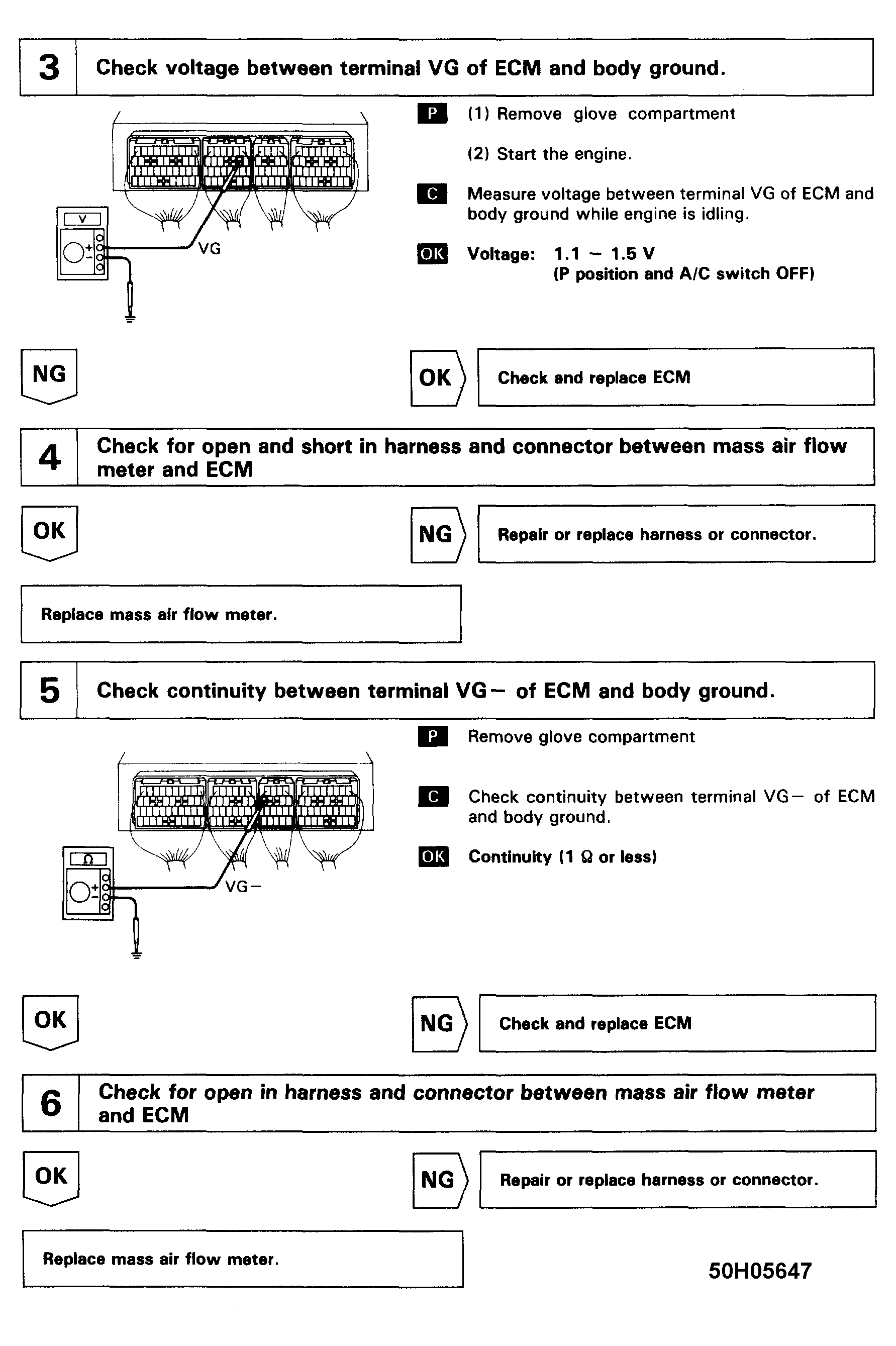

Fig 2: Code P0100 Flow Chart (2 Of 2) Mass Airflow Meter Circuit Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
