Code P0115 - Engine Coolant Temperature Circuit Malfunction

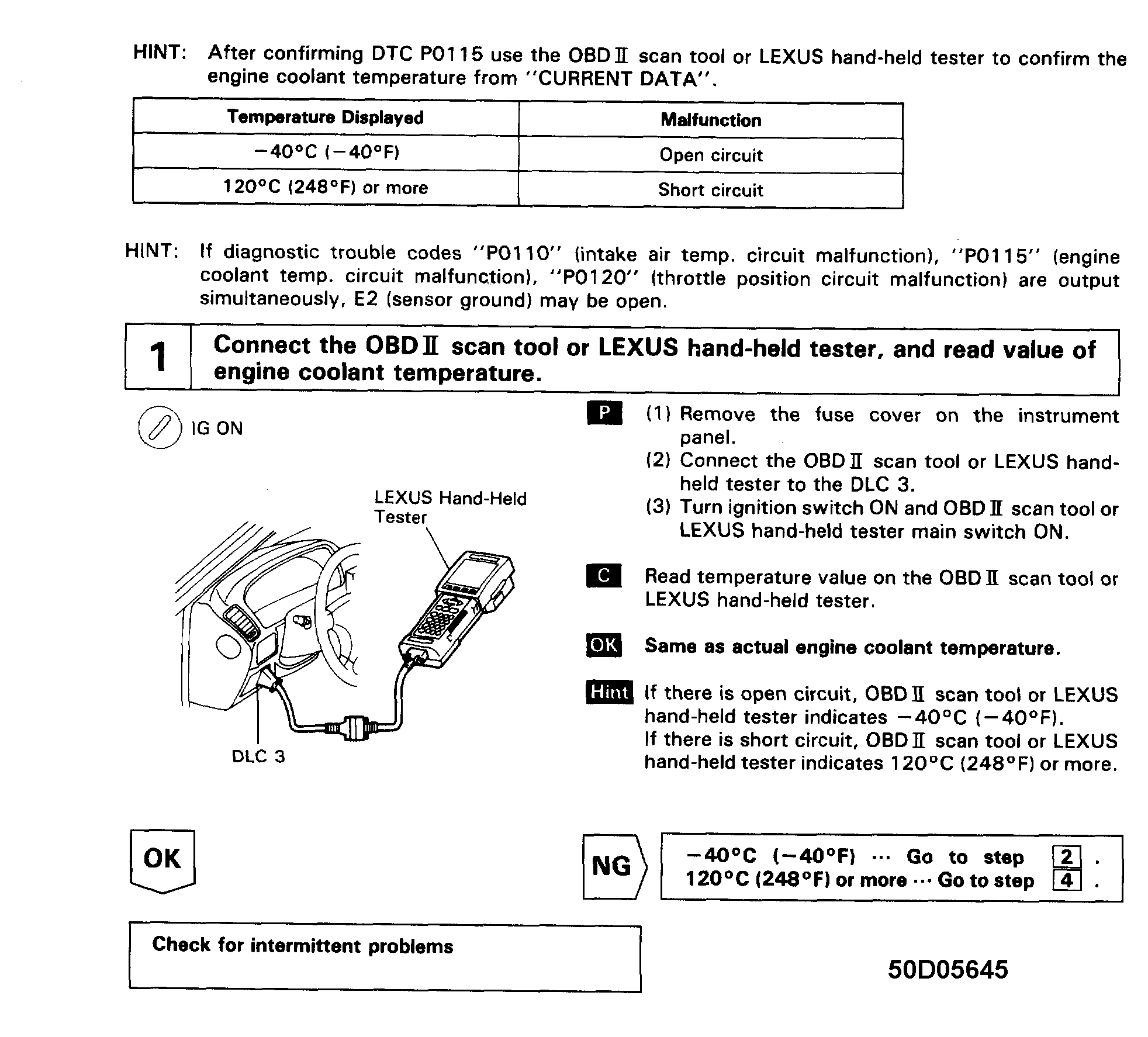

Fig 1: Code P0115 Flow Chart (1 Of 3) Engine Coolant Temp Circuit Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

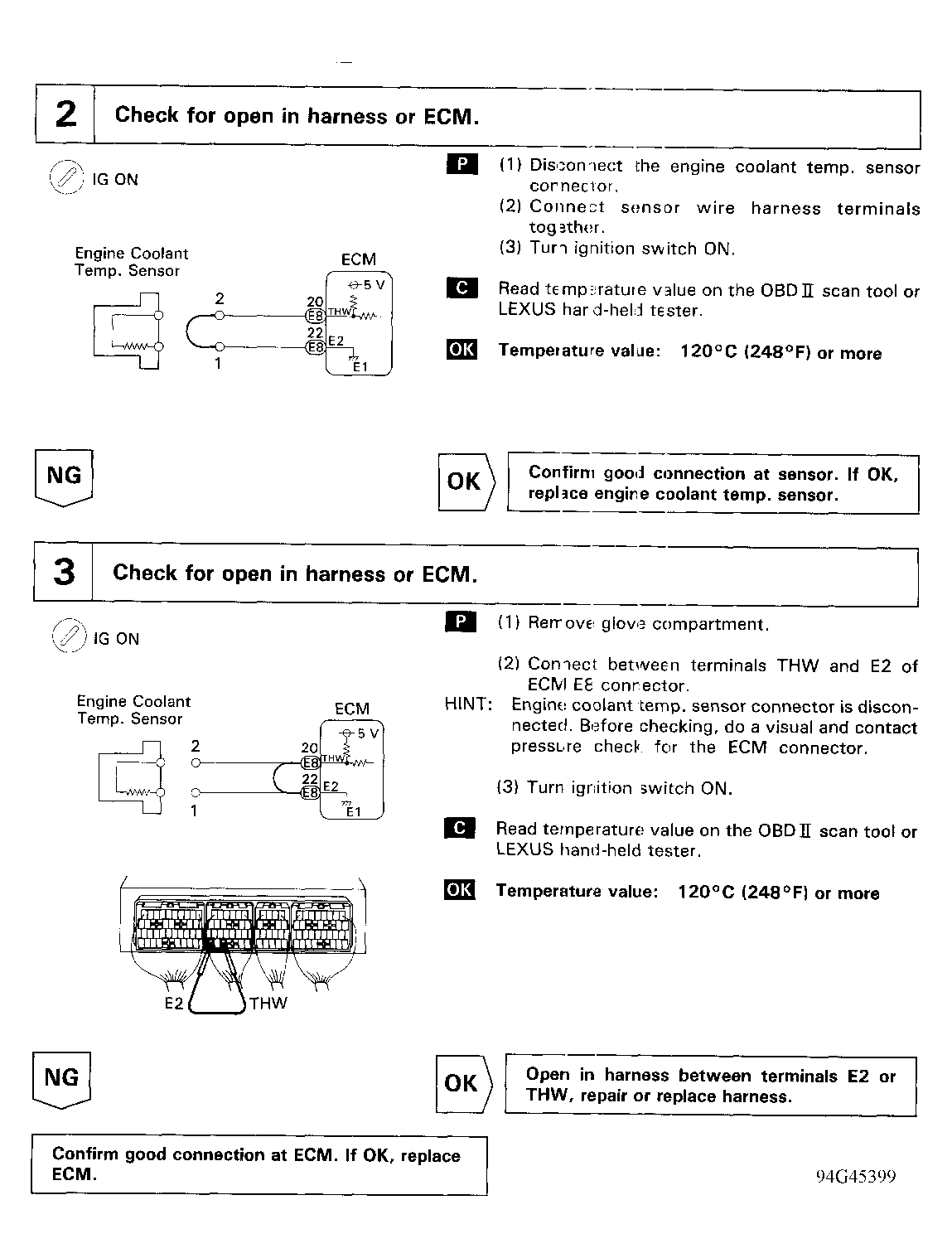

Fig 2: Code P0115 Flow Chart (2 Of 3) Engine Coolant Temp Circuit Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

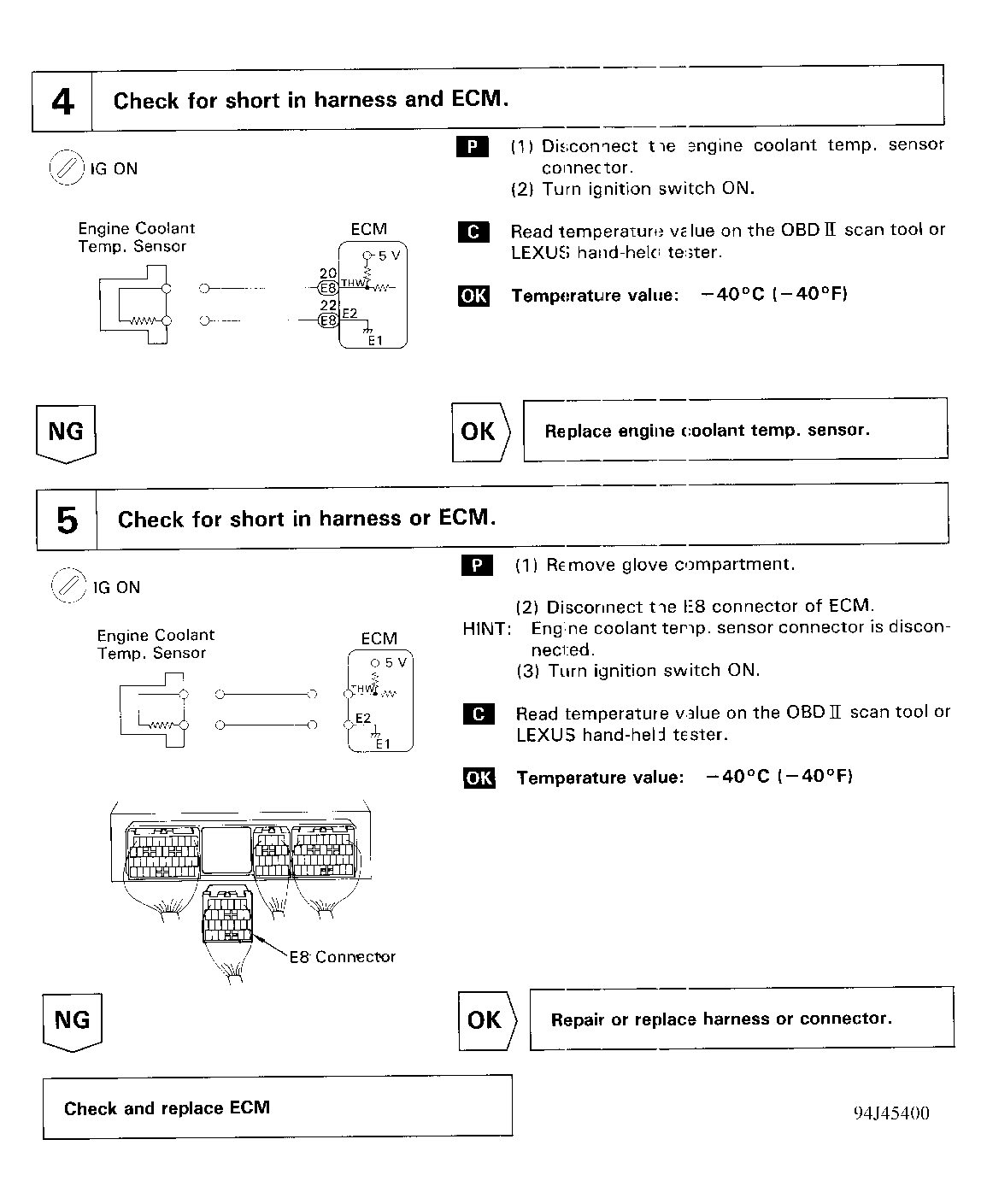

Fig 3: Code P0115 Flow Chart (3 Of 3) Engine Coolant Temp Circuit Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
