Code P0121 - Throttle Position Circuit Range/Performance
Code P0121 - Throttle Position Circuit Range/Performance

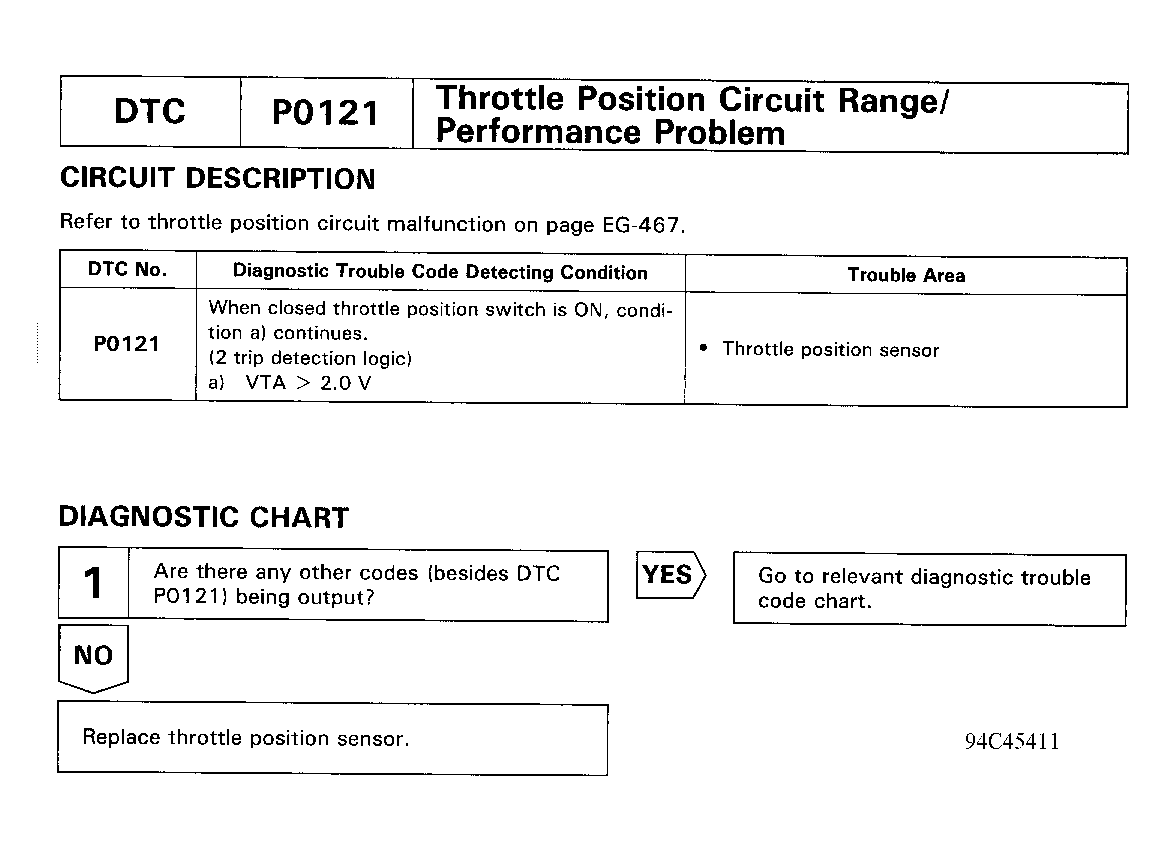

Fig 1: Code P0121 Flow Chart - Throttle Position Circuit Range/Performance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
