Code P0335 - Crankshaft Position Sensor Circuit Malfunction
Code P0335 - Crankshaft Position Sensor Circuit Malfunction

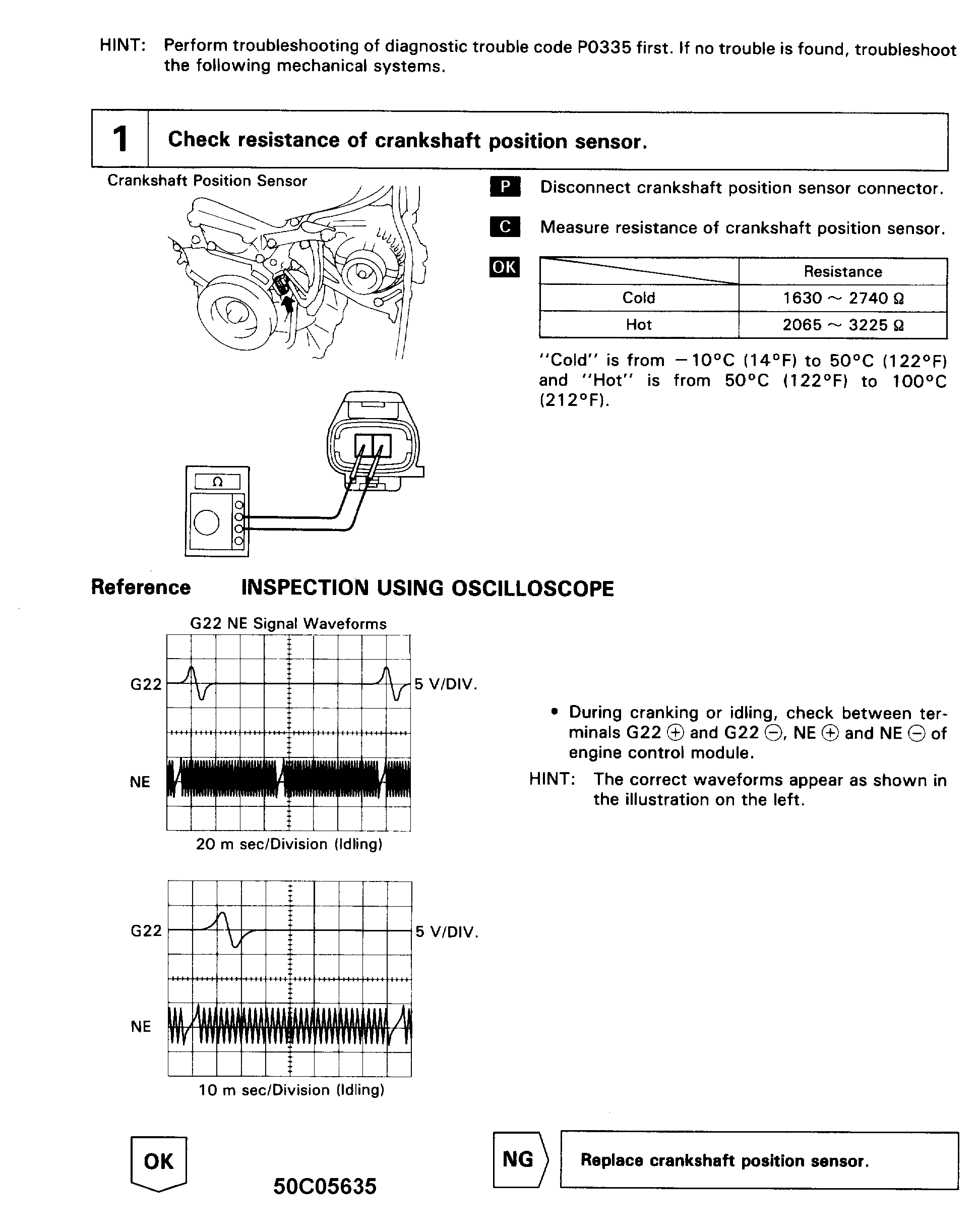

Fig 1: Code P0335 Flow Chart (1 Of 2) Crankshaft Position Sensor Circuit Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Code P0335 Flow Chart (2 Of 2) Crankshaft Position Sensor Circuit Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
