Code P0420 - Catalyst System Efficiency Below Threshold
Code P0420 - Catalyst System Efficiency Below Threshold

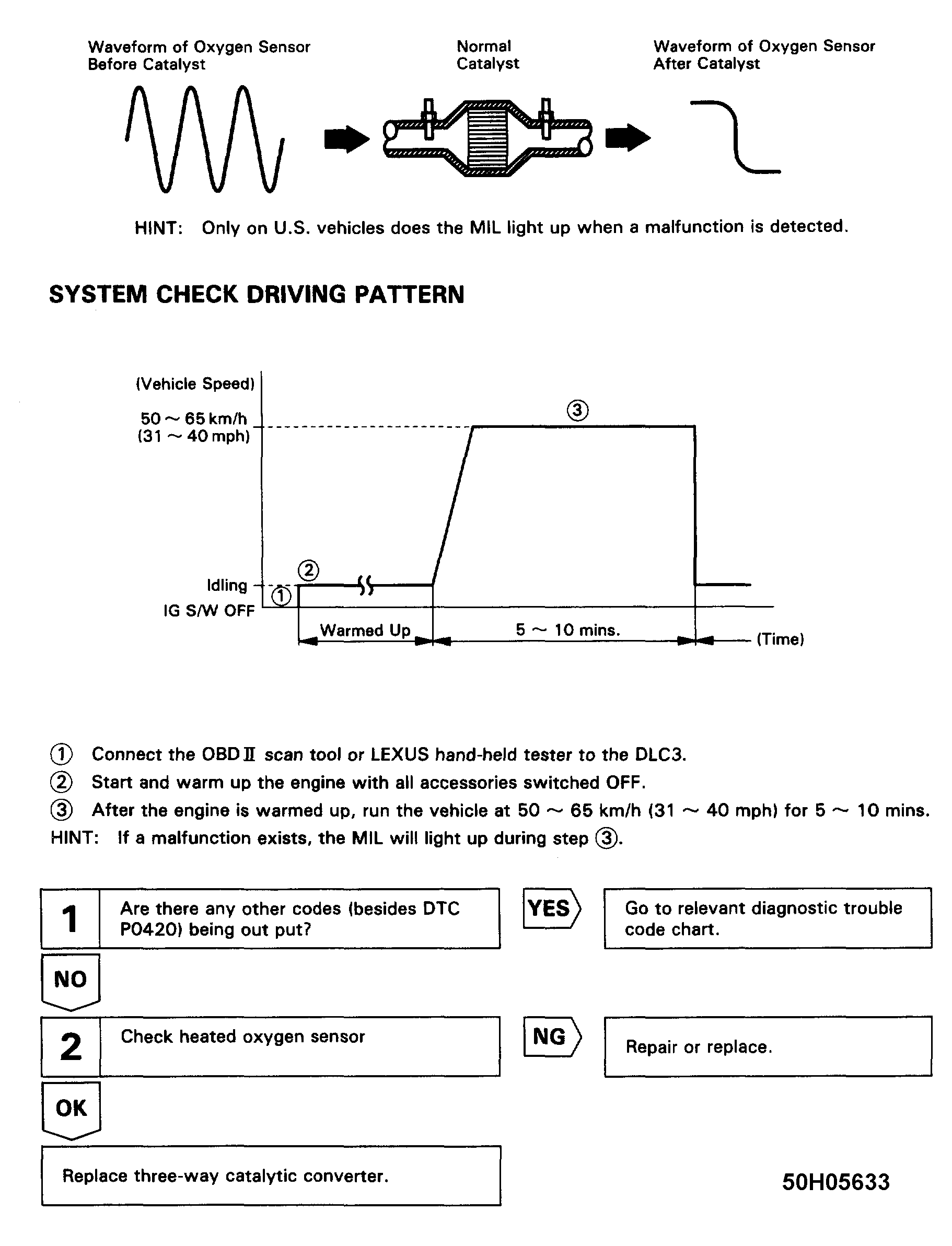

Fig 1: Code P0420 Flow Chart - Catalyst System Efficiency Below Threshold
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
