Code P0500 - Vehicle Speed Sensor Malfunction
Code P0500 - Vehicle Speed Sensor Malfunction

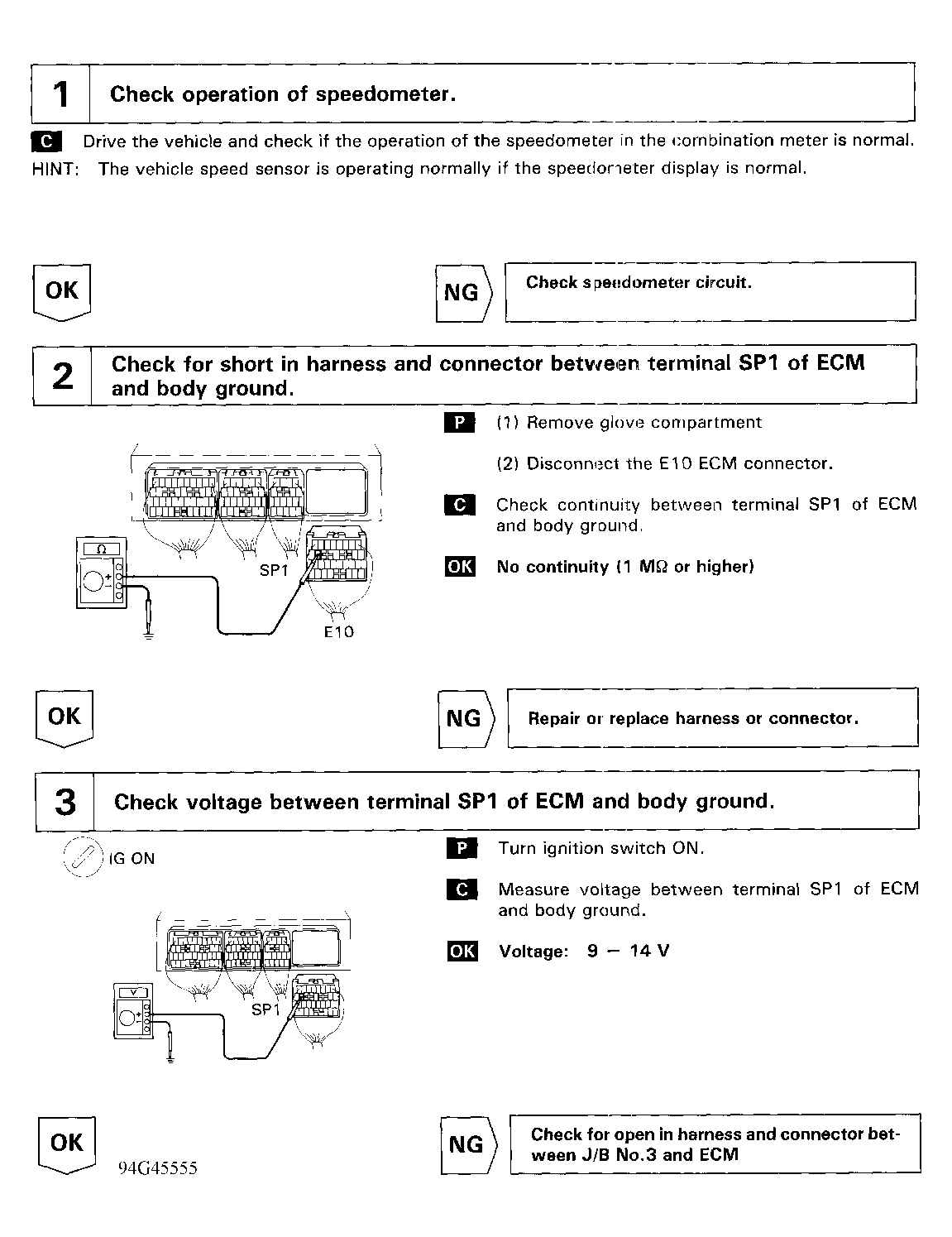

Fig 1: Code P0500 Flow Chart (1 Of 2) Vehicle Speed Sensor Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Code P0500 Flow Chart (2 Of 2) Vehicle Speed Sensor Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
