Engine Controls - Tests W/Codes - OBD-II
›
Trouble Code Charts
›
Code P0505 - Idle Control System Malfunction
Code P0505 - Idle Control System Malfunction

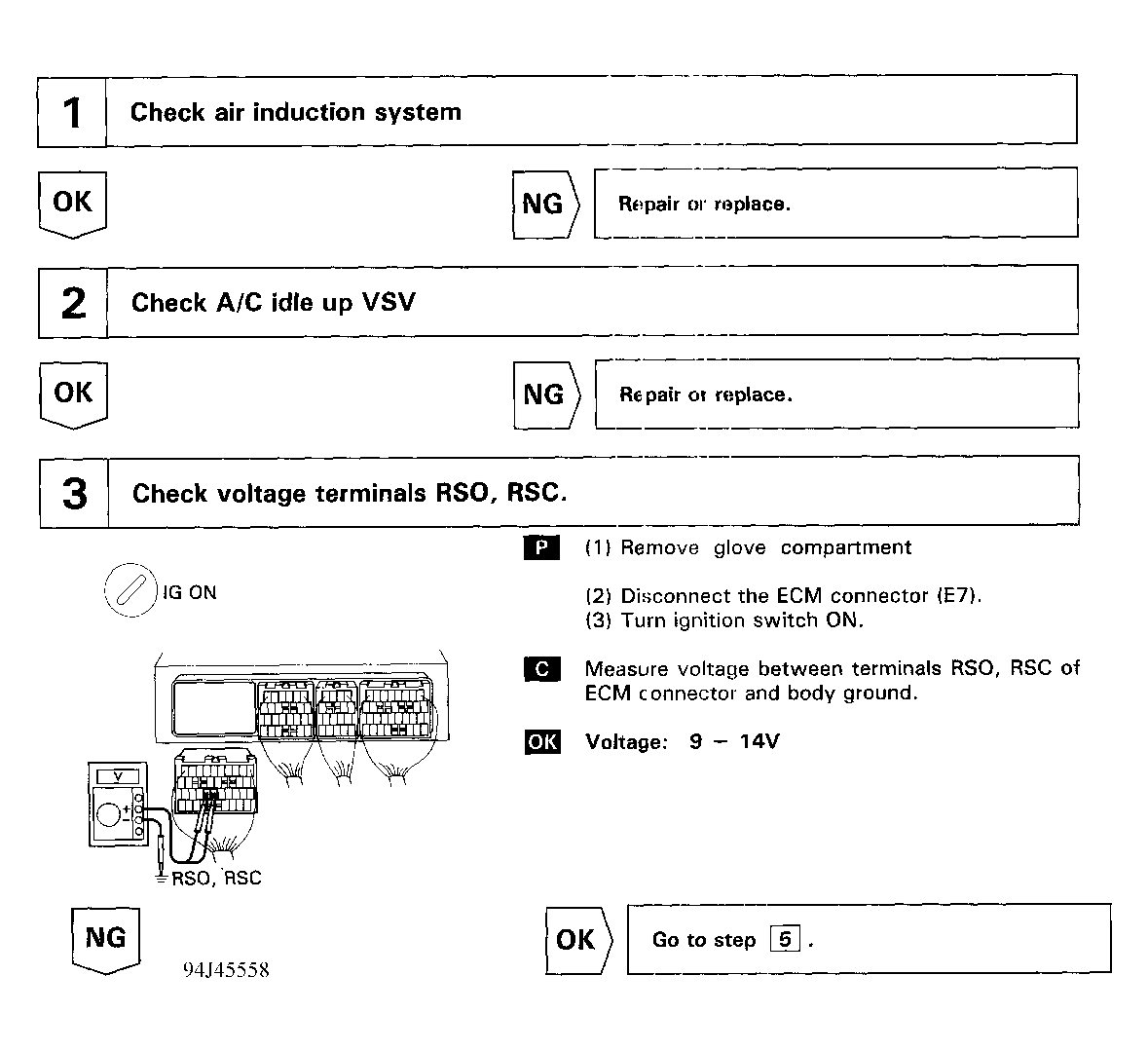

Fig 1: Code P0505 Flow Chart (1 Of 3) Idle Control System Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

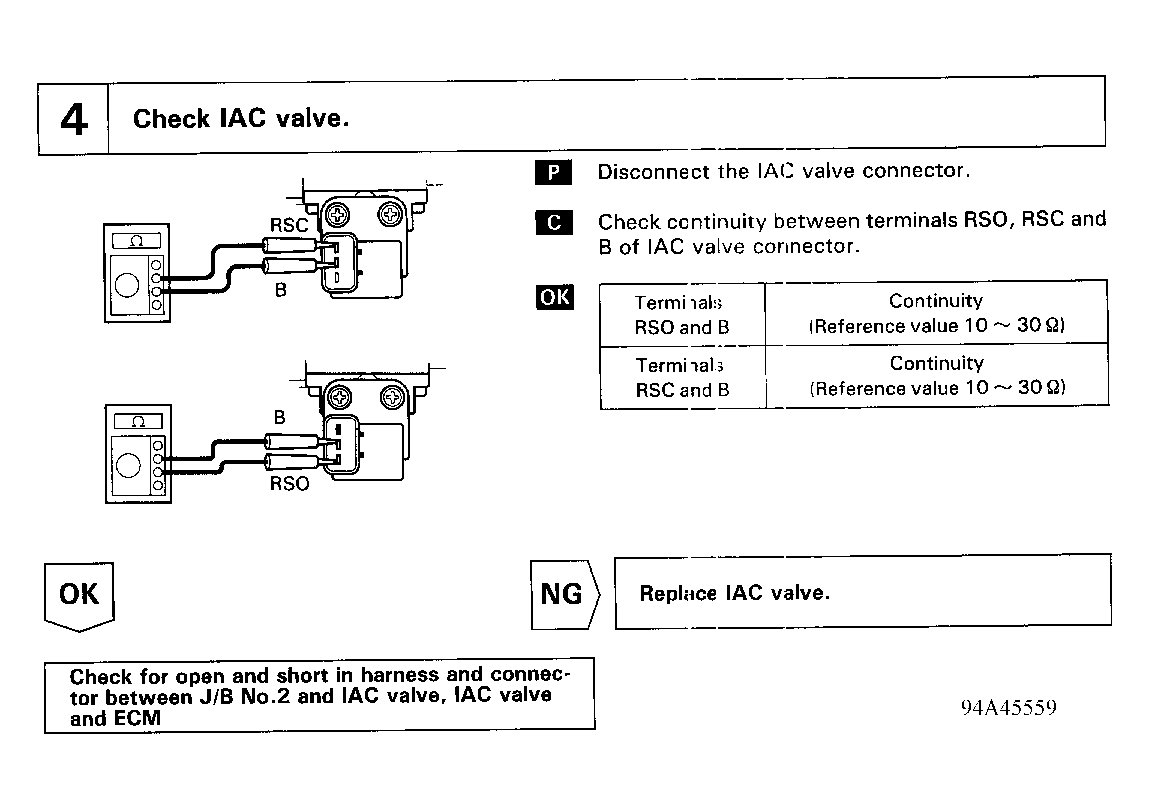

Fig 2: Code P0505 Flow Chart (2 Of 3) Idle Control System Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

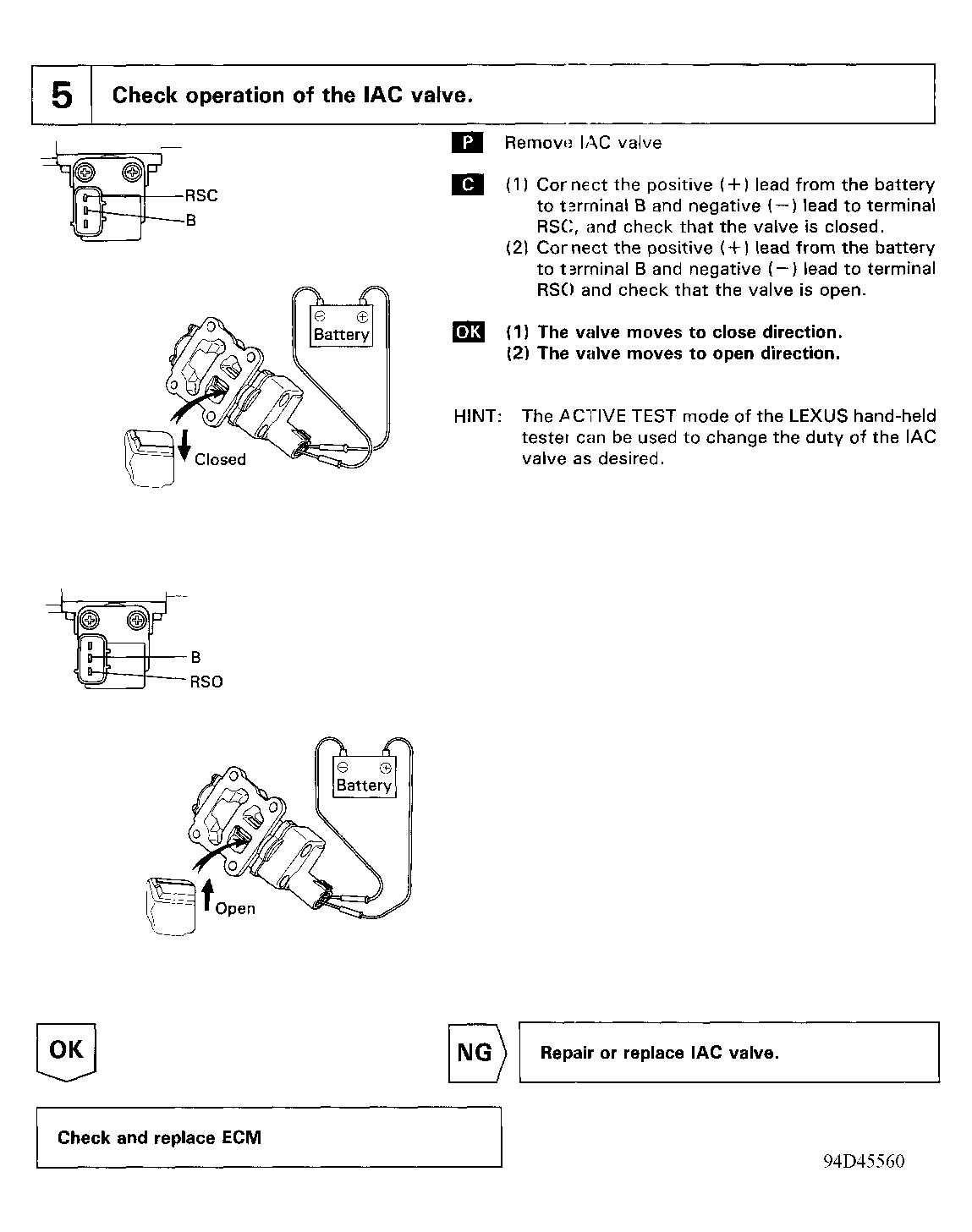

Fig 3: Code P0505 Flow Chart (3 Of 3) Idle Control System Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
