Code P1500 - Starter Signal Circuit Malfunction
Code P1500 - Starter Signal Circuit Malfunction

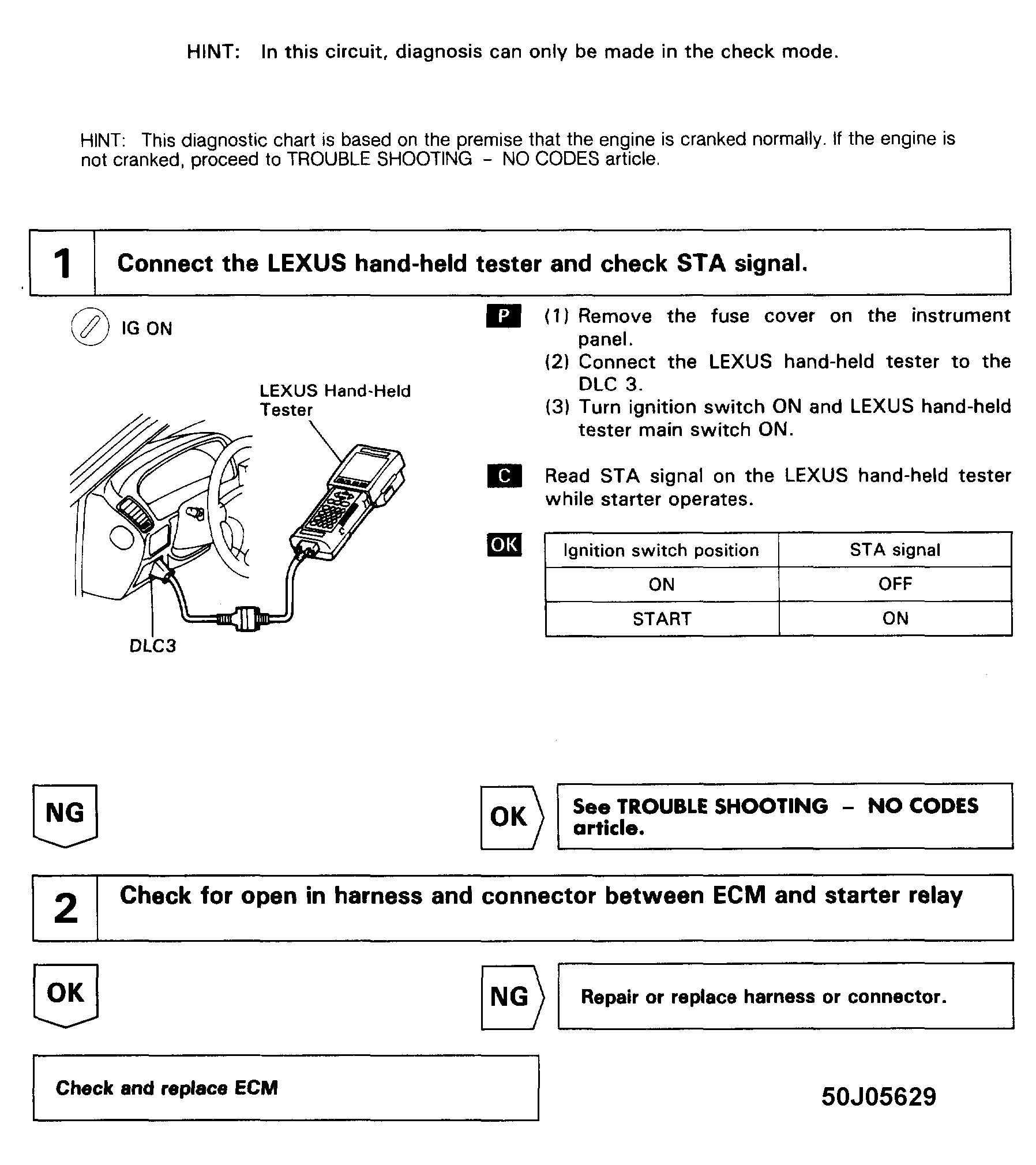

Fig 1: Code P1500 Flow Chart - Starter Signal Circuit Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
