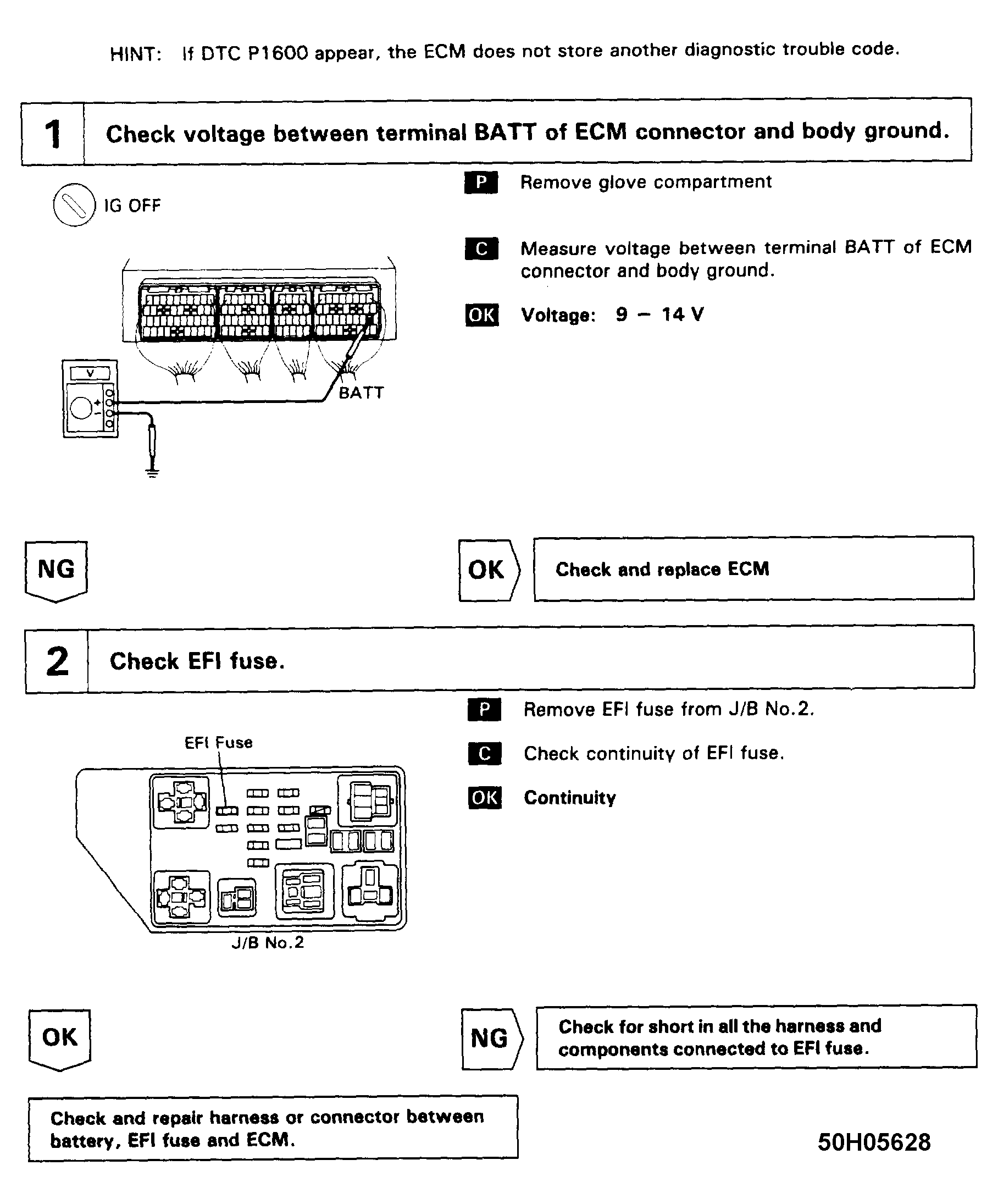

Circuit Description

Battery voltage is supplied to BATT terminal at ECM at all times. This circuit is used by diagnostic trouble code memory and air/fuel ratio adaptive control value memory. Code is set if there is an open in backup power source circuit. Possible causes are:
