A/C Control Assembly Service Parts (AC006-96)

Publication date: 1996-08-09
Reference number: AC006-96

A/C CONTROL ASSEMBLY SERVICE PARTS

TECHNICAL SERVICE BULLETIN

Reference Number(s): AC006-96, Date of Issue: August 9, 1996

LEXUS:	1992-1995 ES 300
GROUP:	Heating & Air Conditioning
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

1992-1995 ES 300 A/C CONTROL ASSEMBLY SERVICE PARTS

To allow repairs to the A/C Control Assembly, service parts are now available. The following information on parts and troubleshooting will aid you in addressing complaints with the LCD display, night illumination or switch indicators.

BULLETIN CONTENT

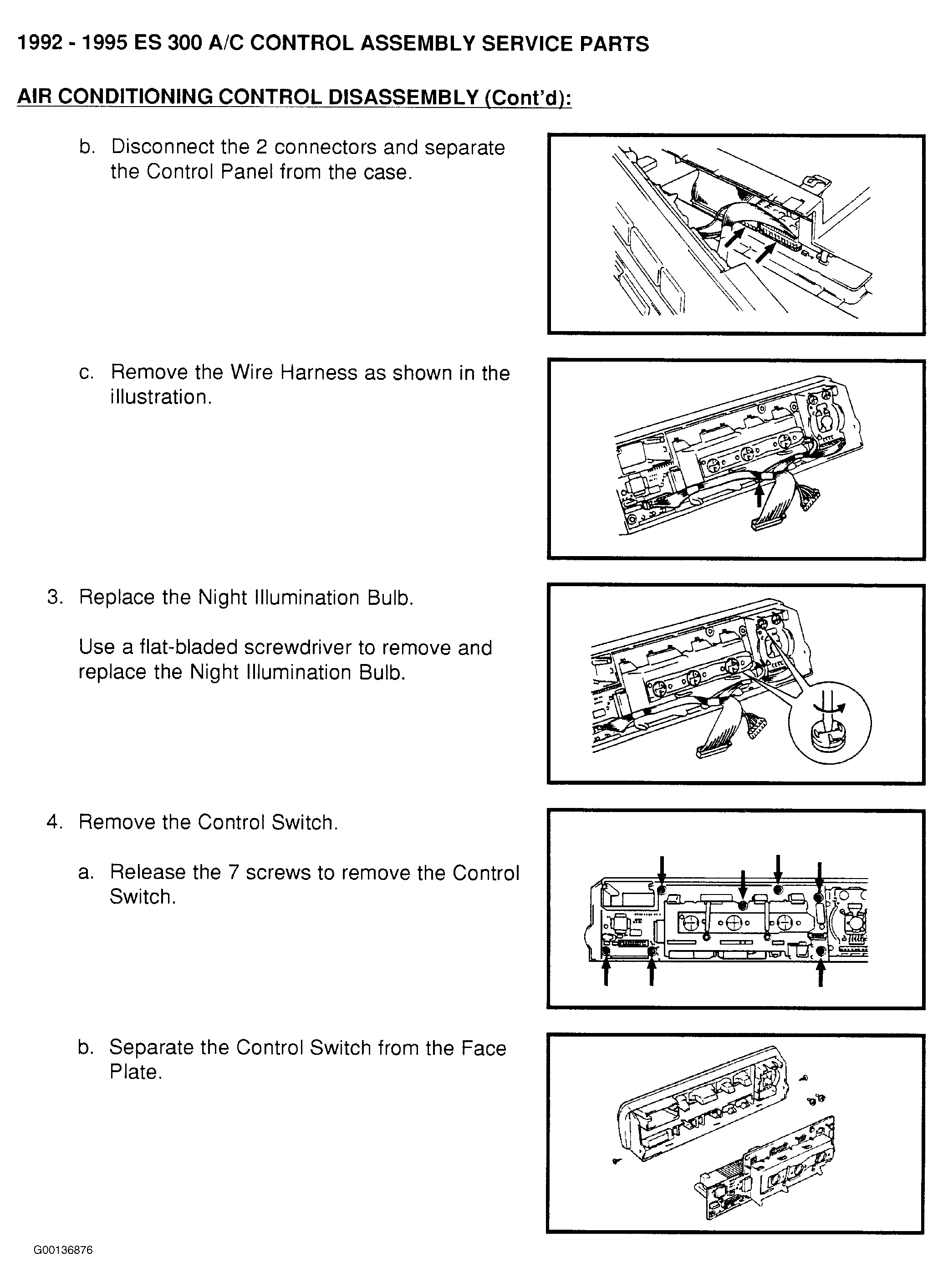

Fig 1: Page 1 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

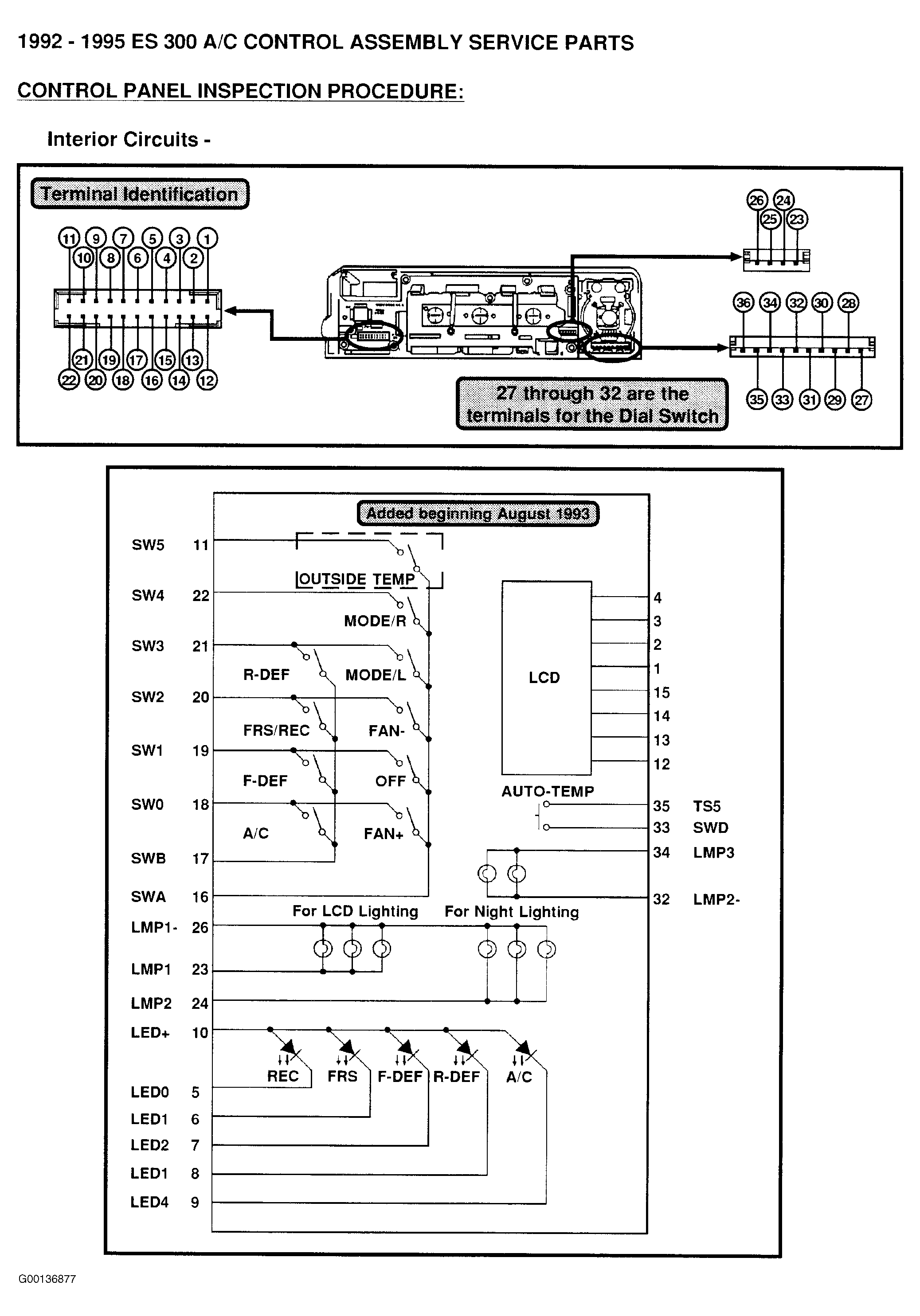

Fig 2: Page 2 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

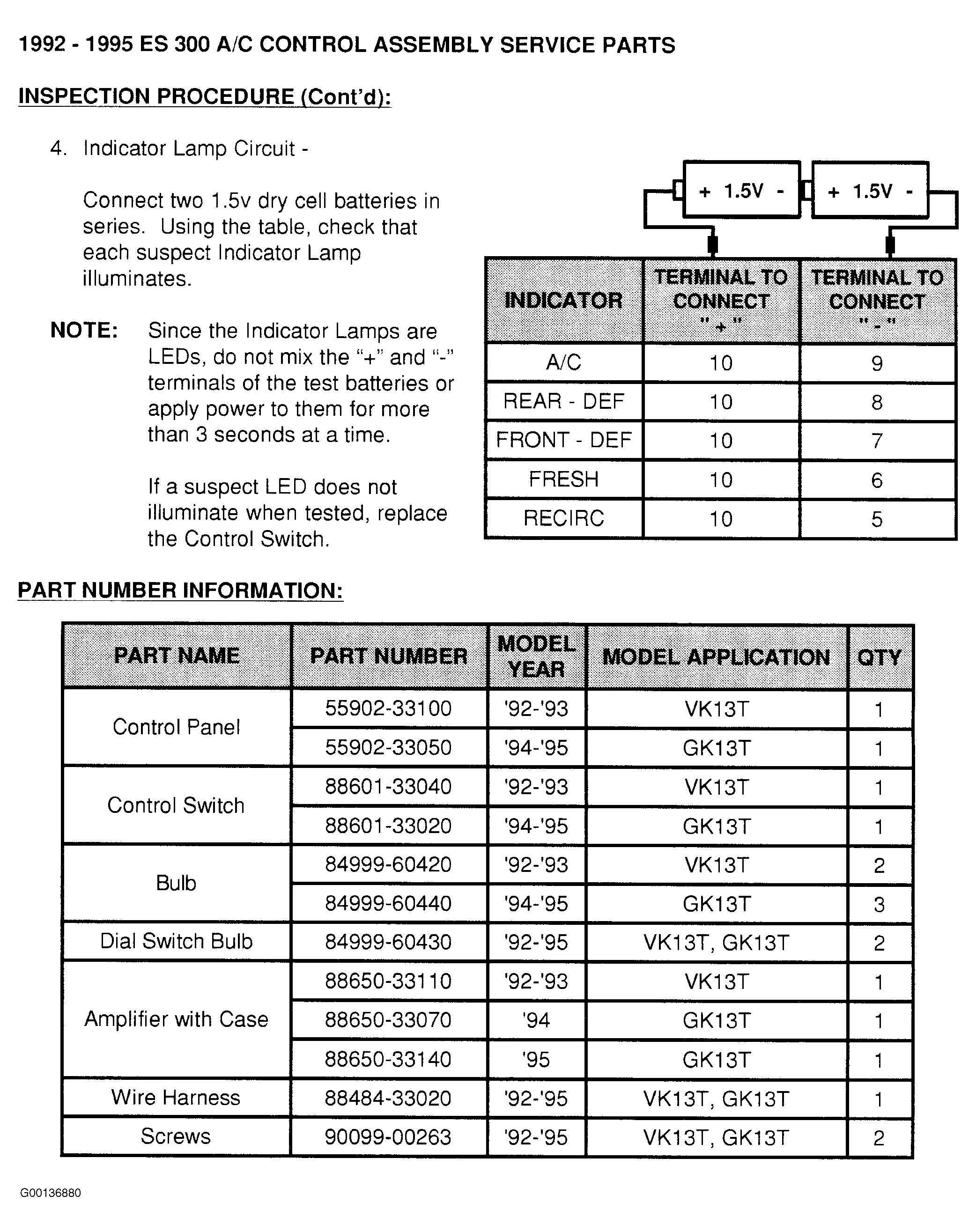

Fig 3: Page 3 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

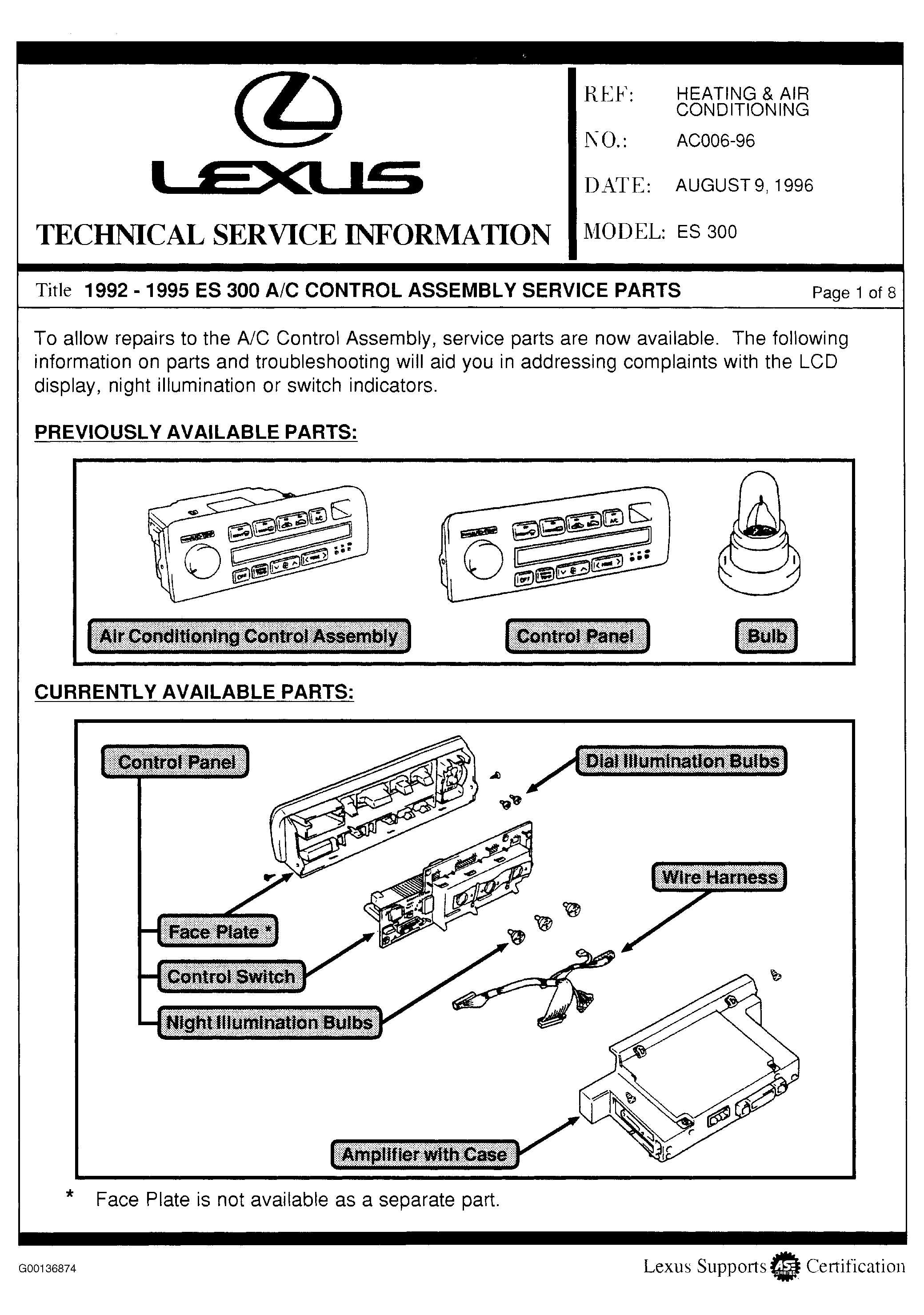

Fig 4: Page 4 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

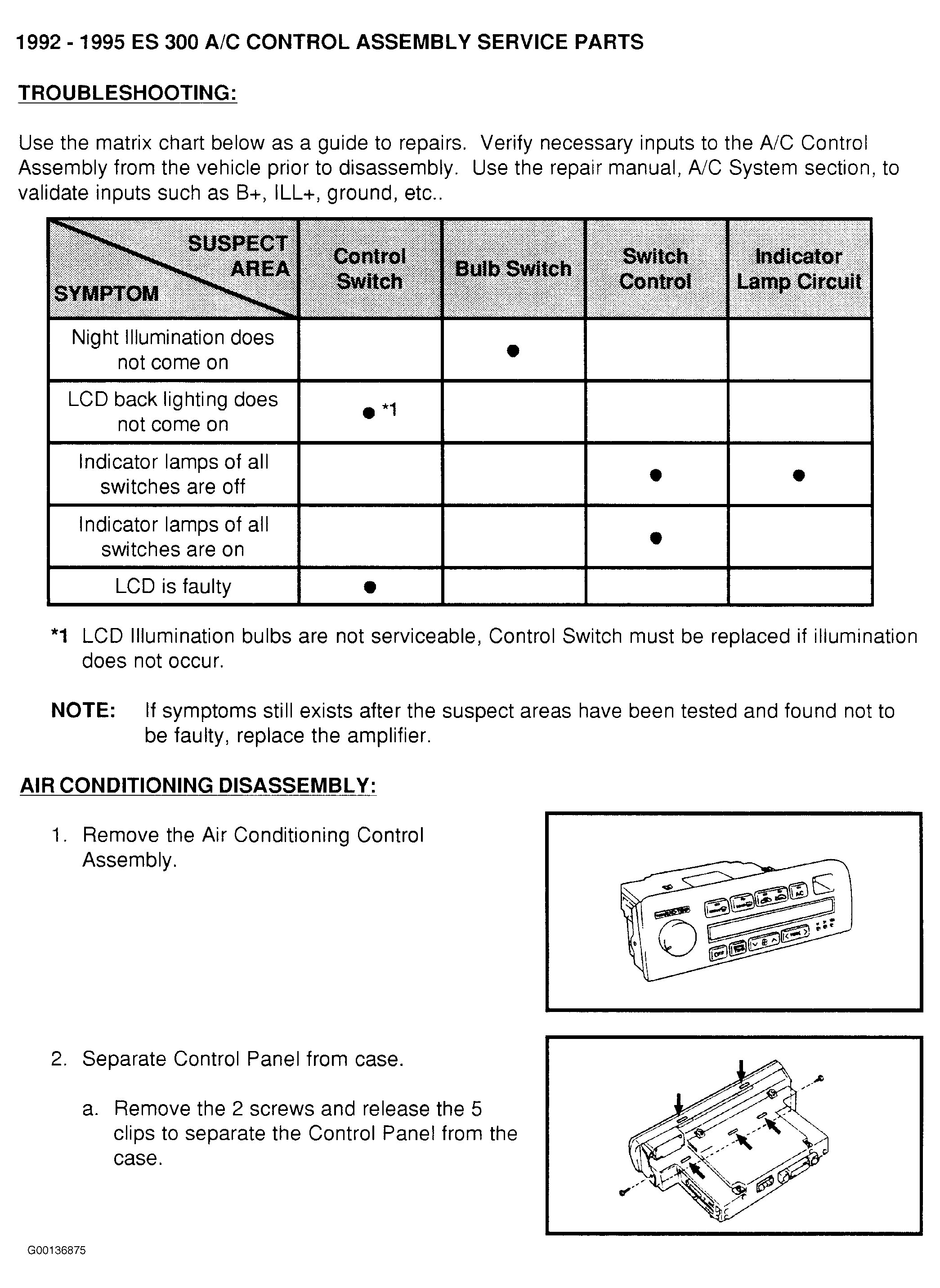

Fig 5: Page 5 of Bulletin

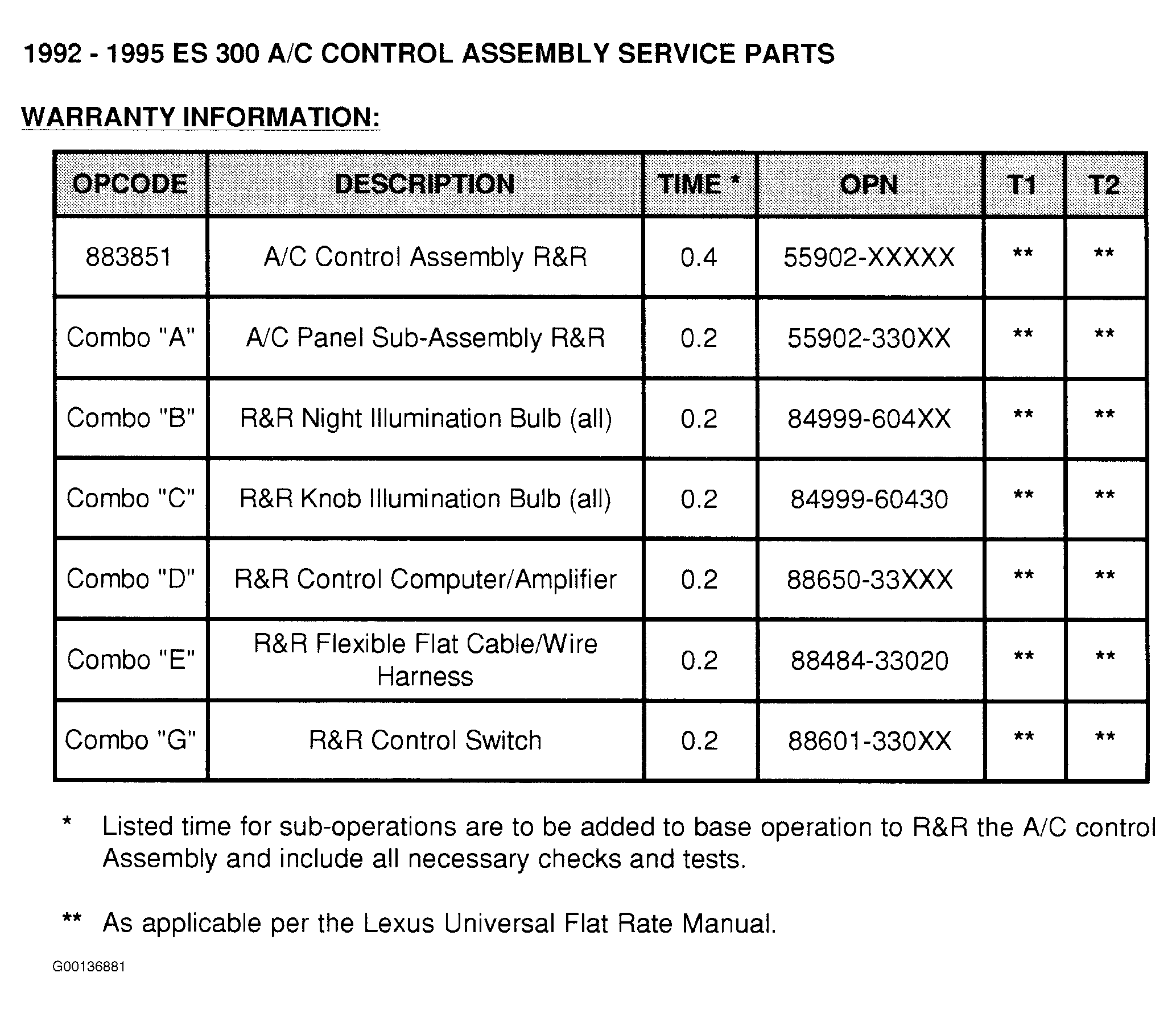

Fig 6: Page 6 of Bulletin

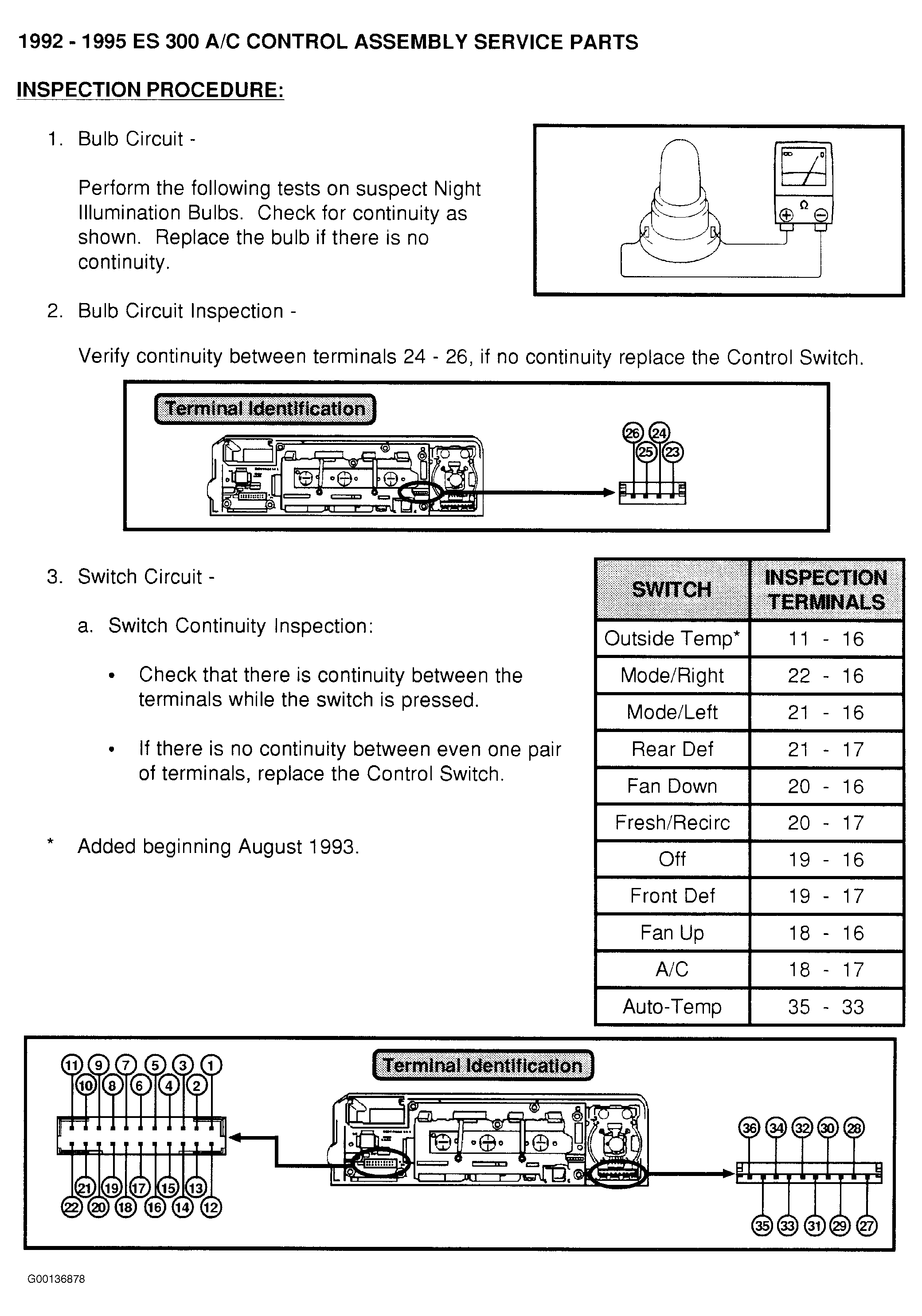

Fig 7: Page 7 of Bulletin

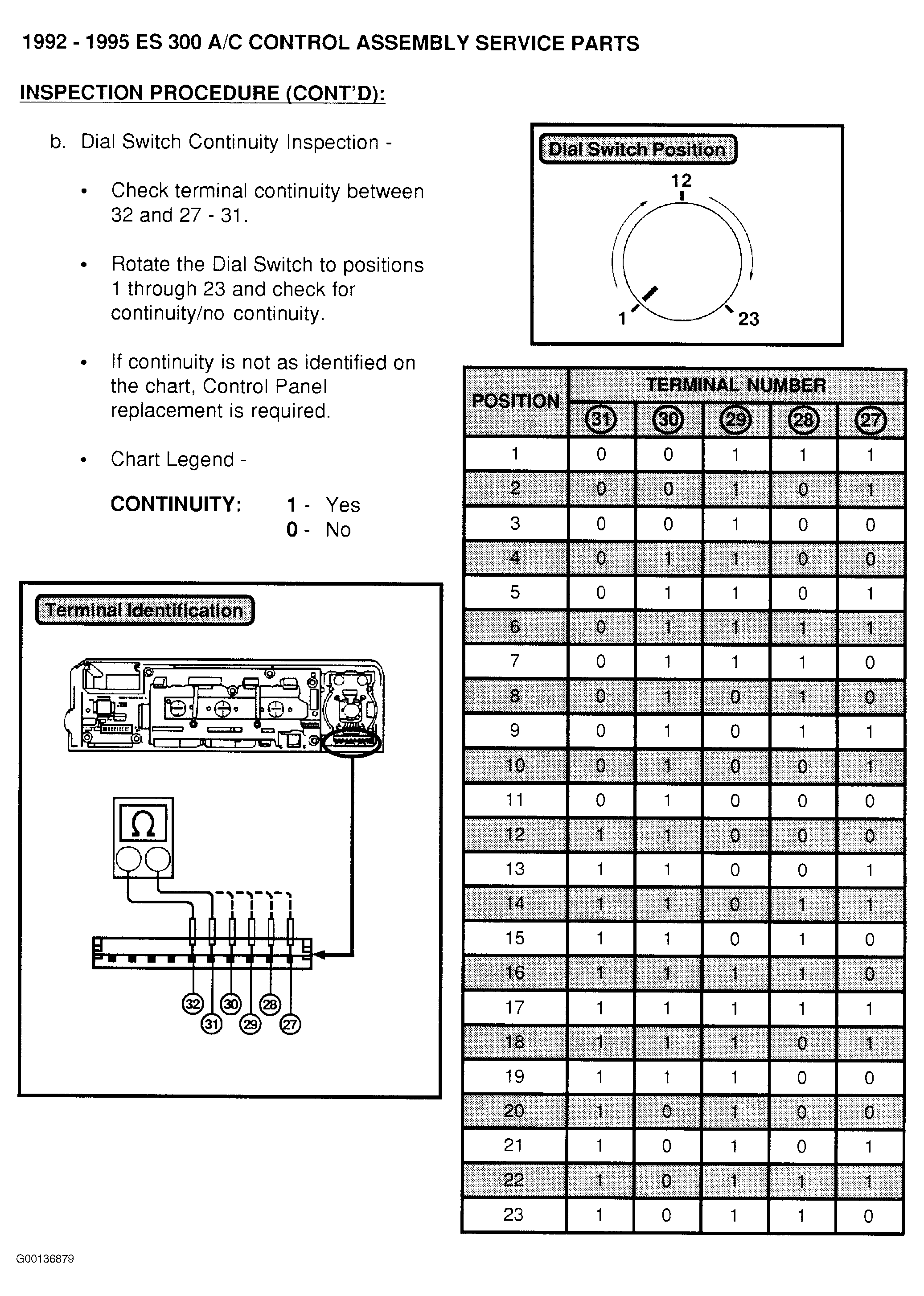

Fig 8: Page 8 of Bulletin
