TRAC Indicator Light Circuit
TRAC Indicator Light Circuit

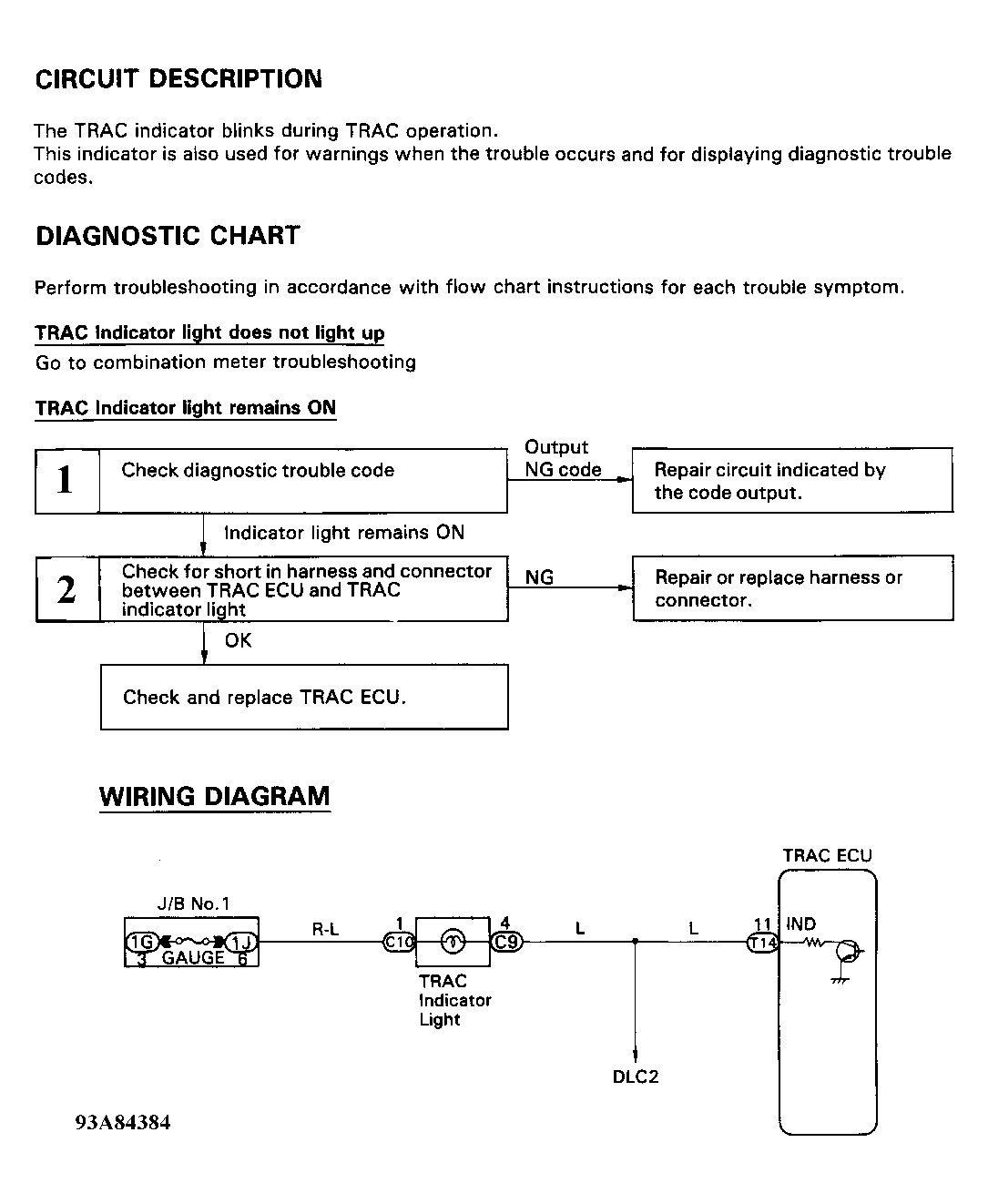

Fig 1: TRAC Indicator Light Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
