Repair and Diagnosis
›
Brakes
›
Traction Control
›
Traction Control System
›
Diagnostic Charts
›
Tc TERMINAL CIRCUIT
Tc TERMINAL CIRCUIT

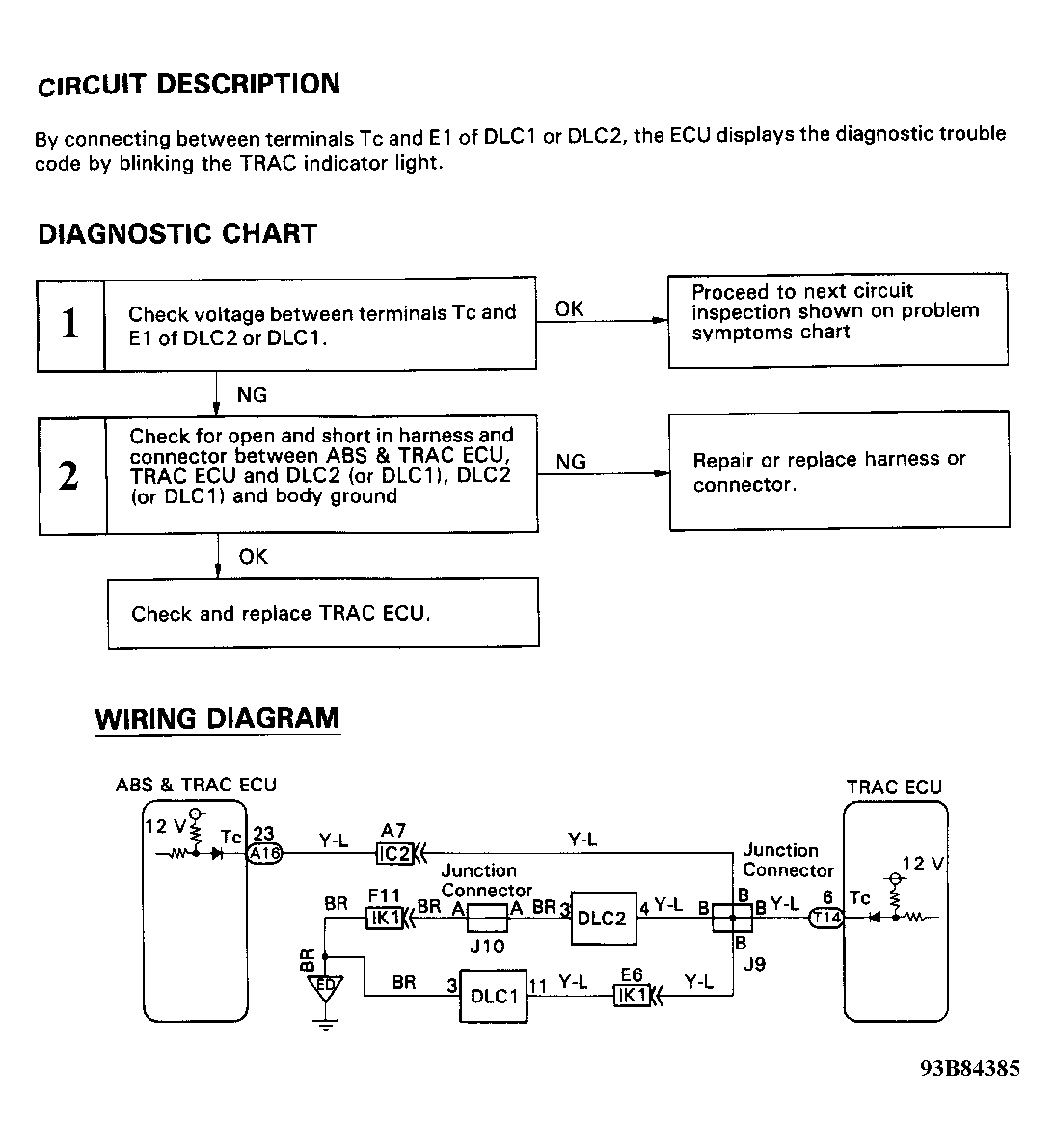

Fig 1: Tc Terminal Circuit (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

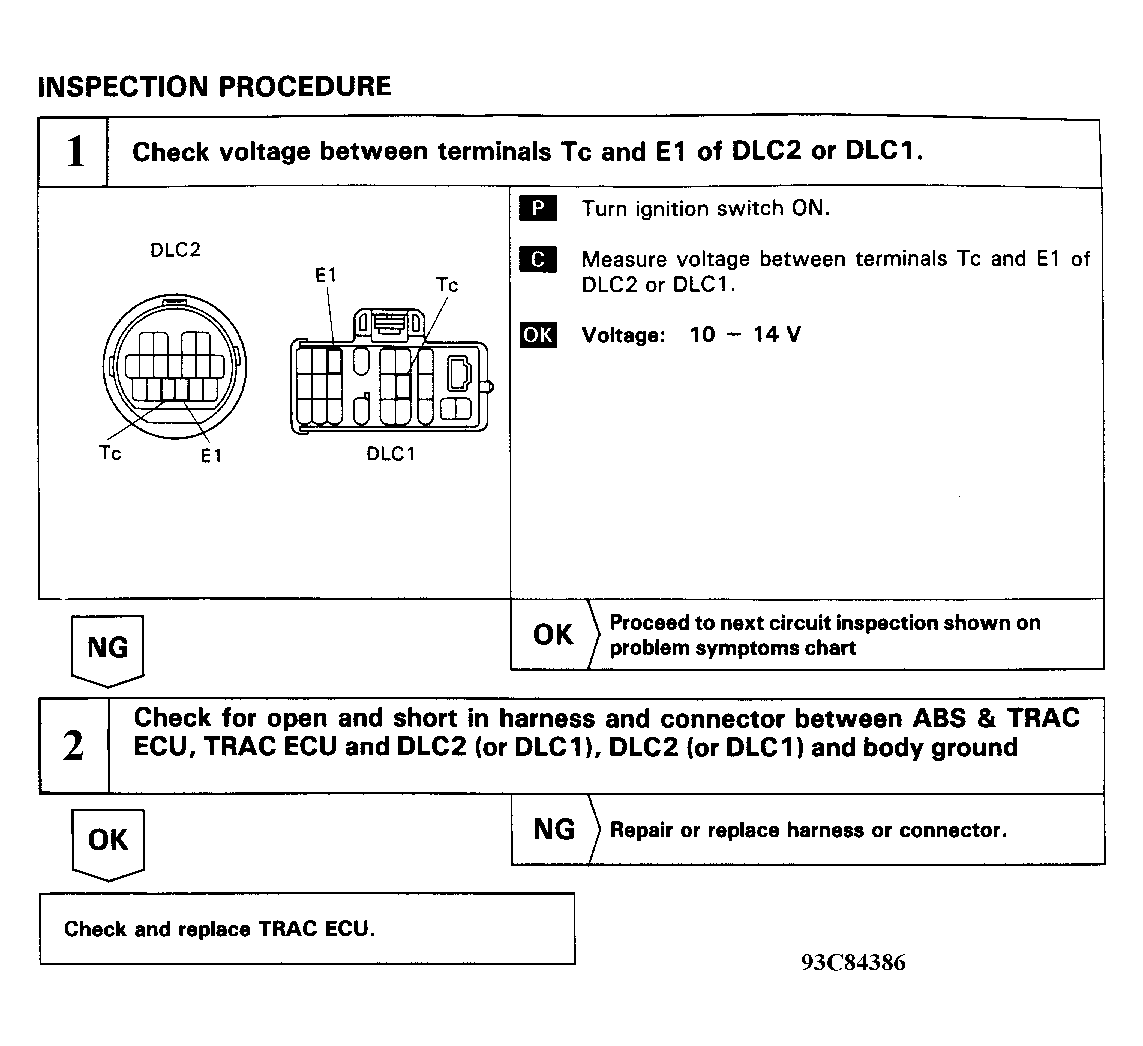

Fig 2: Tc Terminal Circuit (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
