Engine Compartment Fuse Panel Identification

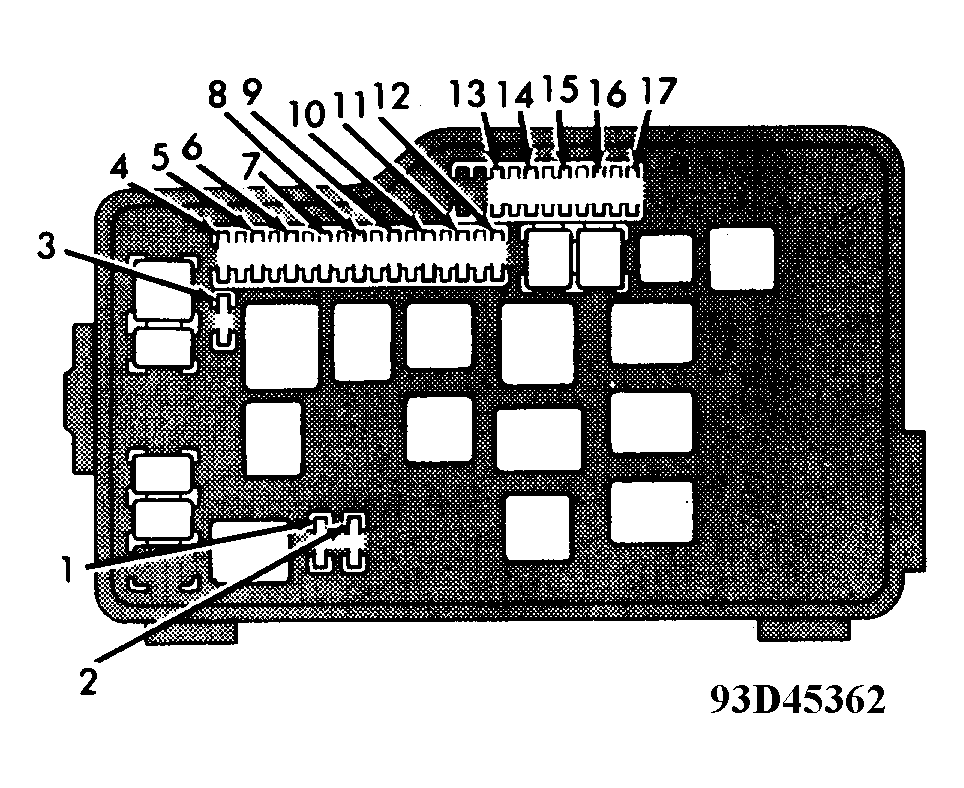

Fig 1: Engine Compartment Fuse Panel Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

• 1 - 15 Amp  Foglights
• 2 - 7.5 Amp  Daytime Running Lights (Canada)
• 3 - 10 Amp  Traction Control System
• 4 - 10 Amp  Interior/Vanity Lights, Sun Roof, Cruise Control, Open Door Warning, Personal/Trunk/Door/Footwell Lights, Ignition Lights, Clock, ABS System, Power Antenna
• 5 - 7.5 Amp  Wireless Remote Locking System, ABS System, Traction Control, Cruise Control, Daytime Lights
• 6 - 7.5 Amp  Charging System
• 7 - 15 Amp  Fuel Injection System, SRS System, Charge Light, Starting System, Electronic Ignition, Distributor Ignition, Gauges & Meters, Service Reminder Indicators, Warning Buzzers
• 8 - 15 Amp  Telephone
• 9 - 20 Amp  Emergency Flashers, Horn
• 10 - 20 Amp  Electronic Transmission, Fuel Injection system
• 11 - 25 Amp  Radio, Power Antenna, Cassette Tape/Compact Disc Player
• 12 - 30 Amp  Electronic Ignition, Distributor Ignition
• 13 - 15 Amp  Right Headlight (Low Beam)
• 14 - 15 Amp  Left Headlight (Low Beam)
• 15 - 10 Amp  Right Headlight (Low Beam Canada)
• 16 - 10 Amp  Left Headlight (Low Beam Canada)
• 17 - 30 Amp  Electronic Cooling Fan
