Test 7 - Ignition Switch Circuit

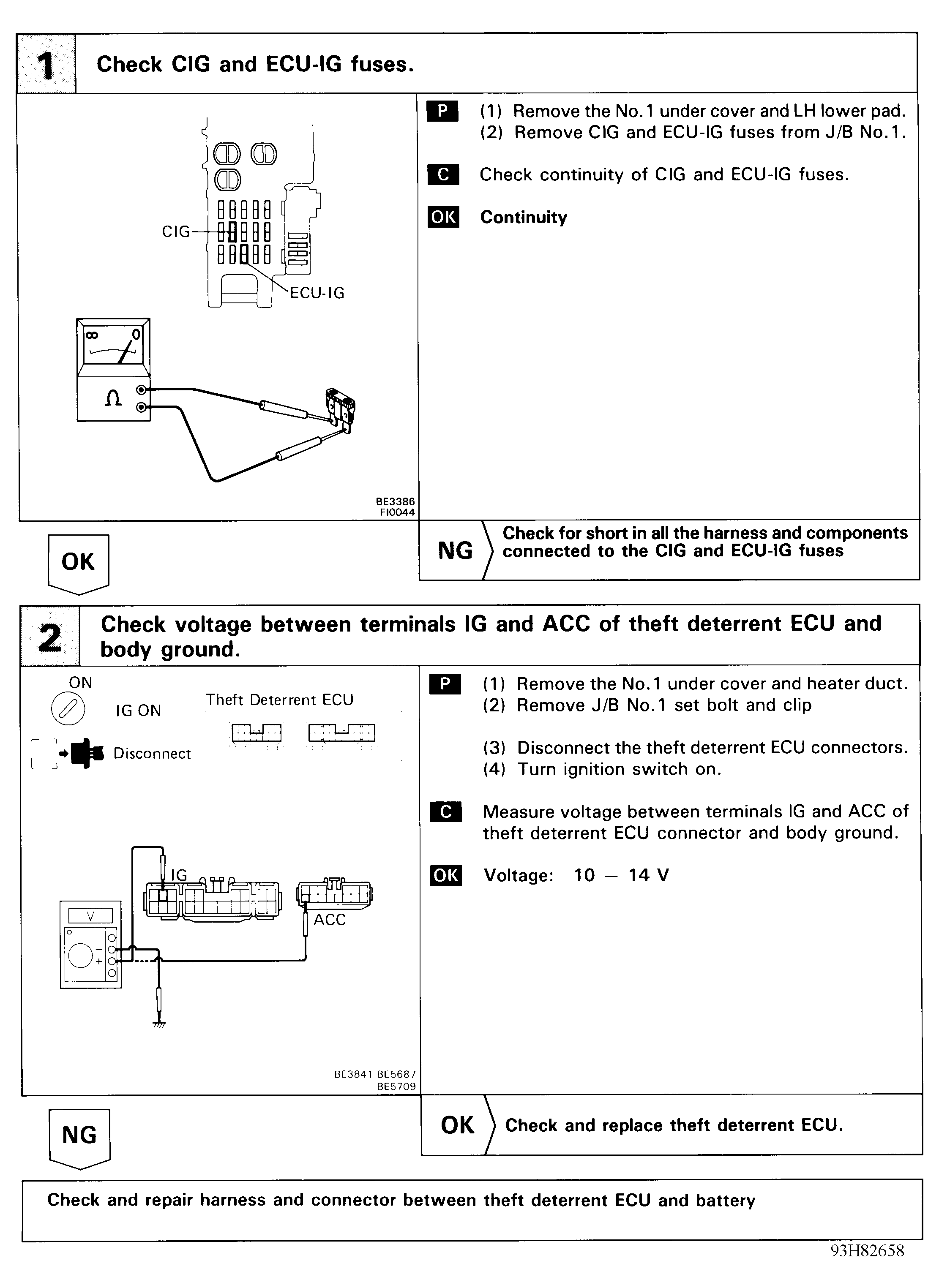

Fig 1: Test 7 - Ignition Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
