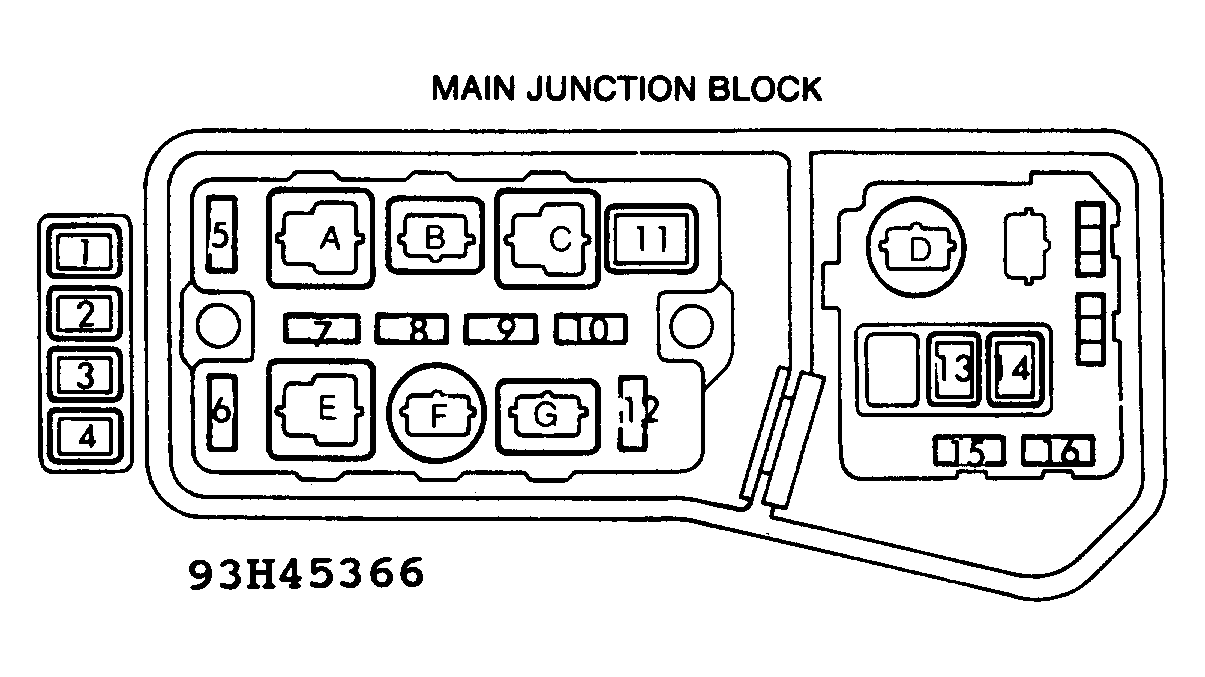

Main Junction Block Relay Identification
WARNING:
Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
- A - Headlight Control
- B - Starter
- C - Engine Main
- D - A/C Magnetic Clutch
- E - Heater Main
- F - Horn
- G - EFI Main
