Removal & Installation: Components

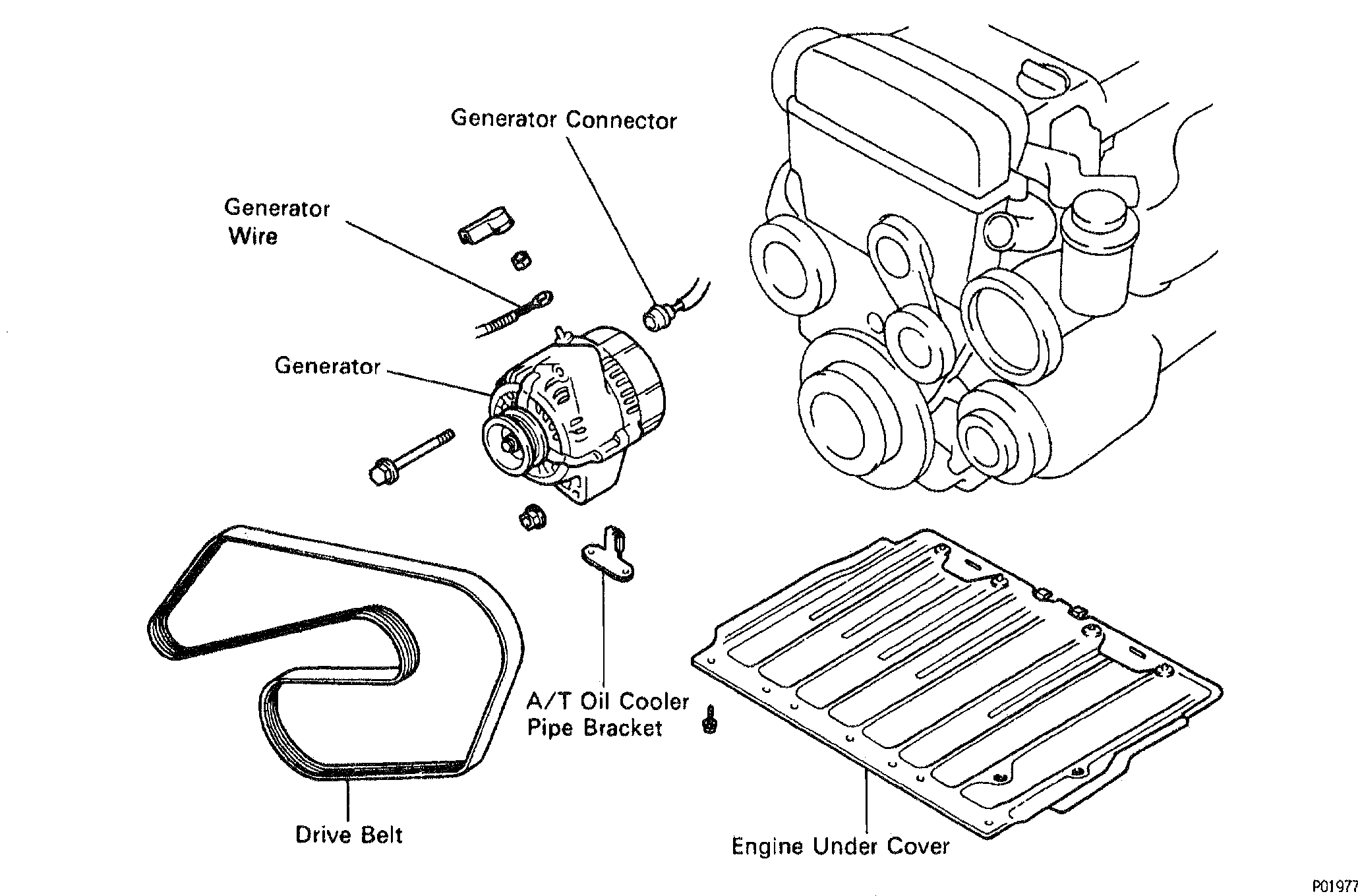

Fig 1: View Of Generator Removal & Installation Components

G00498795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
