Code 12 - Rpm Signal Circuit

Fig 1: Code 12 Flow Chart - 1 Of 2 (SC300) RPM Signal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

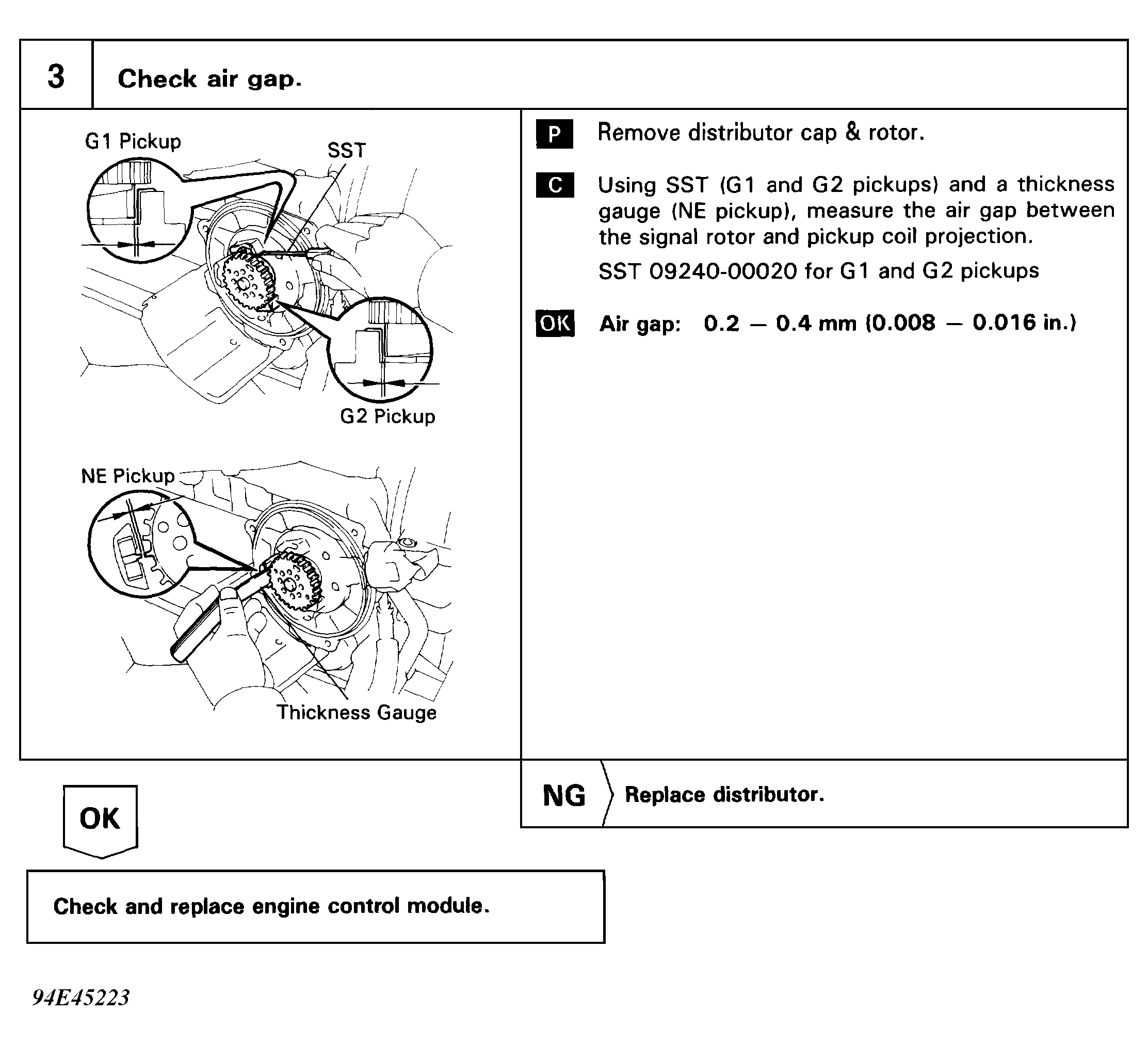

Fig 2: Code 12 Flow Chart - 2 Of 2 (SC300) RPM Signal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
