Code 47 - Sub-TPS Signal

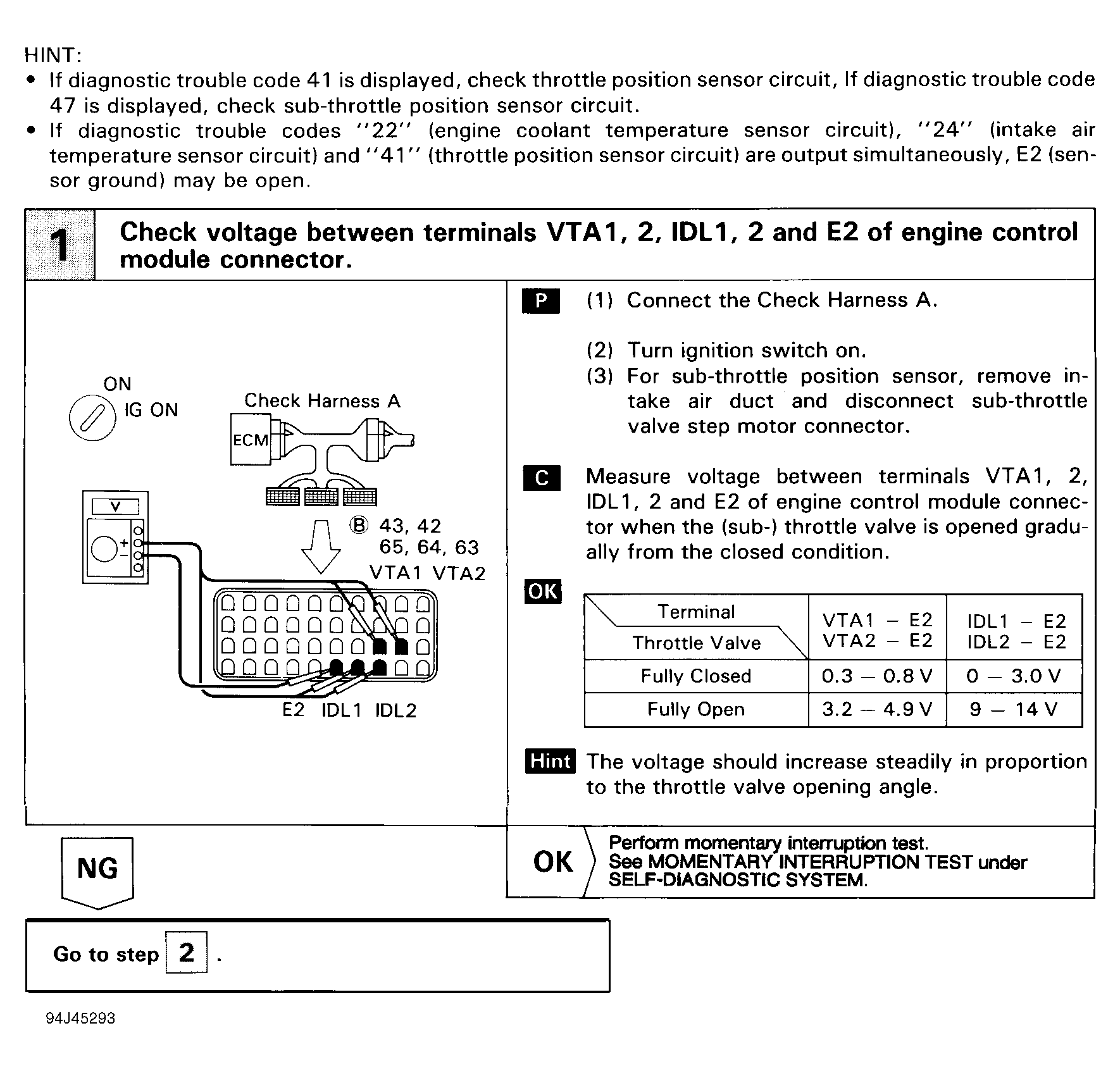

Fig 1: Code 47 Flow Chart - 1 Of 2 (SC300) TPS Signal
G94J45293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

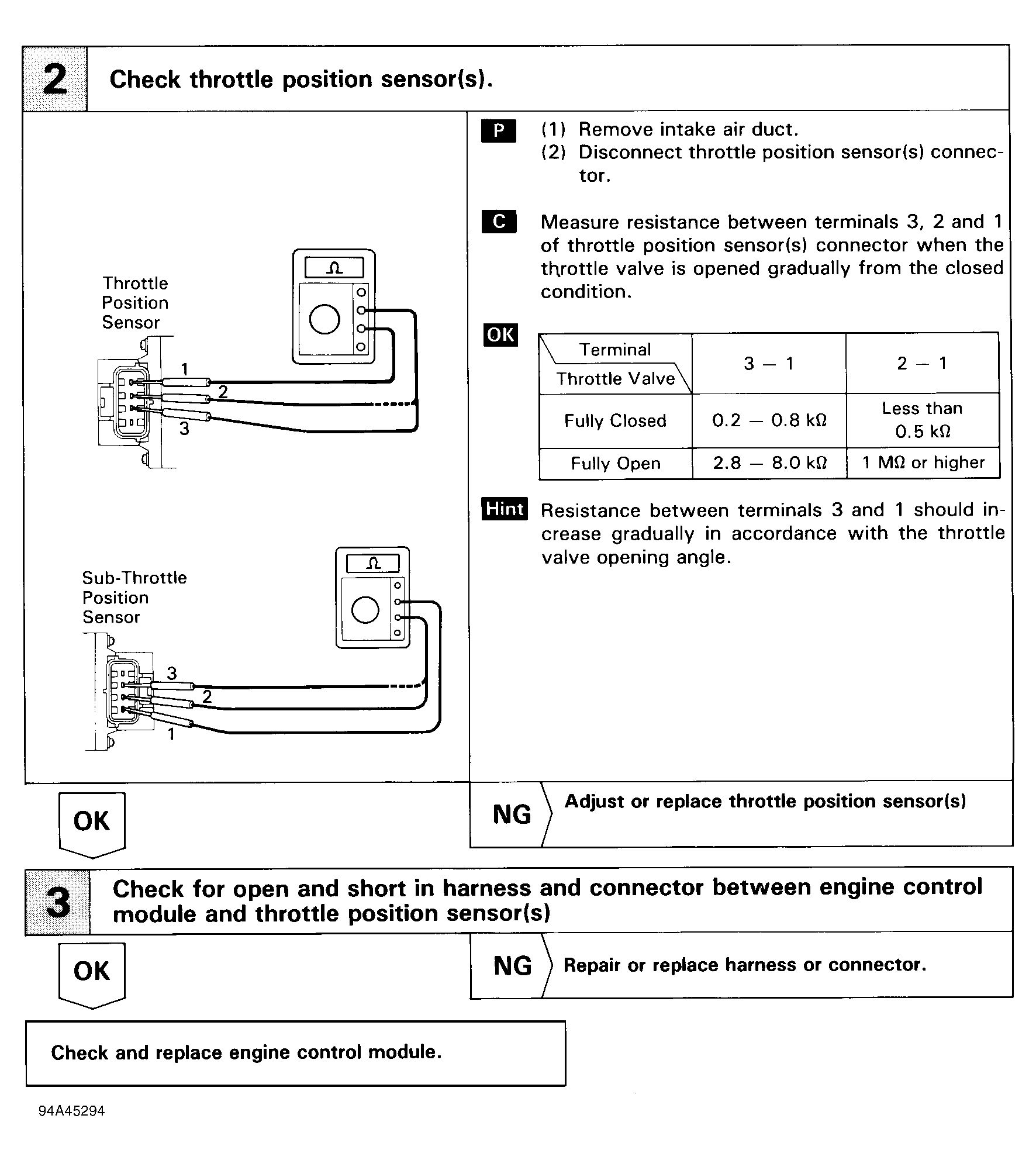

Fig 2: Code 47 Flow Chart - 2 Of 2 (SC300) TPS Signal
G94A45294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
