Test 2 - Starter Relay Circuit
Test 2 - Starter Relay Circuit

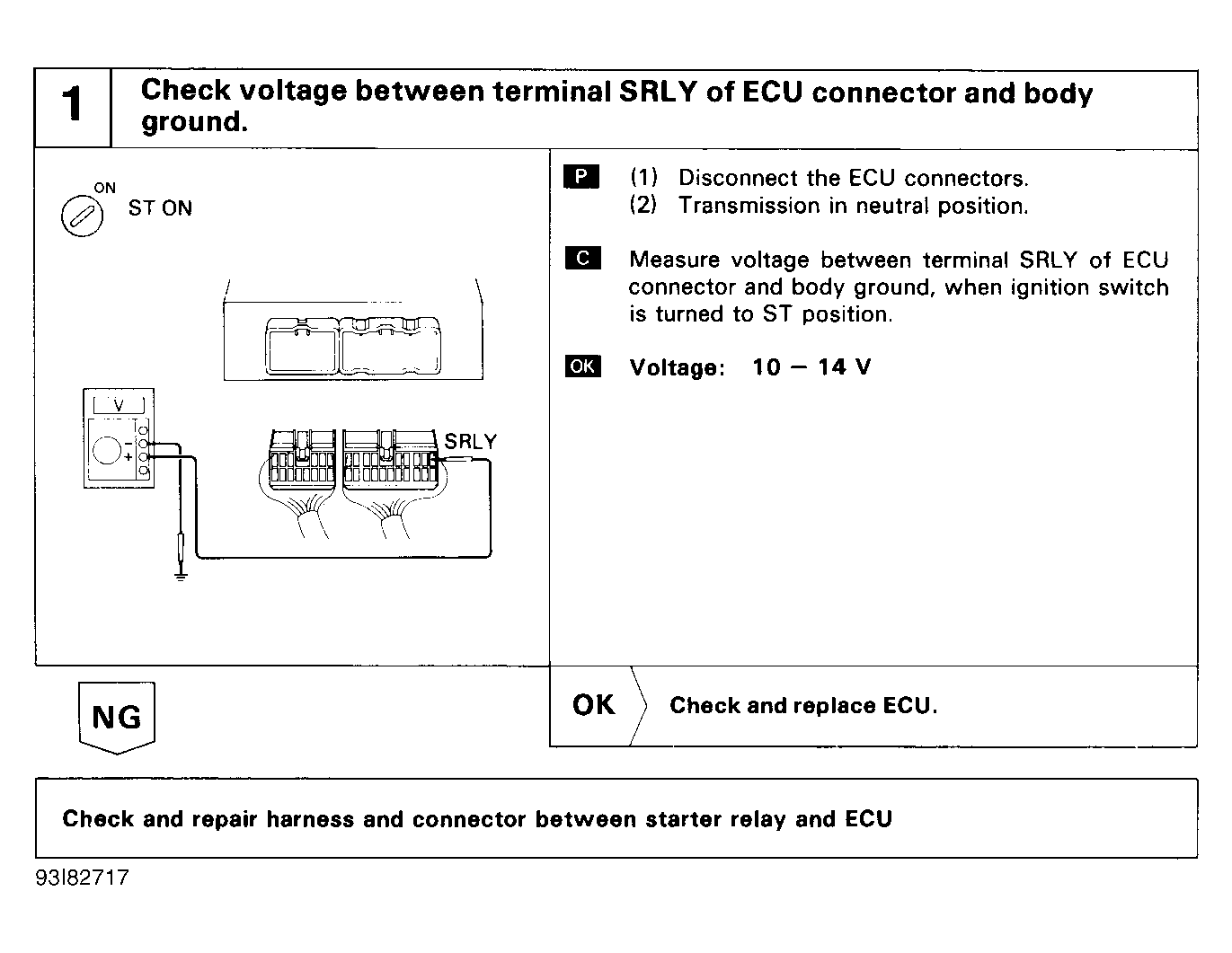

Fig 1: Test 2 - Starter Relay Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
