Code 41 - IG Power Source Circuit

Fig 1: Code 41 - IG Power Source Circuit (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

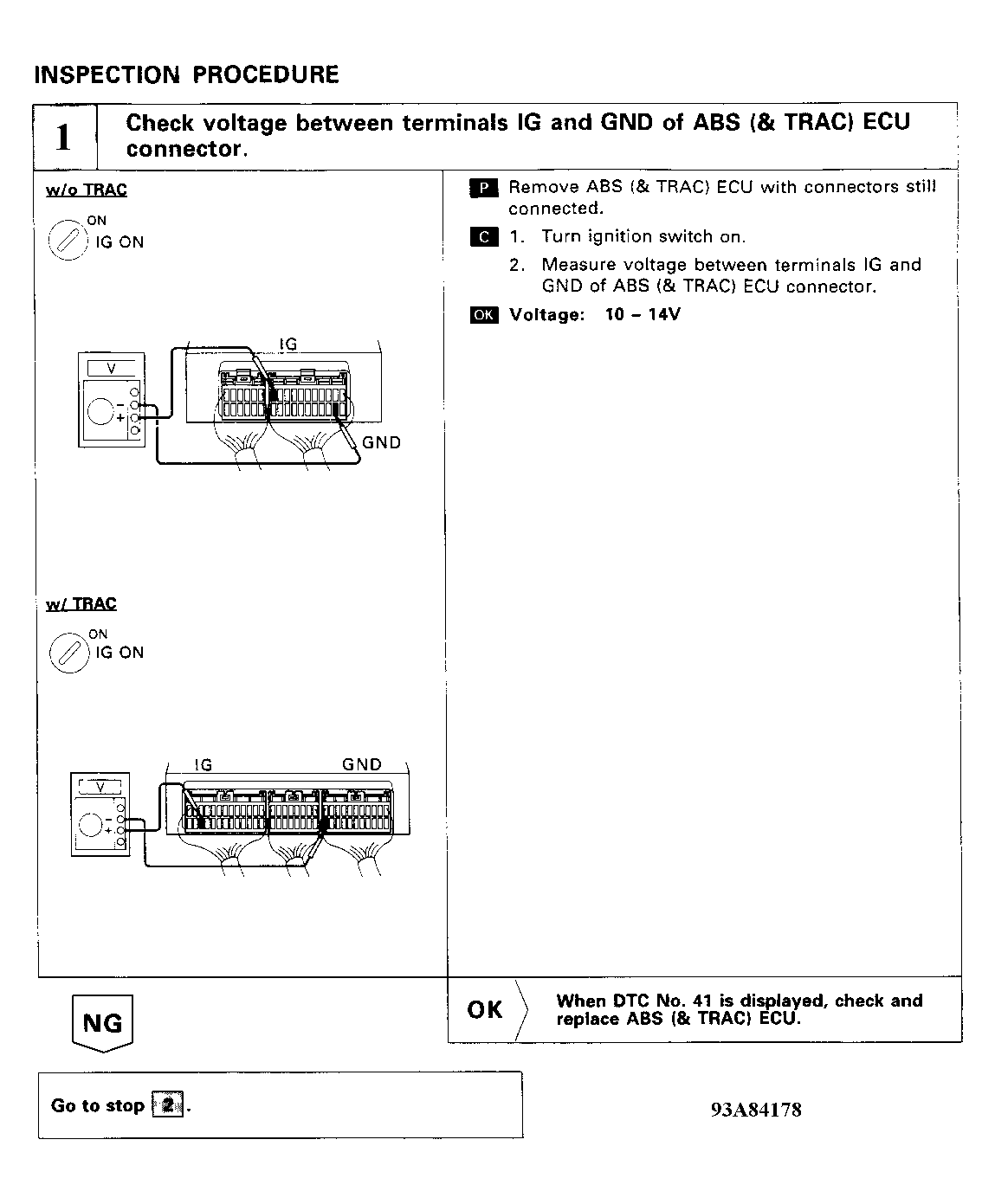

Fig 2: Code 41 - IG Power Source Circuit (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

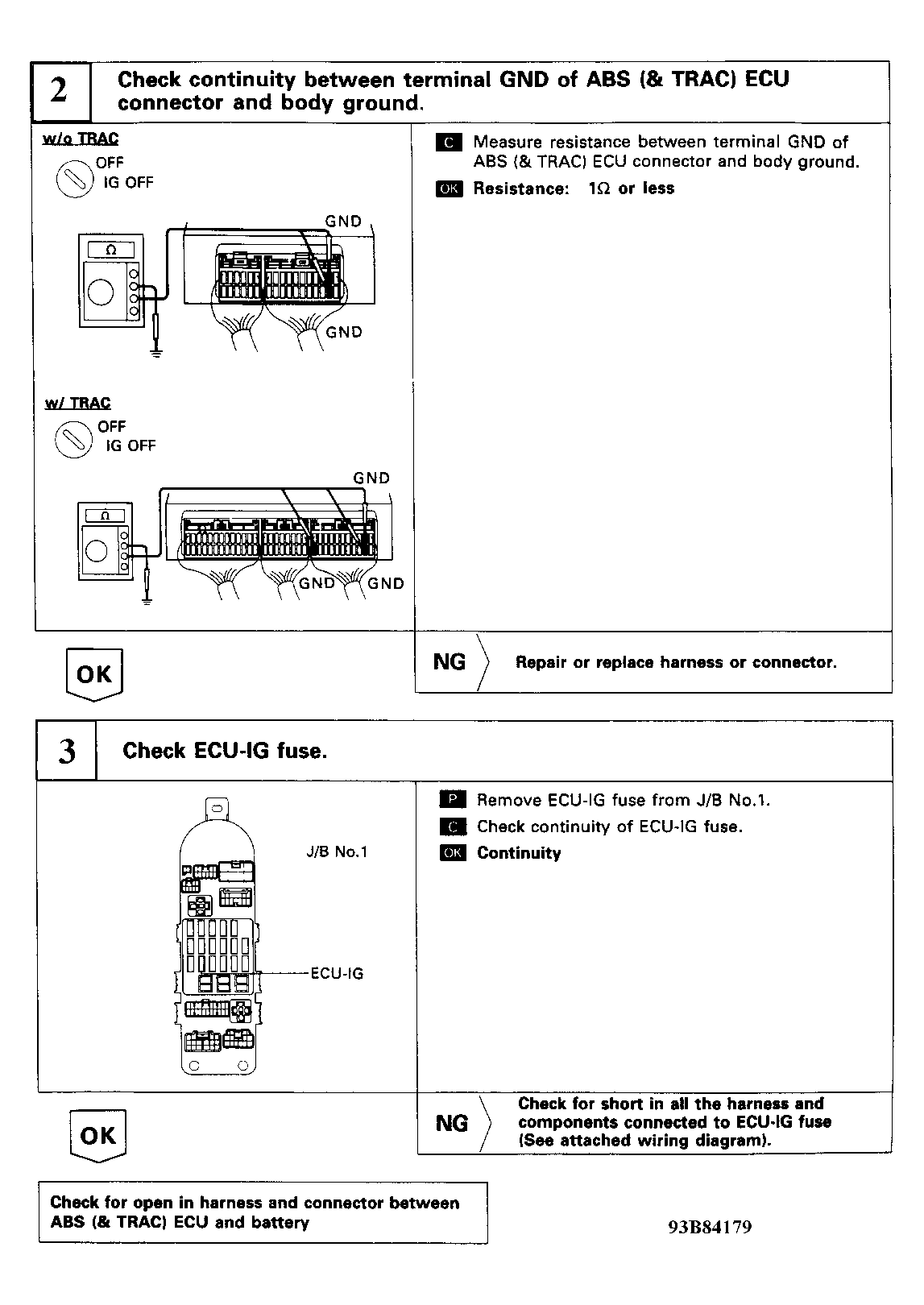

Fig 3: Code 41 - IG Power Source Circuit (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
