Codes 31-36 - Speed Sensor Circuit

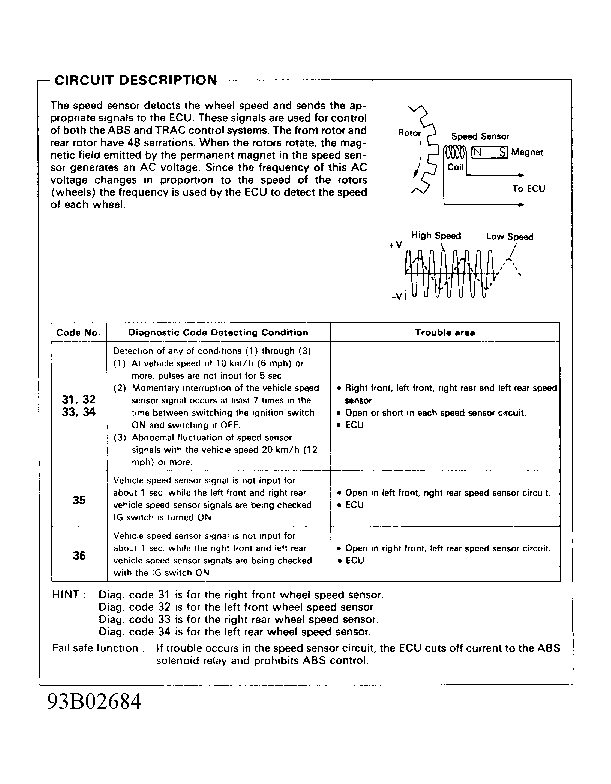

Fig 1: Codes 31-36 - Speed Sensor Circuit (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Codes 31-36 - Speed Sensor Circuit (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

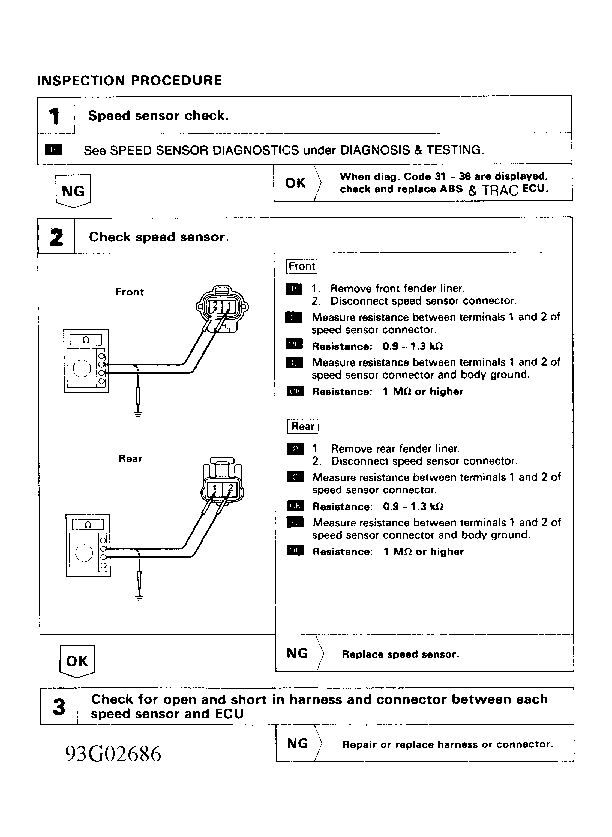

Fig 3: Codes 31-36 - Speed Sensor Circuit (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
