DTC 41 - IG Power Source Circuit

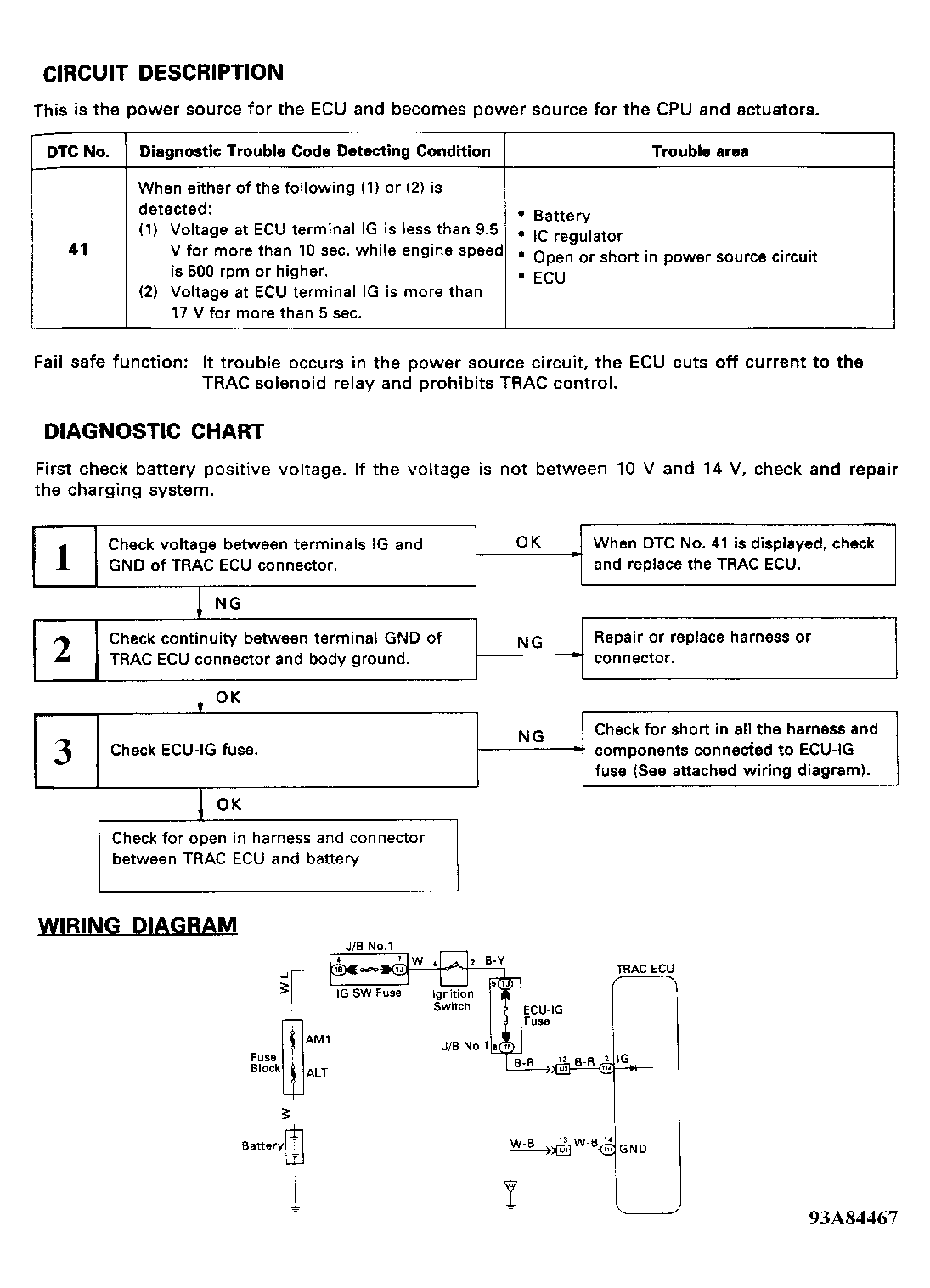

Fig 1: IG Power Source Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: IG Power Source Circuit (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: IG Power Source Circuit (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
