Traction Control System
›
Diagnostic Charts
›
TRAC Off Indicator, TRAC Cut Switch Circuit
TRAC Off Indicator, TRAC Cut Switch Circuit

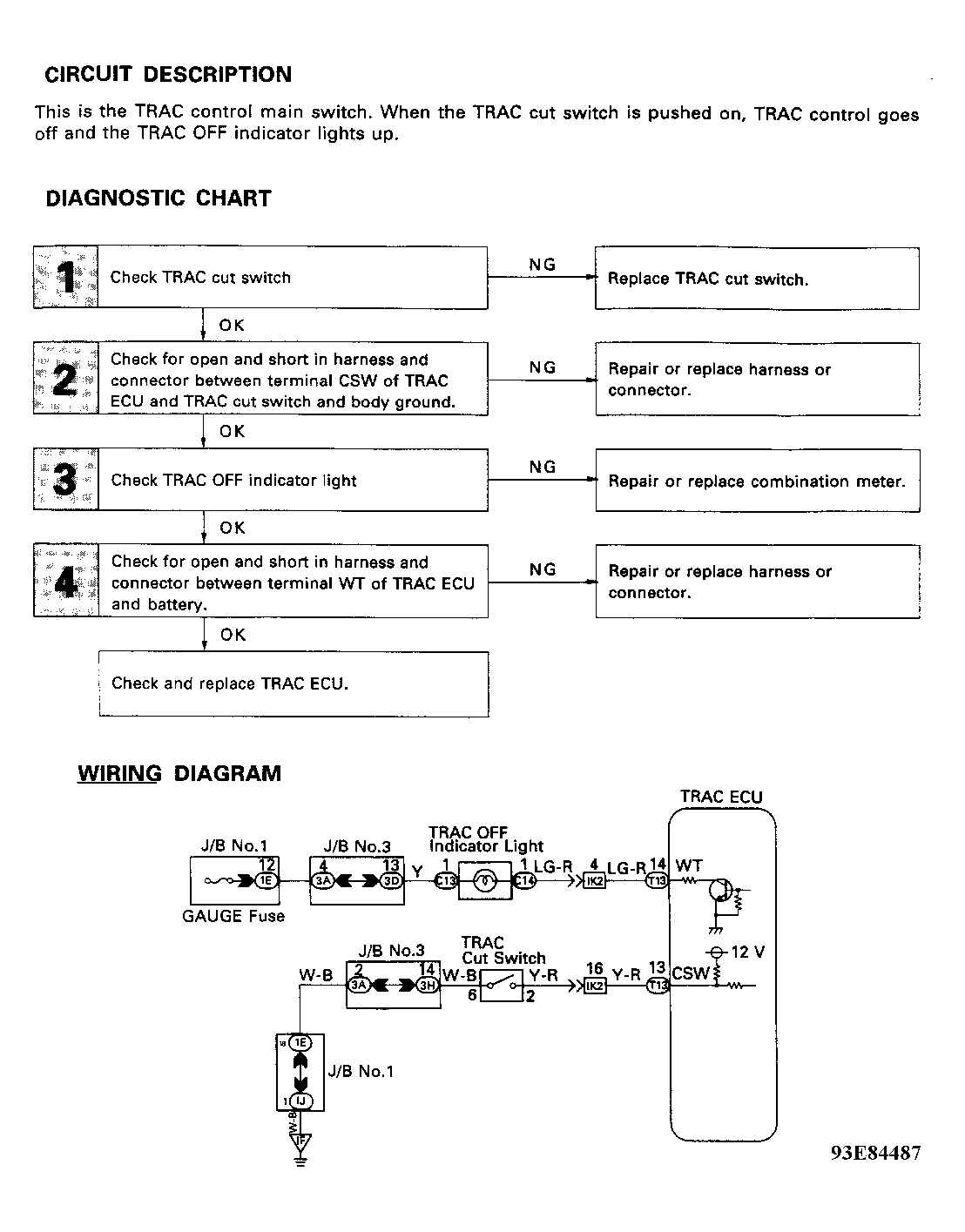

Fig 1: TRAC Off Indicator, TRAC Cut Switch Circuit (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

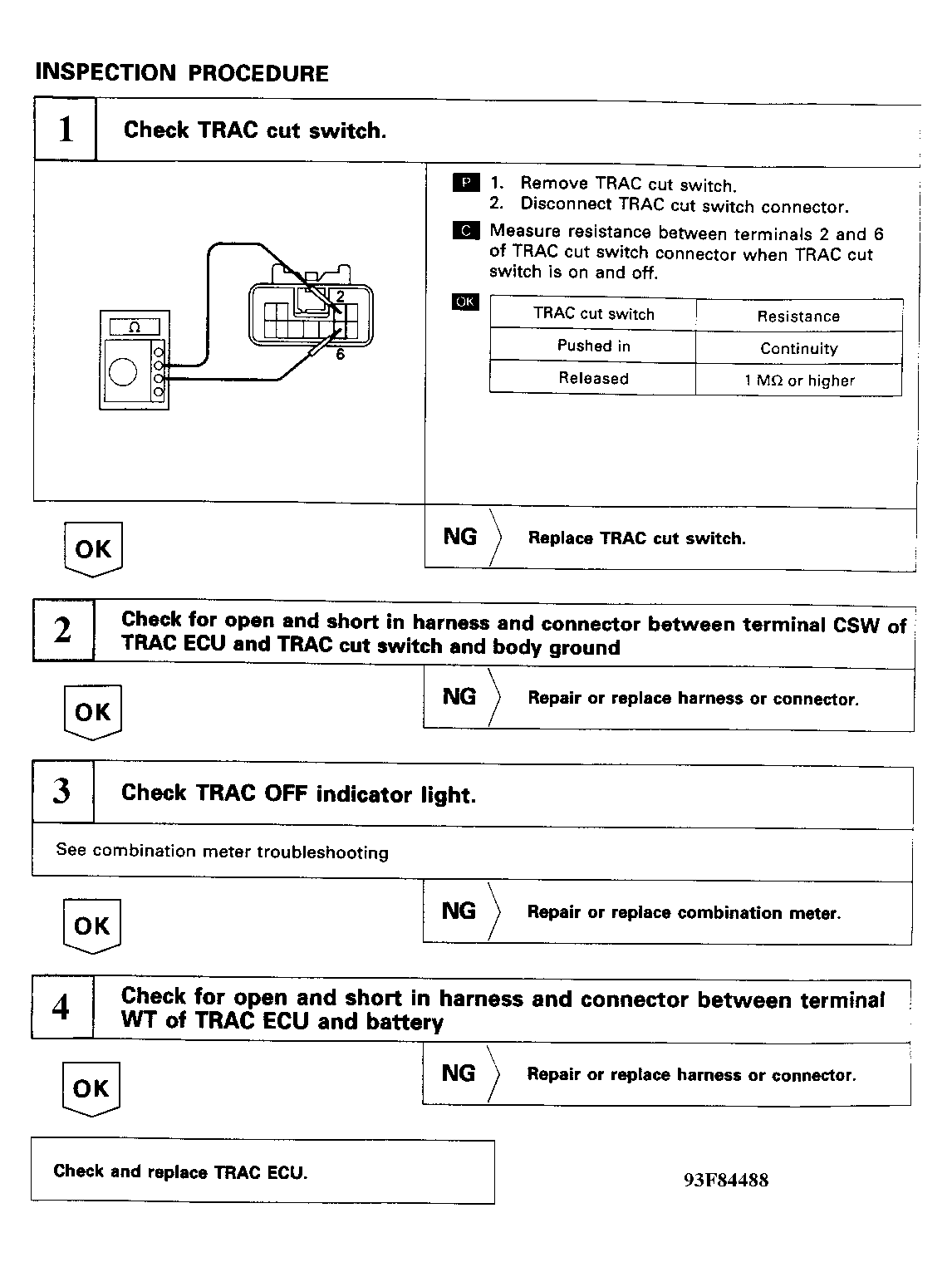

Fig 2: TRAC Off Indicator, TRAC Cut Switch Circuit (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
