Connecting Rods Specifications
CONNECTING RODS
| Application | In. (mm) | ||||
|---|---|---|---|---|---|
| Bore Diameter | |||||
| Pin Bushing Bore | .8663-.8668 (22.005-22.017) | ||||
| Crankpin Bore (1) | |||||

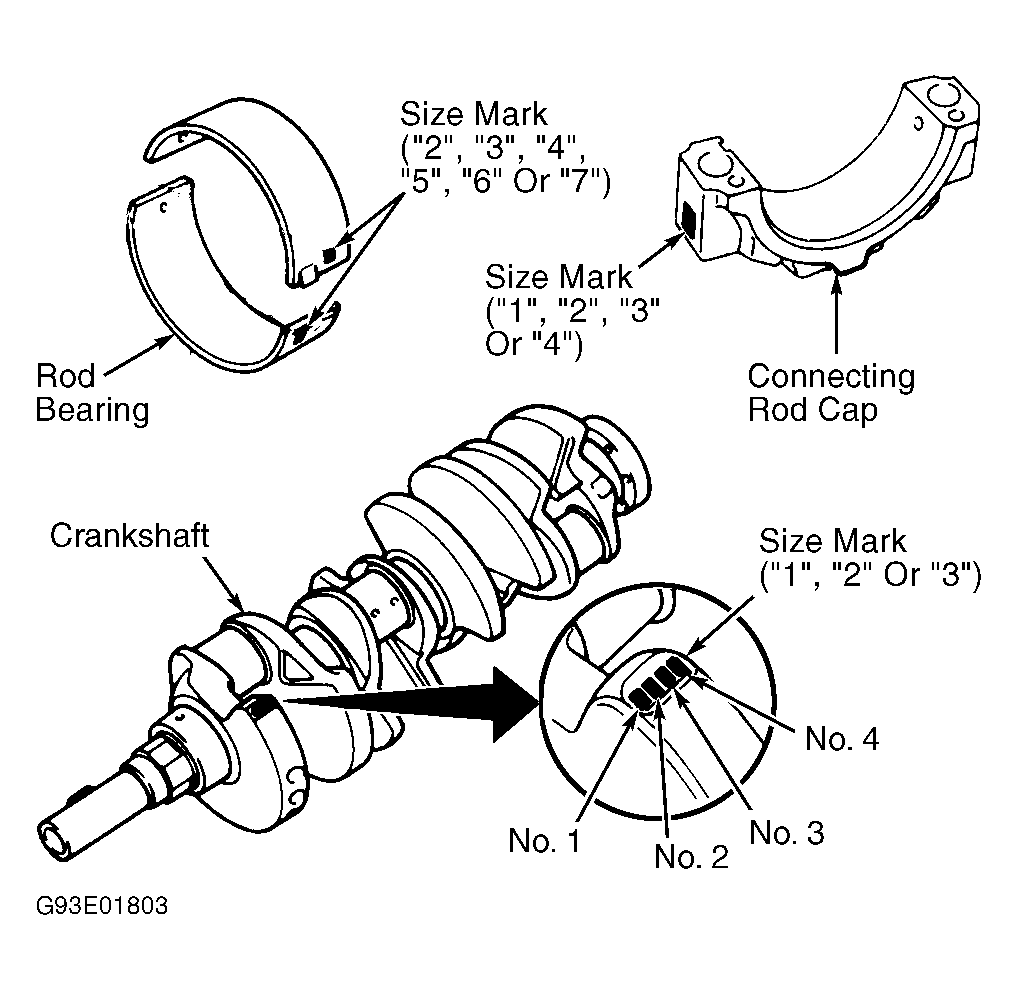

| Size Mark "1" | 2.1654-2.1656 (55.000-55.006) | ||||
| Size Mark "2" | 2.1656-2.1658 (55.006-55.012) | ||||
| Size Mark "3" | 2.1658-2.1661 (55.012-55.018) | ||||
| Size Mark "4" | 2.1661-2.1663 (55.018-55.024) | ||||
| Maximum Bend | .0020 Per 3.94 (.050 Per 100.1) | ||||
| Maximum Twist | .0059 Per 3.94 (.150 Per 100.1) | ||||
| Side Play | |||||
| Standard | .0063-.0114 (.160-.290) | ||||
| Wear Limit | .0138 (.350) | ||||
|
|||||
